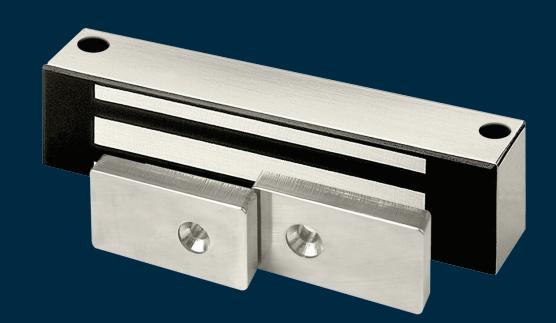

M32-SS Split Strike Magnalock®

Double-door cabinet control

Now you can add asset control to your existing access control system with the durable, powerefficient M32-SS.

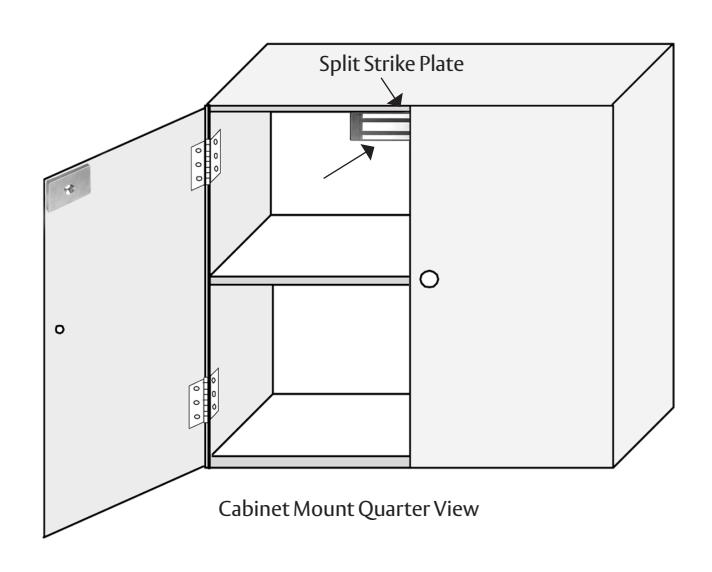

Each strike plate of the M32-SS delivers 300 lbs of holding force (600 lbs total). Ideal for securing large two-door cabinets, retail cases or double-door, indoor/outdoor storage applications with out-swinging doors that share a center latching point.

Features

Standard Features

• Direct mount with common tools for strength and reliability
• For 5/8" to 7/8" [15.875mm to 22.225mm] thick cabinet doors
• Efficient, low power usage
• Noise suppression with included MOV
• Instant release circuit — no residual magnetism
• Fully sealed and for weather-proof operations
• Rust resistant all ferrous metal surfaces plated for durability
• 10 ft. [3.05m] of jacketed, stranded conductor cable
• MagnaCare® lifetime replacement, no-fault, no questions asked warranty

Optional Features

• B BondSTAT® magnetic bond sensor — Patented (MBS)
• Use with CWB-32 bracket for mounting option on wood or concrete

Specifications

Electrical

• Dual voltage 12/24 VDC
• 300 mA at 12 VDC / 150 mA at 24 VDC

Holding Force

• Static Strength 600 lbs (300 lbs per strike)

Environmental

• Operating Temperature: 40° to 140°F [-40° to 60°C]
• Indoor or outdoor use

Shipping Weight

• 6 lbs [2.72kg]

How to Order

MODEL SERIES	MONITORING OPTIONS	STRIKE PLATE OPTIONS
M32	B	-SS
M32 (600 lbs)	(blank) No Monitoring	(blank) Standard Strike
	B BondSTAT Monitor	SS Split Strike

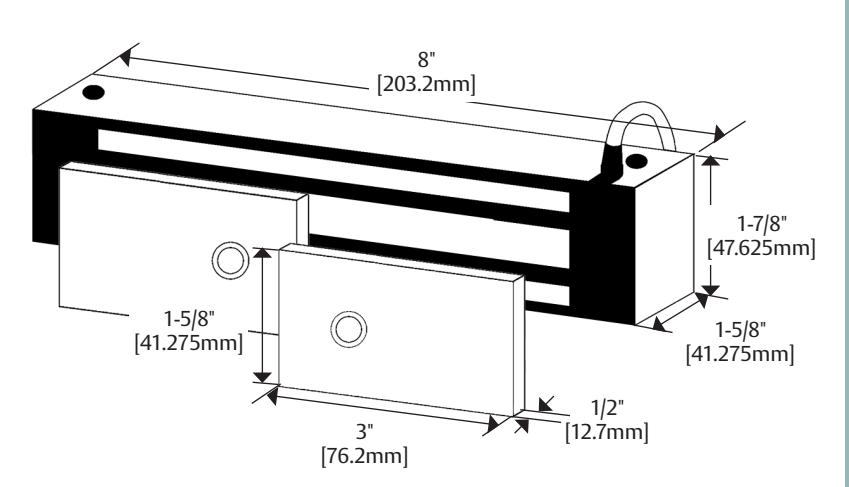

Dimensions

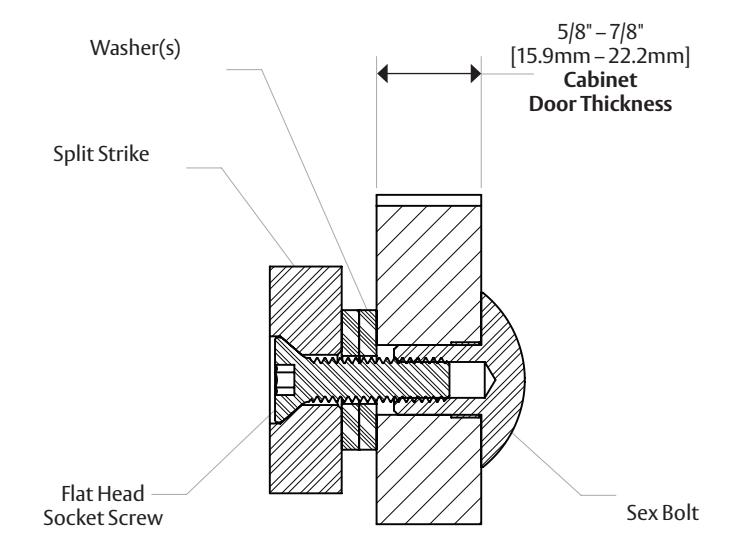

Includes a shortened sex bolt for use on typical 3/4" MDF cabinet doors
