Securitron GL1 Gate Locks Template
Open the original PDF document
View PDF
-

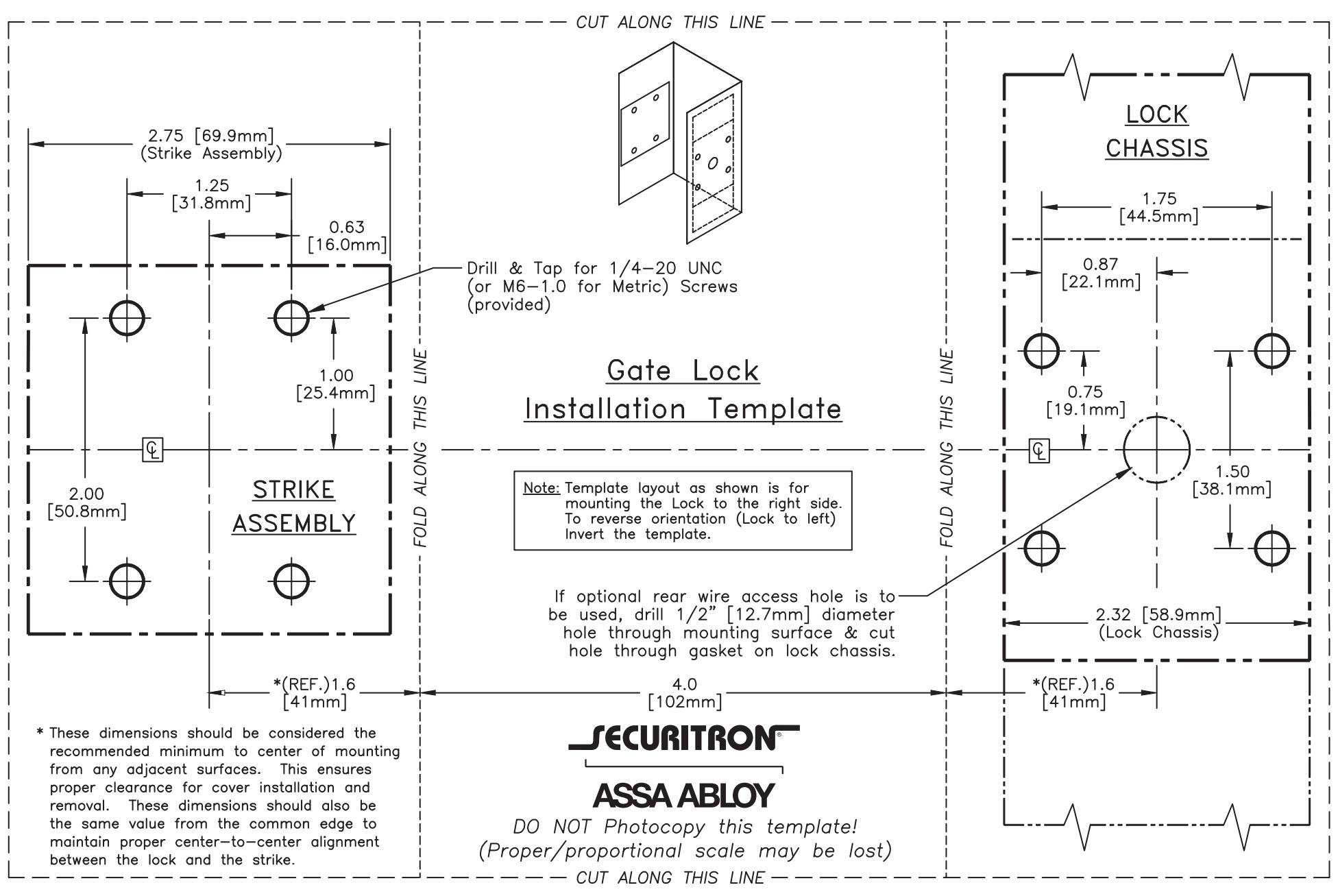

INSTRUCTIONS: 1. Refer to product installation and operating instructions for additional guidance and mounting details.
- 2. Cut out template and fold at indicated lines. (Lock & strike hole pattern layouts may be cut out separately on the fold lines and used independently as long as center alignment is maintained).
- 3. Close gate and verify 4.0" [102mm] distance between the lock and strike mounting surfaces.
- 4. Position template orienting the lock chassis and strike assembly hole patterns over their mounting surfaces as desired.
- 5. Mark hole centers and center punch for drill point index.
- 6. Drill holes for mounting as required.
