Securitron GL1 Gate Locks Quick Start Installation Instructions

GL1 QUICK START GUIDE

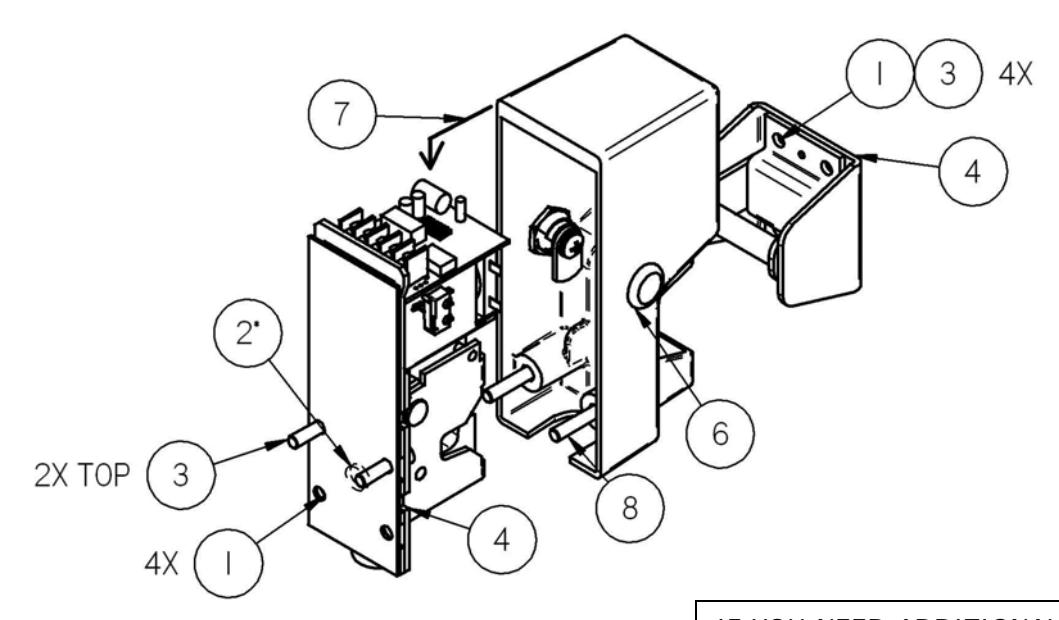

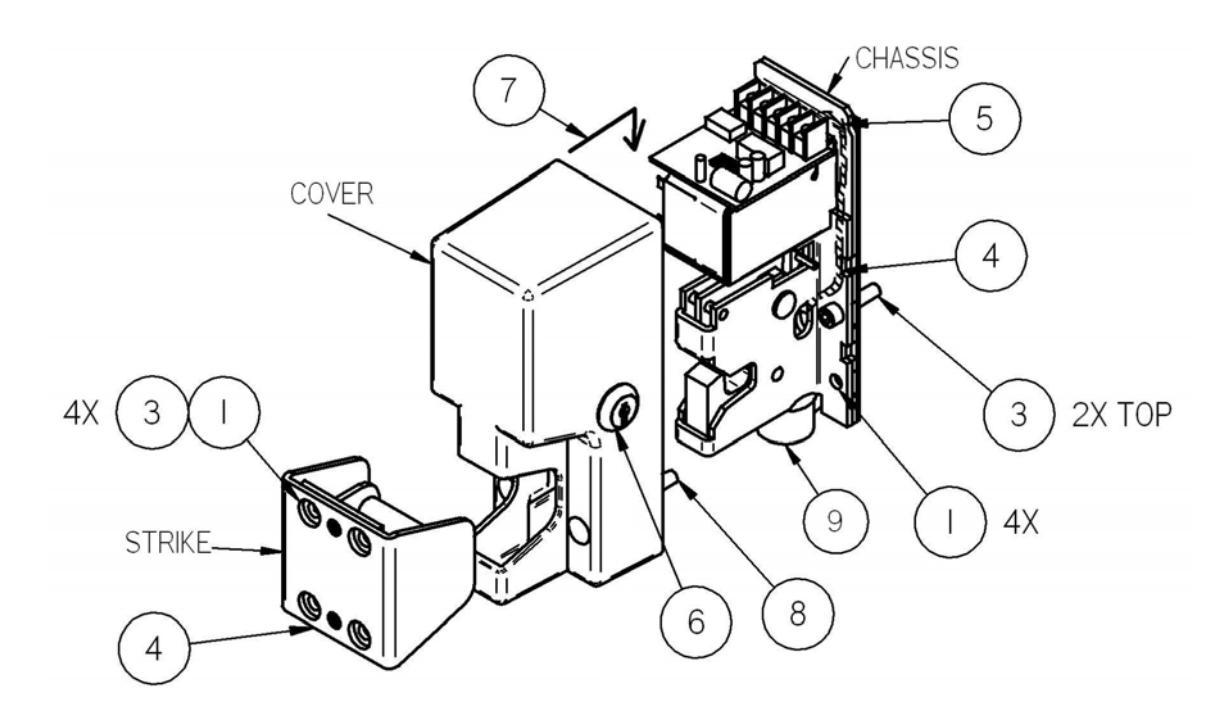

• 1) USE SUPPLIED TEMPLATE TO LOCATE AND INSTALL MOUNTING HARDWARE
• 2) CUT THRU GASKET FOR REAR WIRE HOLE ACCESS IF REQUIRED
• 3) INSTALL MOUNTING SCREWS TOP CHASSIS HOLES ONLY!
• 4) WELD WITHIN PROVIDED CHASSIS SLOTS AND/OR STRIKE PLATE EDGES
• 5) ROUTE AND CONNECT WIRING VERIFY OPERATION OF THE LOCK AT THIS POINT
• 6) INSTALL CAMLOCK AND PLUG IN COVER
• 7) INSTALL COVER OVER TOP AND SLIDE DOWN INTO POSITION
• 8) INSTALL COVER SCREWS
• 9) PLUG CONDUIT FITTING IF NOT USED, WELD PLUG FOR MAXIMUM SECURITY

IF YOU NEED ADDITIONAL HELP REFER TO TROUBLESHOOTING GUIDE ON PAGES 14-15 OF "INSTALLATION AND OPERATING INSTRUCTIONS"
