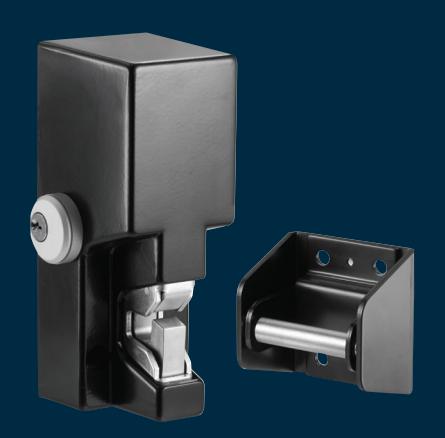

GL1 Gate Lock

Electromechanical gate solution offers one ton of holding power

The heavy duty GL1 Electromechanical Gate Lock provides weather-resistant access control for a wide range of gate applications.

The GL1 provides 2,000 lbs of holding force for electrical and manually operated indoor or outdoor gates where preload is a concern. Ideal for swinging or sliding vehicle, pedestrian or stock gate access control.

Features

Standard Features

• 2,000 lbs holding force
• Operates under preload up to 100 lbs
• Automatic dual-voltage no field adjustment required
• Accepts a standard mortise cylinder with Adams Rite MS cam for manual key override (not included, see spacer guide below)
• Self-aligning receiver (+/- 1/2" [12.7mm] horizontally) helps compensate for gate misalignment and sag
• Tamper resistant cast housing
• Optional latch status monitor
• Surface mount
• SecuriCare three-year, no-fault, no questions asked warranty

Optional Features

• FL Fail locked
• FS Fail safe
• M Monitoring option

Mortise Spacer Guide

CYLINDER LENGTH	SPACER REQUIRED
1" [25.4mm]	1/4" [6.35mm]
1-1/8" [28.5mm]	3/8" [9.5mm]
1-1/4" [31.75mm]	1/2" [12.7mm]

Specifications

Certifications

• UL 294 Listed

Electrical

• 12 Volts Initial ( Peak ): (~1.0 sec.) at 870 mA — Reduced: 290 mA
• 24 Volts Initial ( Peak ): (~1.0 sec.) at 720 mA — Reduced: 170 mA

Holding Force

• 2,000 lbs [907kg]

Operating Temperature

• -58˚ to 167˚F [-50˚ to 75˚C]
• Indoor or outdoor use

Shipping Weight

• 6 lbs [2.72 kg]

How to Order

MODEL SERIES	LOCK FAIL STATE	MONITORING OPTIONS
GL1	– FS	M
GL1	FL Fail Locked (Fail Secure)	(blank) No Monitoring
	FS Fail Safe	M Monitored

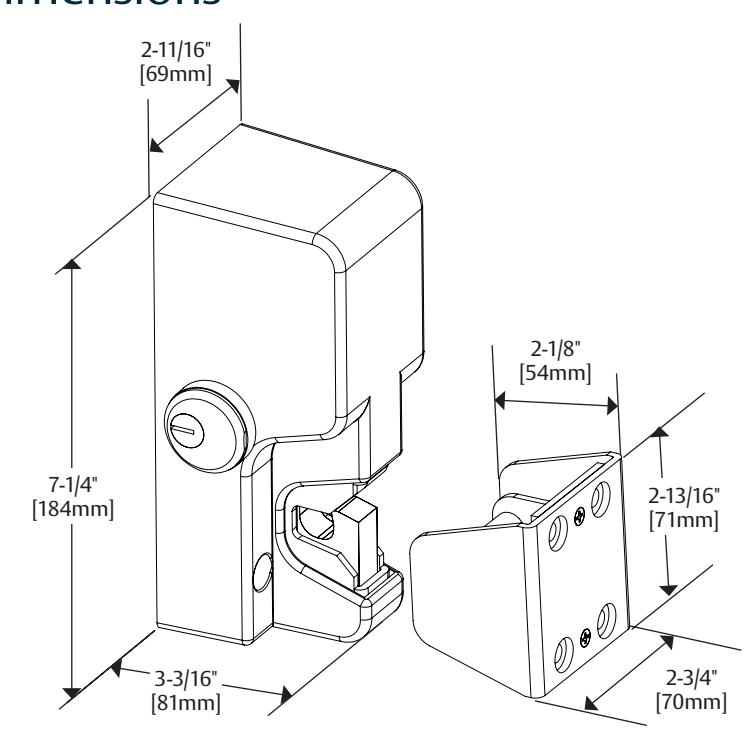

Dimensions

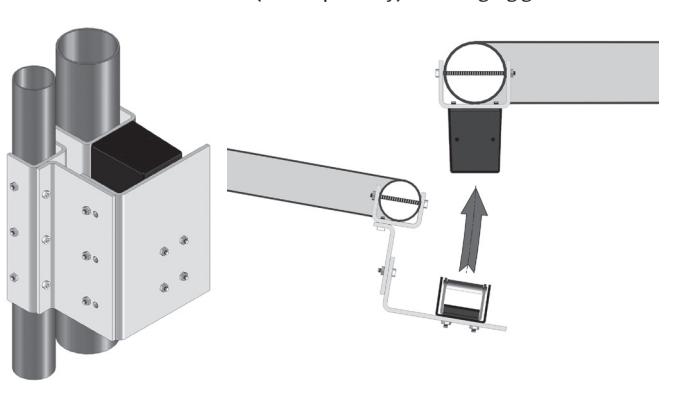

Sliding Gate GL1 with FMK-SL (sold separately) for sliding gates

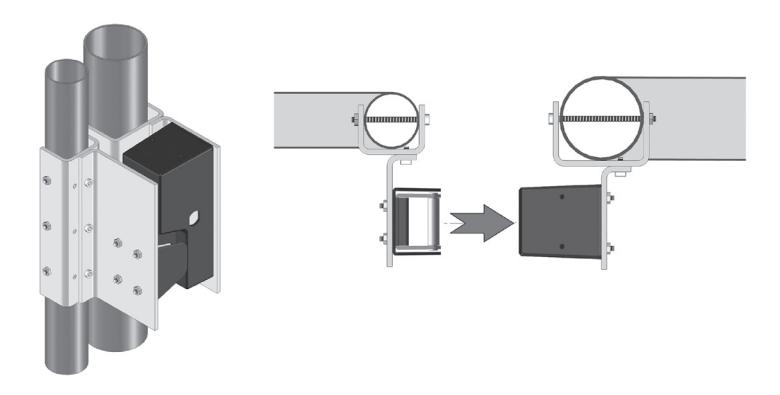

GL1 with FMK-SW (sold separately) for swinging gates Swinging Gate
