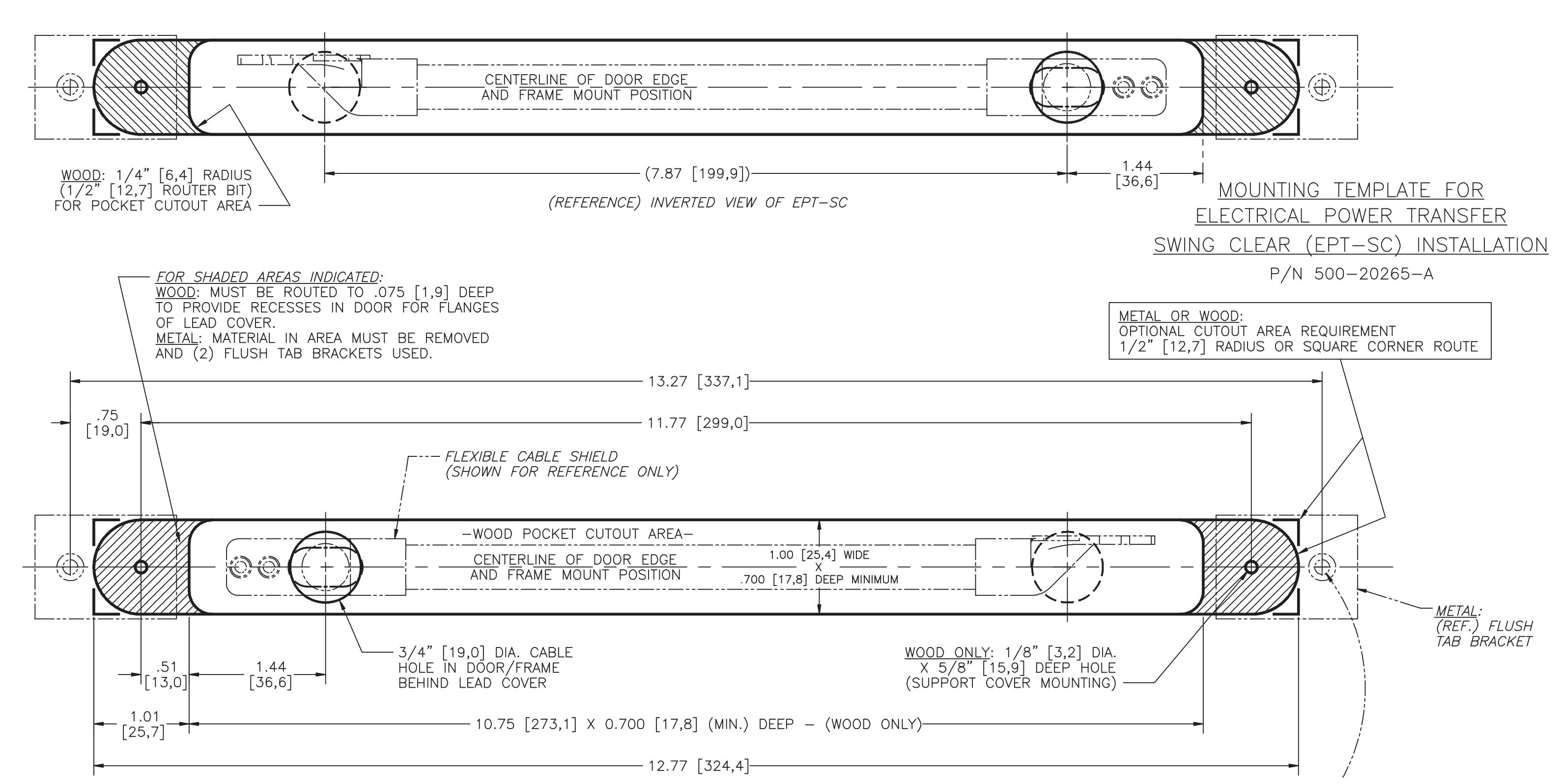

Securitron EPT-SC Power Transfer Template

DOOR AND FRAME PREPARATION INSTRUCTIONS:

• 1. MARK CENTERLINE ON DOOR AT DESIRED INSTALLATION ELEVATION FROM FLOOR. (SEE PRODUCT INSTRUCTION MANUAL FOR DETAILED INSTALLATION PROCEDURE).
• 2. MEASURE DISTANCE FROM DOOR CENTERLINE TO EDGE OF HINGE AND TRANSFER (MARK) CORRESPONDING CENTERLINE ON THE DOOR FRAME AS INSTRUCTED IN THE INSTALLATION MANUAL.
• 3. POSITION TEMPLATE INTO PLACE OVER EACH MARKED CENTERLINE AND MARK THE SLOT CUTOUT AND MOUNTING HOLES AS REQUIRED FOR WOOD OR METAL CONSTRUCTION. NOTE: CENTERLINE AND VERTICAL POSITION OF THE PREP. ON THE FRAME SHOULD MATCH THAT OF THE DOOR PREP. WHEN THE DOOR IS CLOSED! (SEE INSTALLATION MANUAL FOR SPECIFIC WOOD/METAL PREP. MOUNTING DETAILS).
• 4. PERFORM DOOR PREP. BY ROUTING/CUTTING/DRILLING DOOR AND FRAME, THEN INSTALL EPT-SC AS DIRECTED BY INSTALLATION MANUAL.

GENERAL NOTES:

• 1. DIMENSIONS WITHIN BRACKETS [XX,X] REPRESENT METRIC MEASUREMENT IN MILLIMETERS.
• 2. REFER TO THE PHYSICAL INSTALLATION SECTION OF THE EPT—SC INSTALLATION INSTRUCTIONS FOR DETAILED INSTALLATION INFORMATION AND TROUBLESHOOTING.
• THE RELATIONSHIP BETWEEN THE (2) FACE MOUNTING HOLES IS CRITICAL. DO NOT LET MARKINGS OR DRILLING WANDER.
• 4. DO NOT OVER TIGHTEN THE MOUNTING SCREWS.
• 5. DO NOT PHOTOCOPY THIS TEMPLATE !!! (SCALE MAY BE AFFECTED)

METAL NON-PREPPED DOORS ONLY: (FLUSH TAB BRACKET MOUNTING)

• 1. DRILL 5/32" [4,0] DIA. THRU DOOR EDGE.
• 2. 82-DEGREE COUNTERSINK THE HOLE TO APPROXIMATELY .28 [7,1] BODY DIAMETER FOR PROPER FLUSH SCREW MOUNTING. (2 PLACES EACH PREP.)
