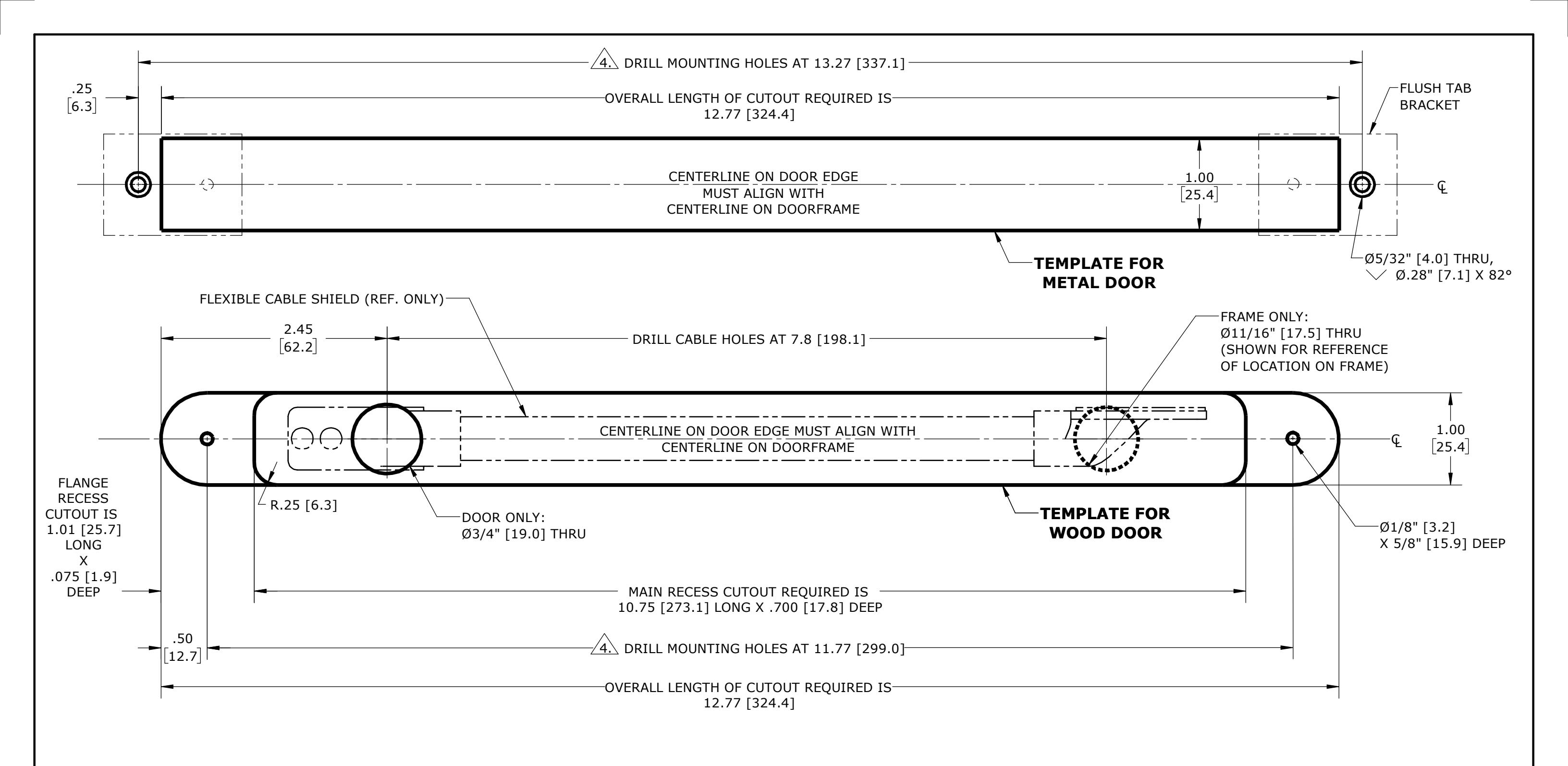

Securitron EPT-SC Installation Template

NOTES: (UNLESS OTHERWISE SPECIFIED)

• 1. FOR DOOR AND FRAME PREPARATIONS, REFER TO THE EPT-SC INSTALLATION INSTRUCTIONS.
• 2. DO NOT PHOTOCOPY THIS TEMPLATE (SCALE MAY BE AFFECTED).
• 3. ALL DIMENSIONS ARE IN INCHES, AND DIMENSIONS WITHIN BRACKETS [XX.X] ARE IN MILLIMETERS.

4. THE RELATIONSHIP BETWEEN THE (2) FACE MOUNTING HOLES IS CRITICAL. DO NOT LET MARKINGS OR DRILLING WANDER.

5. DO NOT OVER TIGHTEN THE MOUNTING SCREWS.

TEMPLATE: EPT-SC INSTALLATION P/N 500-20265 REV 2
