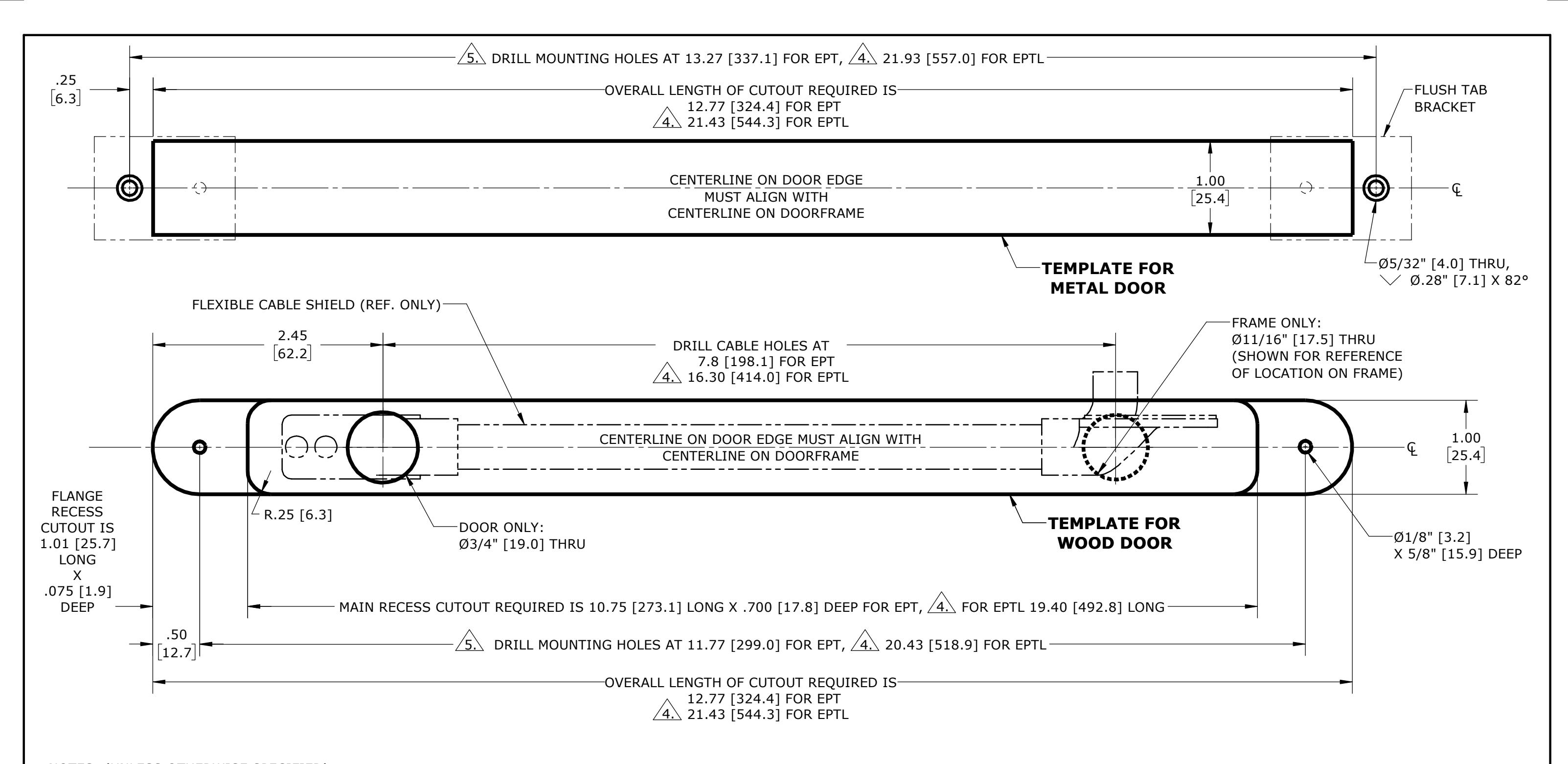

Securitron EPT Power Transfer Template

NOTES: (UNLESS OTHERWISE SPECIFIED)

• 1. FOR DOOR AND FRAME PREPARATIONS, REFER TO THE EPT/EPTL INSTALLATION INSTRUCTIONS.
• 2. DO NOT PHOTOCOPY THIS TEMPLATE (SCALE MAY BE AFFECTED).
• 3. ALL DIMENSIONS ARE IN INCHES, AND DIMENSIONS WITHIN BRACKETS [XX.X] ARE IN MILLIMETERS.

4. TEMPLATE IS SPECIFICALLY FOR THE EPT. IF THE EPTL IS REQUIRED, EXTEND THE CUTOUT LENGTH AND LOCATION OF HOLES AS INDICATED.

5. THE RELATIONSHIP BETWEEN THE (2) FACE MOUNTING HOLES IS CRITICAL. DO NOT LET MARKINGS OR DRILLING WANDER.

6. DO NOT OVER TIGHTEN THE MOUNTING SCREWS.

TEMPLATE: EPT/EPTL SERIES INSTALLATION P/N 500-20260 REV 4
