SECURITRON DSB-TDM DUAL SENSE BAR - THROUGH DOOR MOUNT KIT INSTALLATION INSTRUCTIONS

1. PRODUCT DESCRIPTION

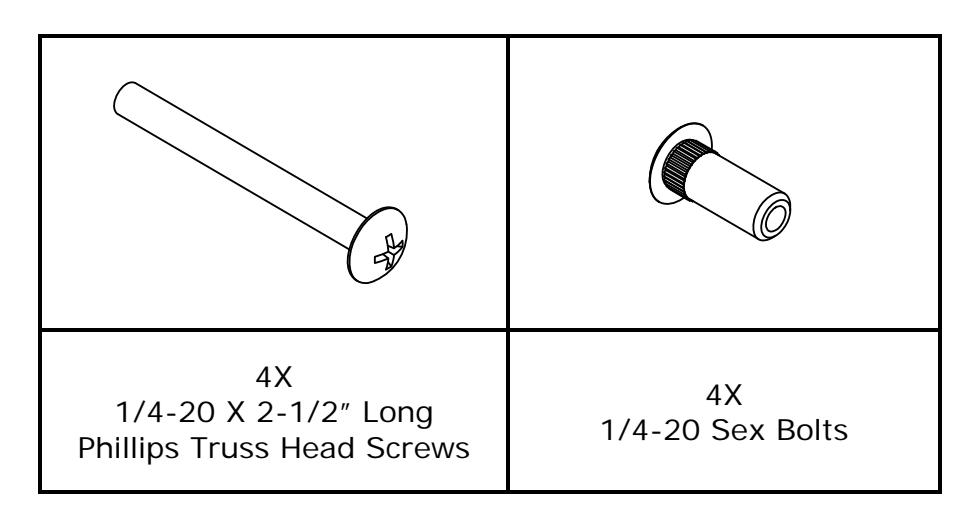

The DSB-TDM kit has been developed to provide the necessary components to create a very secure through-the-door attachment of the DSB to a solid wood or hollow metal door. Along with these instructions, the kit should include the following items:

2. RECOMMENDED TOOLS

Power Drill Drill Bits: 9/32" [7.0mm] and 3/8" [9.5mm]

Center Punch Screwdriver: #2 or #3 Phillips

3. INSTALLATION INSTRUCTIONS Screws DSB *Plastic Washers Sex Bolts

3.1. BAR POSITIONING AND MOUNTING HOLE MARKING

All marking and door preparation should be done using the DSB Series product installation and operation instruction manual.

^* The plastic washers shown are provided with the original DSB hardware.

3.2. BOLT THROUGH DOOR PREPARATION:

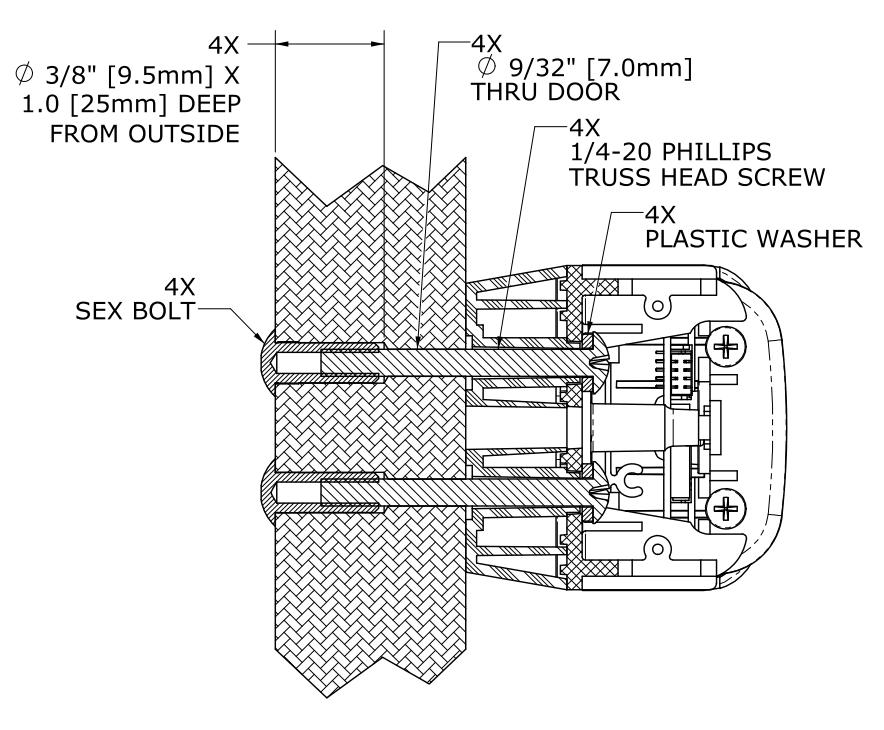

Figure 1 illustrates a section view of the through door mount (on a solid wood door). This configuration may be used on solid wood doors, hollow or solid metal doors, or chalk filled *fire doors.

*Note: The Dual Sense Bar may not be used on a fire rated door that requires a fire rated latch! The DSB has no latch. Occasionally however, fire doors are permitted on openings where a fire rated barrier is not required. Use of the DSB should always be verified and approved through local building code and/or fire prevention agencies.

Figure 1

Note: Ensure that the four (4) plastic washers provided with the DSB unit are used inside the end mount assemblies at each end of the bar. The DSB touch sense will not function correctly without these (non-conductive) plastic washers.

PN# 500-22900 Page 2 Rev. D, 08/11
