Features and Benefits

• • 1/8" mechanical movement and ultra-reliable touch sense technology working together in a single exit bar
• • Touch sensing and redundant movement-activated switches complies with current fire and life safety egress codes
• • Uses same mounting pattern as the TSB-3
• • Circuit board is immune to electrostatic discharge switching power supplies, proximity and garment readers and neon signs
• • Bounce resistant to false triggering from outside impact

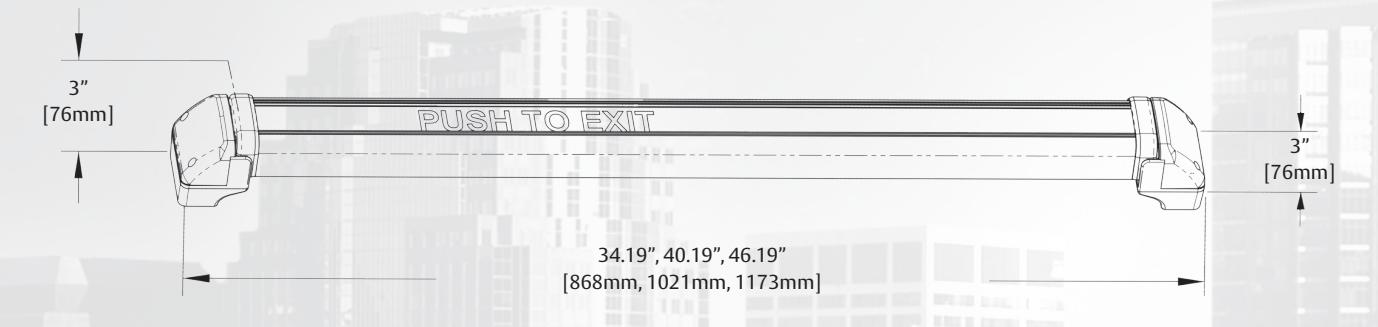

• • 3 standard lengths: 36", 42", or 48"
• • All metal construction will handle the toughest interior environments
• • Like the TSB-3, the DSB allows field cutting to fit non-standard door widths

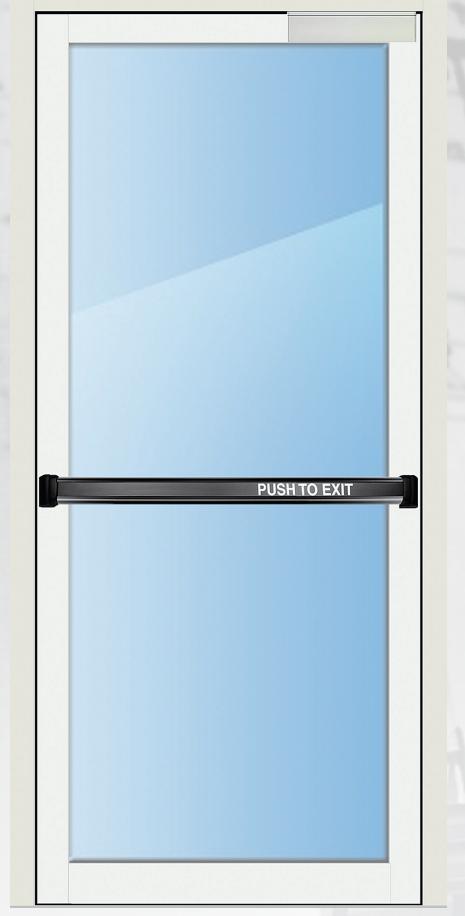

• • DSB options include illuminated "Push To Exit" via internal fiber optic strip and MicroShield™ anti-microbial coating for superior germ resistance
• • 16 ft. [4.8m] 22AWG 6 conductor cable and stainless steel armored door cord are included
• • Available ElectroLynx™ ready
• • Operates on either 12 or 24 VDC
• • Tested to 27,000 volts electrostatic discharge
• • UL Listed

Specification Data

Current Draw:

Dual Sense Bar Only - 24mA Dual Sense Bar with Illumination - 44mA

Voltage: 12 or 24 VDC

Operating Temperature: +32 to +120F [0 to +49C] Shipping Weight: 6 to 8 lbs. depending on length Warranty: MagnaCare Lifetime Replacment Warranty

ElectroLynx ™ , a system of universal Molex ™ plug-in connectors and standardized color-coded wiring, makes installing electrified doorway components a snap! Pre-wired doors, frames and hardware mean that installation is fool-proof and future-proof.

MicroShield™ is a revolutionary new hardware finish coating that permanently suppresses the growth of bacteria, algae, fungus, mold and mildew. MicroShield™ is ideal for countless hardware applications where vigilance in the war against bacteria and mold is critical, including healthcare facilities, laboratories, restaurants, offices, schools, and daycare facilities. MicroShield™ is available on locks and other high touch hardware, and lasts for the life of the hardware.
