DM62 Magnalock®

The ultimate 1,200 lbs holding force Magnalock double magnet for indoor/outdoor high security

The versatile DM62 electromagnetic lock offers strength and ease of maintenance for interior, perimeter and exterior access control—in a compact double magnet.

This all-in-one unit is designed for double doors with no mullion. With unsurpassed durability, the DM62 will last long after most buildings wear out.

Features

Standard Features

• Ultra-secure collapsing blind nuts mount to door frame for strength and reliability
• Fully sealed for weather resistant operations
• 3' [1 m] of jacketed, stranded conductor cable for each lock
• Automatic dual-voltage —no field adjustment required
• Instant release circuit —no residual magnetism
• Noise suppression with built-in MOV
• Efficient, low power usage
• Rust resistant all ferrous metal surfaces plated for durability
• MagnaCare® lifetime replacement, no-fault, no questions asked warranty

Optional Features

• B Patented BondSTAT magnetic bond sensor
• D Integrated door position switch (DPS)
• OS Offset strike plates

Specifications

Certifications

• UL 10C Listed
• CAN4-S104, CAN/ ULC-S533 Listed
• ANSI/BHMA A156.23, Grade 2; E08511-1000 Compliant
• CSFM- California State Fire Marshal Approved

Electrical (Per Lock)

• 250 mA at 12 VDC
• 150 mA at 24 VDC

Holding Force (Per Lock)

• 1,200 lbs [544kg]

Operating Temperature

• -40˚ to 140˚F [-40˚ to 60˚C]
• Indoor or Outdoor use

Shipping Weight

• 16 lbs [7.26kg]

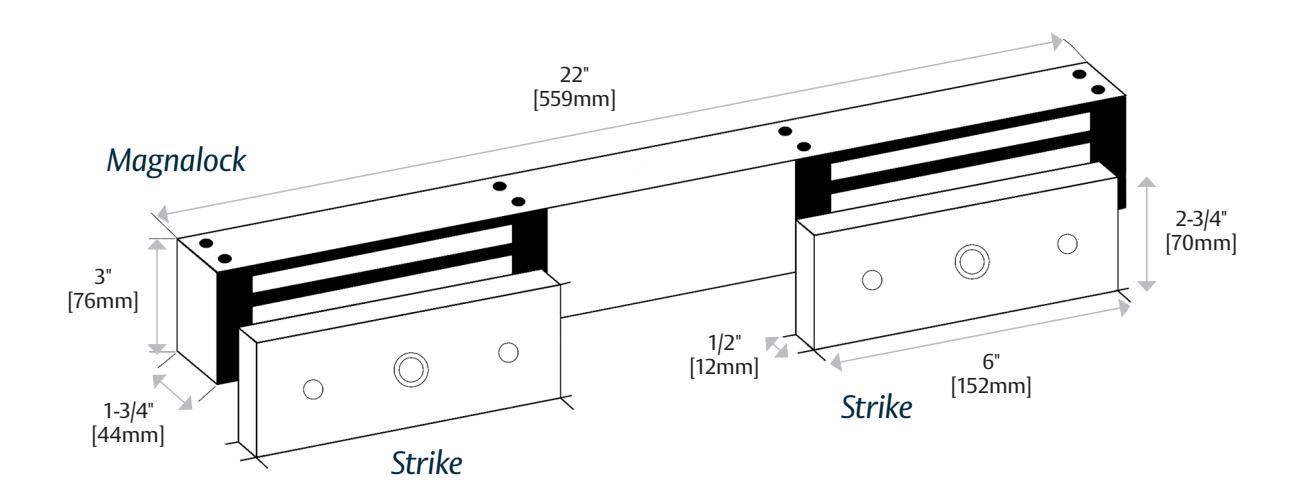

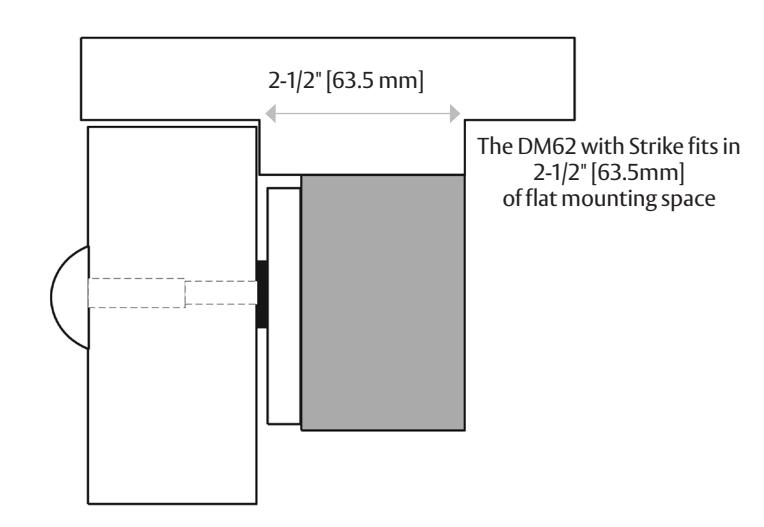

Dimensions

How to Order

MODEL SERIES	MONITORING OPTIONS	STRIKE PLATE OPTIONS
DM62	BD	– OS
DM62	(blank) No Monitoring	(blank) Standard Strike
	B BondSTAT Monitor	OS Offset Strike
	D Door Position Switch
