DK-26 Digital Keypad System

Digital control system for narrow stile outdoor applications

The DK-26 digital keypad system provides medium/ high security control of electric locks in one- or two-door applications where doors have the same control needs.

The fully weatherproof, rugged stainless steel keypad can be mounted in most outdoor environments. Encased in a separate enclosure for secure installation, the full-featured, easy-to-program, DK-26 is ideal for narrow stile applications.

Features

Standard Features

• Cast stainless steel with 11 EPDM rubber keys
• Weatherproof and vandal resistant
• Mounts on a narrow mullion
• Audible keystroke echo
• True 10-key operation (keys are not paired)
• 59 users with multiple entry codes
• User code and hard code disable feature
• Passage Mode and Lockout Mode
• Request to exit (REX) input
• 16 ft. [4.8m], 12 conductor, 22 gauge keypad cable
• MagnaCare® lifetime replacement, no-fault, no questions asked warranty

Optional Features

• Keypad available as system or separately

Specifications

Certifications

• CE : EN 50091-1, EN 61000-6-2 Approved

Electrical

• 12 VAC/VDC: 7 mA at rest; 160 mA active
• 24 VAC/VDC: 20 mA at rest; 190 mA active

Operating Temperature

• CPU: 32˚ to 158˚ F [0˚ to 70˚ C]
• Keypad: -22˚ to 158˚ F [-30˚ to 70˚ C] Indoor or Outdoor use

Shipping Weight

• 5 lbs [2.27kg]

Accessories

DK26-CPSS Cover Plate

• Allows DK-26 and DK-37 to be mounted over a single gang box
• MagnaCare lifetime replacement, no-fault warranty

How to Order

MODEL SERIES		SPECIAL FEATURE		FINISH
DK-26			P		BK

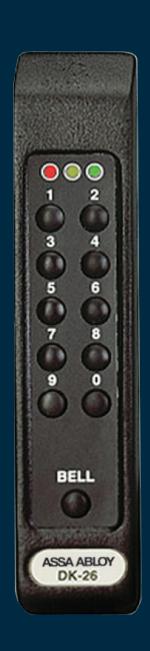

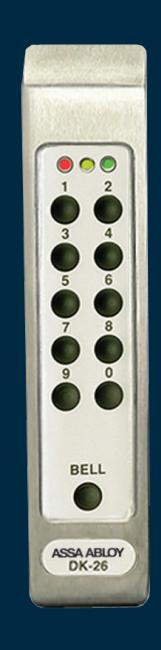

	DK-26 Keypad System		P Keypad only	BK SS	Black Anodized Stainless Steel

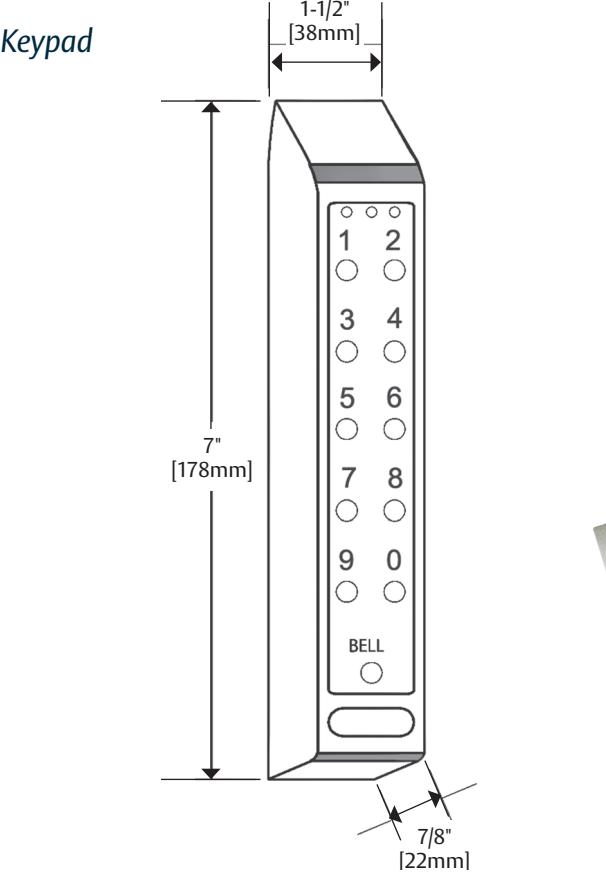

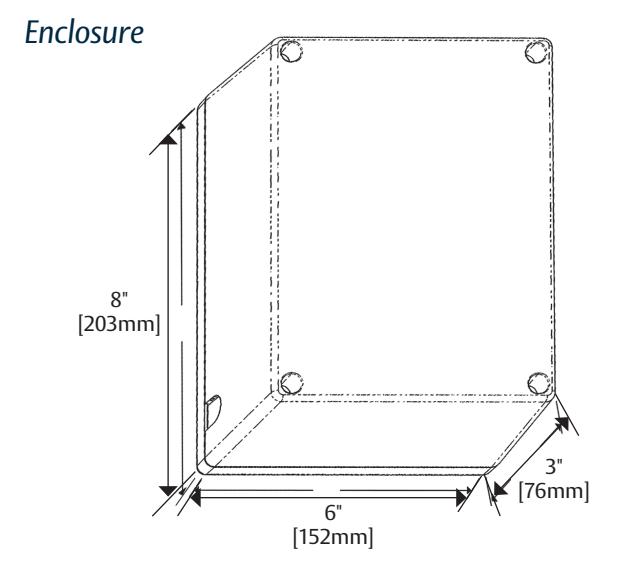

Dimensions
