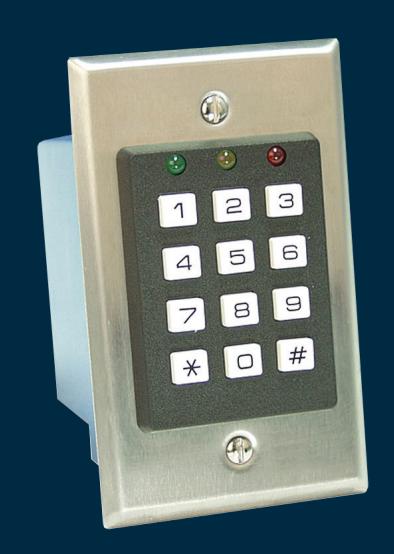

DK-16 Digital Keypad System

Secure, easy-to-program, single-door control system

The DK-16 digital keypad system provides medium/high security control of electric locks in a one- or two-door application where both doors have the same control needs.

The tamper-resistant keypad provides true ten-key operation for use and programming. Encased in a separate enclosure for secure installation in a protected area, the controller offers REX input and relay output for lock control, alarm shunt or other interfaces.

Features

Standard Features

• 12-key keypad with engraved and paint filled numbers
• Stainless steel plate
• Red, green and yellow LEDs for status and programming feedback
• Audible keystroke echo
• True 10-key operation (keys are not paired)
• 59 users with multiple entry codes
• User code and hard code disable feature
• Passage mode and Lockout mode
• Request to exit (REX) input
• 16 ft. [4.8m], 12 conductor, 22 gauge keypad cable
• US32D/630 Satin Stainless Steel finish
• MagnaCare® lifetime replacement, no-fault, no questions asked warranty

Accessories

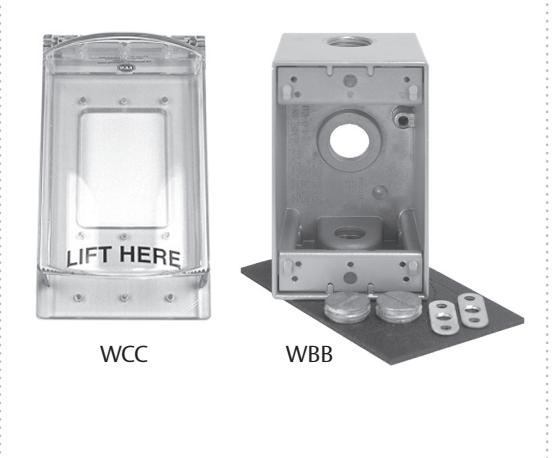

• WCC Weather-resistant cover
• WBB Weather-resistant back box
• Keypad available as system or separately

Specifications

Electrical

• 12 VAC/VDC: 7 mA at rest; 160 mA active
• 24 VAC/VDC: 20 mA at rest; 190 mA active

Operating Temperature

• CPU: 32˚ to 158˚ F [0˚ to 70˚ C]
• Keypad: 32˚ to 110˚ F [0˚ to 43˚ C] Indoor use

Shipping Weight

• Keypad and Controller: 2.8 lbs [1.25 kg]

How to Order

MODEL SERIES	SPECIAL FEATURE
DK-16	P
DK-16 Keypad System	P Replacement Keypad only

Need an Outdoor Solution?

WCC and WBB allow DK-12 to be mounted in outdoor locations not directly exposed to rain or snow.

Ordered Separately

Dimensions

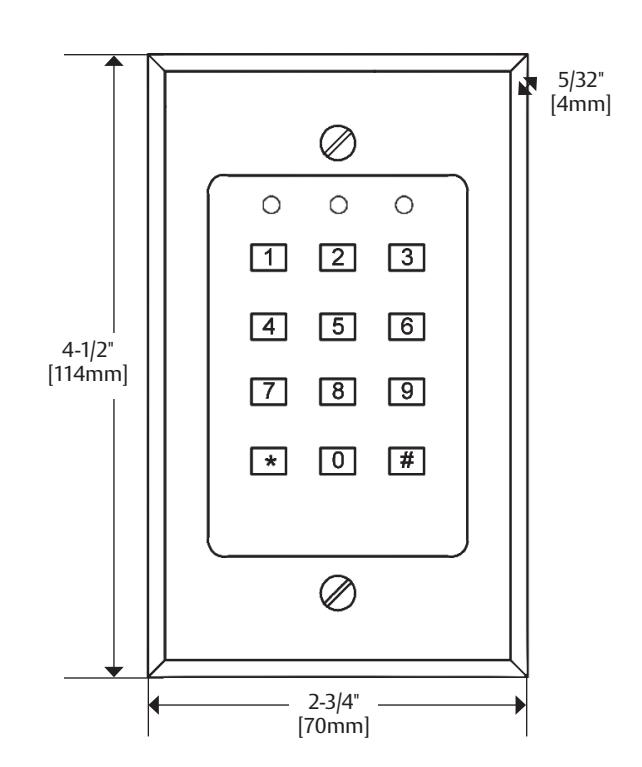

Keypad

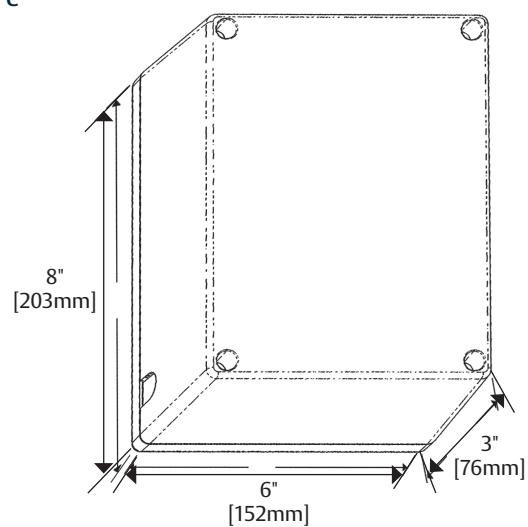

Enclosure
