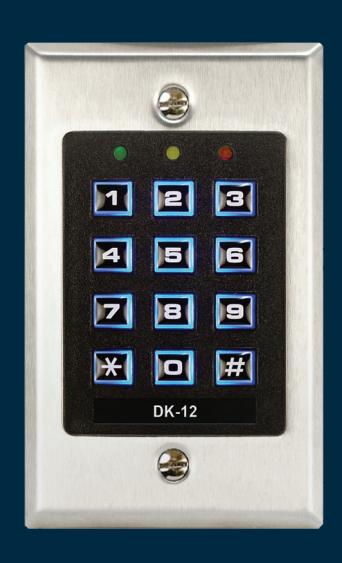

DK-12 Digital Keypad System

All-in-one keypad system for single door traffic control

The DK-12 standalone keypad is ideal for lower security applications such as traffic control.

Easy to install and to program, the one-piece DK-12 supports 99 user codes, including Passage mode and Lockout mode.

Features

Standard Features

• Single gang, stainless steel plate with low voltage mounting ring
• 12-key illuminated 3x4 keypad
• True 10-digit operation (10 digits plus * and # keys)
• 99 user code capability
• Easy programming from the keypad
• Passage mode and Lockout mode
• Configurable audible keystroke echo
• Red, green and yellow LEDs for status and programming feedback
• Fail secure or fail safe-capable
• Easy to install with simple hand tools
• 5A SPDT timed, control relay output
• Request to exit (REX) input
• Primarily for indoor applications
• US32D/630 Satin Stainless Steel finish
• MagnaCare® lifetime replacement, no-fault, no questions asked warranty

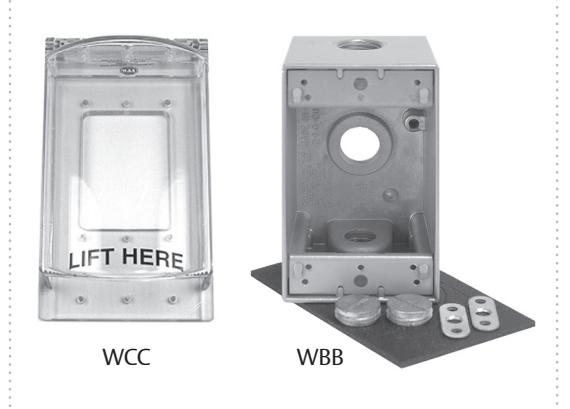

Accessories

• WCC Weather-resistant cover
• WBB Weather-resistant backbox

Specifications

Electrical

• 100 mA at 12 or 24 VDC 325 mA at 12 or 24 VAC
• Max 30 Volt input
• 5A SPDT Relay

Operating Temperature

• -10˚ to 140˚ F [-23˚ to 60˚ C]

Shipping Weight

• 1lb [0.45 kg]

Need an Outdoor Solution?

WCC and WBB allow DK-12 to be mounted in outdoor locations not directly exposed to rain or snow.

Ordered Separately

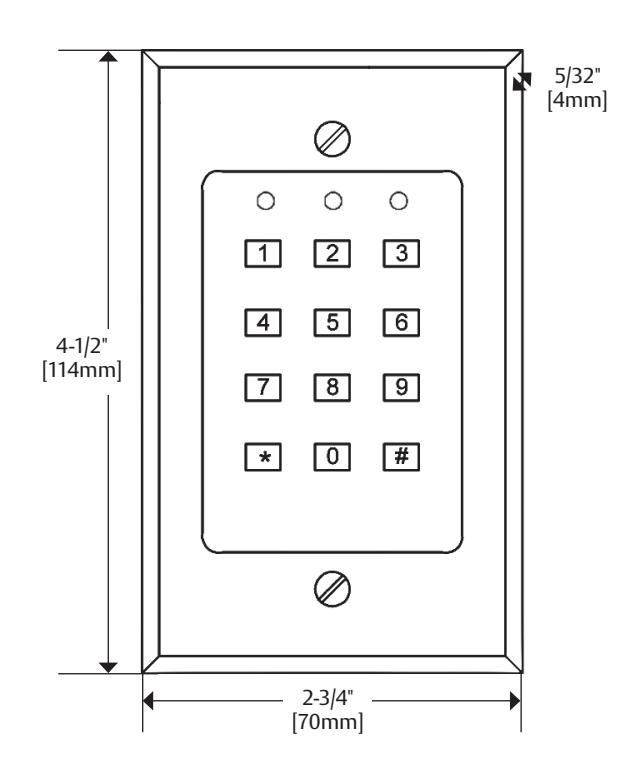

Dimensions
