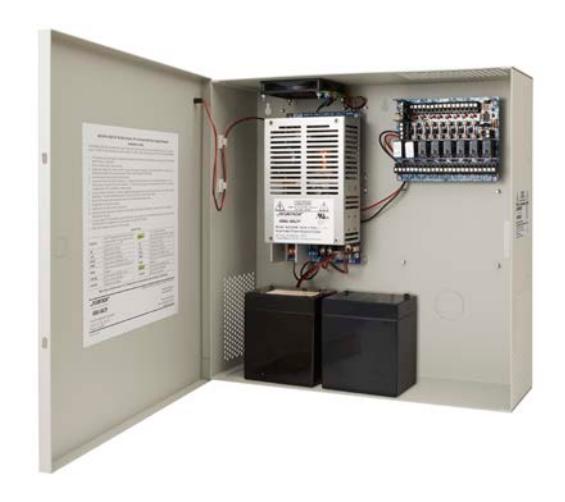

AQU244-8F8R Power Supply

The AQU244-8F8R power supply with battery charger/backup and supervision is a single voltage power supply that uses any AC power source from 90-240VAC/47-63Hz to provide up to 4 Amps @ 12VDC continuous output.

FEATURES:

• Clean, steady, accurate power output for best performance of access control equipment
• Compact modules for smaller footprint
• Universal transformer compatible with most international power
• Works in AC brownout down to 60 VAC
• Faster battery recharging under full load
• Automatic low-battery disconnect prevents deep discharge, maintains battery life
• Self-resetting circuit breakers for common conditions including:
  • o Overcurrent
  • o Thermal runaway
  • o Reverse battery hookup
• Fuse protected against surge for AC input and DC output
• Auto-sensing variable speed smart fan
• Power module has ON/OFF switch to disconnect DC output from power
• Eight (8) channel power distribution with Access Control
  • o Channels individually configurable to enable/disable with fire trigger
  • o Heavy duty relay per output with status LED, or group outputs by jumper
  • o Can provide dry contacts, Normally Open/Normally Closed selected via jumper
  • o Individual input for each output
  • o Power-limited, fuse-protected outputs, each with a green status LED indicator
  • o Main power LED indicates input power status
  • o Trigger LED indicates Fire Relay status
  • o Pluggable terminal blocks by channel and function
• SPDT Form C output for remote monitoring of trouble: AC failure, Low battery, or over voltage
• Made in USA
• MagnaCare Lifetime Replacement No Fault Warranty

SPECIFICATIONS: AQU244-8F8R

Power Module: AQU244 Access Control: -8F8R

Electrical

Input Voltage Operating Range

90-240VAC 47-63Hz

Maximum Output Voltage

120 VA

5 Amps @ 12VDC

Continuous Output Voltage

96 VA

4 Amps @ 12VDC

Voltage Range

9.8 – 13.67VDC/ 13.65 typical

Operating Frequency

23KHz

Onboard Power Output

One (1) Output with ON/OFF switch

Fuse Protection

Battery: 4 Amp

Current Overload: Fuse, self-resetting Thermal Runaway: Fuse, self-resetting

Supervision/Monitoring

AC ON LED indicator: 6mA DC ON LED indicator: 6mA

Trouble notification: SPDT Form C 200mA

120VAC

Electrical

Max board power use: 208mA

Maximum Output Per Channel

8 channels @ .5A/channel

Fuses

Size: 050 Standard 3AGC

Output: .5A

Relays

Input Relays: 20ma required for activation Output Relays: contacts rated 7A 125VAC max

Triggers

EOL: +/-60% of 2.2K ohms

Mechanical

Environment

Operating Temperature: -4 to +104˚F

[-20 to +40˚C]

Humidity: 95% RH non condensing

Dimensions

Enclosure: 14"x 14" x 4.75"

Power Board: 7.4" x 3.94" x 2.35"

Mounting: 3.5" x 6.8"

Access Control Module: 4.82" x 3.84" x 1.4"

Mounting: 3.41" x 4.50"

Shipping Weight: 12.5lbs

*Use gauge appropriate for output voltage and wiring distance.

UL 294 RoHS lead free
