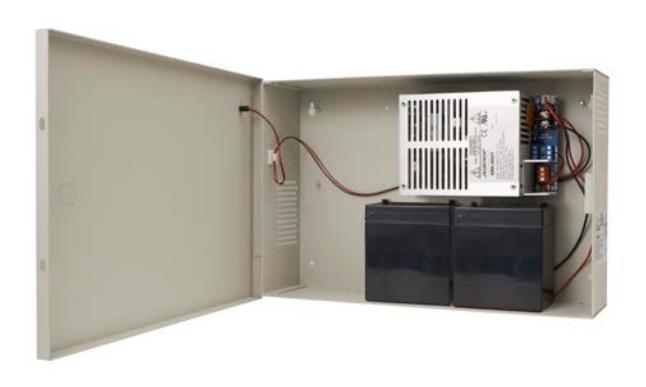

AQU243 Power Supply

The AQU243 power supply with battery charger/backup and supervision is a single voltage power supply that uses any AC power source from 90-240VAC/47-63Hz to provide up to 3 Amps @ 24VDC continuous output.

FEATURES:

• Clean, steady, accurate power output for best performance of access control equipment
• Compact modules for smaller footprint
• Universal transformer compatible with most international power
• Works in AC brownout down to 60 VAC
• Faster battery recharging under full load
• Automatic low-battery disconnect prevents deep discharge, maintains battery life
• Self-resetting circuit breakers for common conditions including:
  • o Overcurrent
  • o Thermal runaway
  • o Reverse battery hookup
• Fuse protected against surge for AC input and DC output
• SPDT Form C output for remote monitoring of:
  • o AC failure
  • o Low battery
• Made in USA
• MagnaCare Lifetime Replacement No Fault Warranty
• UL and ULC Listed

SPECIFICATIONS: AQU243

Electrical

Input Voltage Operating Range

90-240VAC 47-63Hz

Maximum Output Voltage

79.2 VA

3.3 Amps @ 24VDC

Continuous Output Voltage

72 VA

3 Amps @ 24VDC

Voltage Range

9.8 – 13.67VDC/ 13.65 typical

Operating Frequency

27KHz

Onboard Power Output

One (1) Output

Fuse Protection

Battery: PTC 3 Amp

Current Overload: PTC, self-resetting Thermal Runaway: PTC, self-resetting

Supervision/Monitoring

AC ON LED indicator: 6mA DC ON LED indicator: 6mA

AC Fail notification: SPDT Form C 2 Amp

Low Battery: SPDT Form C 3 Amp

Environment

Operating Temperature: -4 to +104˚F

[-20 to +40˚C]

Humidity: 95% RH non condensing

Mechanical

Dimensions

Enclosure: 14"x 9" x 3.5"

Power Module: 6.4" x 3.95" x 2.35"

Mounting: 5.36" x 3.54"

Shipping Weight: 7.65 lbs

Regulatory

UL 294

UL 603

ULC-S318-96

UL 1481

ULC 527

CSA-C22.2 #205

RoHS lead free
