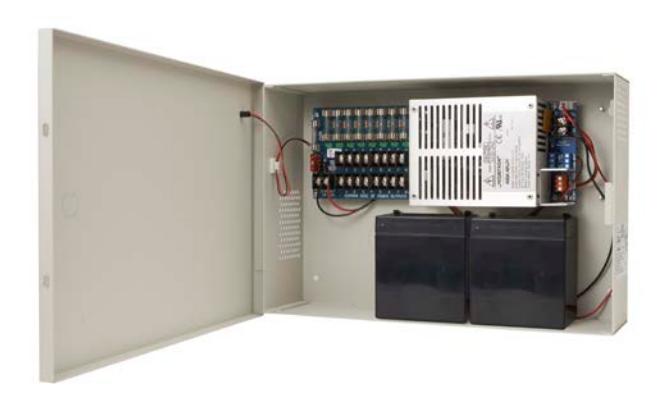

AQU243-8F Power Supply

The AQU243-8F power supply with battery charger/backup and supervision is a single voltage switching power supply that uses any AC power source from 90-240VAC/47-63Hz to provide up to 3 Amps @ 12VDC continuous output.

FEATURES:

• Clean, steady, accurate power output for best performance of access control equipment
• Compact modules for smaller footprint
• Universal transformer compatible with most international power
• Works in AC brownout down to 60 VAC
• Faster battery recharging under full load
• Automatic low-battery disconnect prevents deep discharge, maintains battery life
• Self-resetting circuit breakers for common conditions including:
  • o Overcurrent
  • o Thermal runaway
  • o Reverse battery hookup
• Eight (8) channel power distribution
  • o Power limited fuse protected outputs, each with a green status LED indicator
  • o Main power green/red LED indicates AC, DC or Reversed DC input
  • o Main fuse/power pull to disconnect board from input power
• Fuse protected against surge for AC input and DC output
• SPDT Form C output for remote monitoring of:
  • o AC failure
  • o Low battery
• Made in USA
• MagnaCare Lifetime Replacement No Fault Warranty
• UL Listed

SPECIFICATIONS: AQU243-8F

Power Module: AQU243 Distribution Board: -8F

Electrical

Input Voltage Operating Range

90-240VAC 47-63Hz

Maximum Output Voltage

79.2 VA

3.3 Amps @ 12VDC

Continuous Output Voltage

72 VA

3 Amps @ 12VDC

Voltage Range

9.8 – 13.7VDC/ 13.65 typical

Operating Frequency

27KHz

Onboard Power Output

One (1) Output

Fuse Protection

Battery: PTC 3 Amp

Current Overload: PTC, self-resetting Thermal Runaway: PTC, self-resetting

Supervision/Monitoring

AC ON LED indicator: 6mA DC ON LED indicator: 6mA

AC Fail notification: SPDT Form C 2 Amp

Low Battery: SPDT Form C 3 Amp

Regulatory

UL 294

RoHS lead free

Electrical

Output Terminal Block Rating

5A

Output Wire Gauge Range

10-28AWG*

Maximum Output Per Channel

8 channels @ 2A/channel

Fuses

Size: 200 Standard 3AGC

Output: 2A

Main Fuse/Power Pull: 10A ATO

Mechanical

Environment

Operating Temperature: -4 to +104˚F

[-20 to +40˚C]

Humidity: 95% RH non condensing

Dimensions

Enclosure: 14"x 9" x 3.5"

Power Board: 6.4"x 3.95" x 2.35"

Mounting: 5.36" x 3.54"

Distribution Board: 3.87" x 4.84" x 1"

Mounting: 3.41" x 4.49"

Shipping Weight: 8.10 lbs

*Use gauge appropriate for output voltage and wiring distance.
