AQU128-8C8R Power Supply

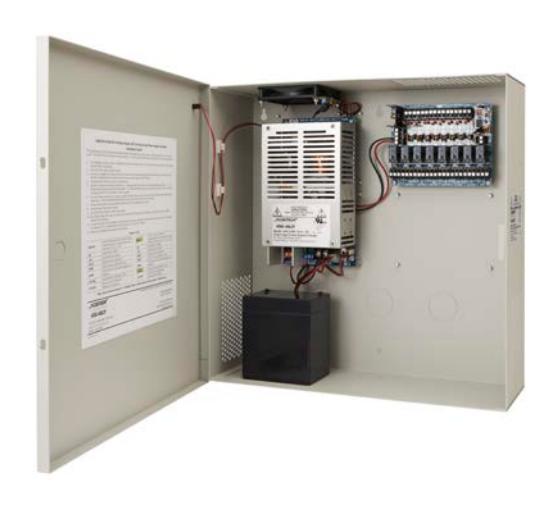

The AQU128-8C8R power supply with battery charger/backup and supervision is a single voltage power supply that uses any AC power source from 90- 240VAC/47-63Hz to provide up to 8 Amps @ 12VDC continuous output.

FEATURES:

• Clean, steady, accurate power output for best performance of access control equipment
• Compact modules for smaller footprint
• Universal transformer compatible with most international power
• Works in AC brownout down to 60 VAC
• Faster battery recharging under full load
• Automatic low-battery disconnect prevents deep discharge, maintains battery life
• Self-resetting circuit breakers for common conditions including:
  • o Overcurrent
  • o Thermal runaway
  • o Reverse battery hookup
• Fuse protected against surge for AC input and DC output
• Auto-sensing variable speed smart fan
• Power module has ON/OFF switch to disconnect DC output from power
• Eight (8) channel power distribution with Access Control and fire relays
  • o Channels individually selectable to Low Current Open Collector, Normally Closed or Normally Open switch
  • o Channels individually configured to FT Enabled/Disabled
  • o Power limited PTC protected outputs, each with a green status LED indicator
  • o Main power green/red LED indicates AC, DC or Reversed DC input
  • o Pluggable terminal blocks by channel and function
• SPDT Form C outputs for remote monitoring of trouble: AC failure, Low battery, or over voltage
• Made in USA
• MagnaCare Lifetime Replacement No Fault Warranty
• UL Listed

SPECIFICATIONS: AQU128-8C8R

Power Module: AQU128 Access Control: -8C8R

Electrical

Input Voltage Operating Range

90-240VAC 47-63Hz

Maximum Output Voltage

120 VA

10 Amps @ 12VDC

Continuous Output Voltage

96 VA

8 Amps @ 12VDC

Voltage Range

98 – 13.6VDC/ 13.65 typical

Operating Frequency

23KHz

Onboard Power Output

One (1) Output

Fuse Protection

Battery: PTC 8 Amp

Current Overload: PTC, self-resetting Thermal Runaway: PTC, self-resetting

Supervision/Monitoring

AC ON LED indicator: 6mA DC ON LED indicator: 6mA

Trouble notification: SPDT Form C 200mA

120VAC

Electrical

Max board power use: 208mA

Maximum Output Per Channel

8 channels @ 1.04A/channel 12V

Fuses

Output: PTC 1.04A/channel Holds current at 130˚F

Relays

Input Relay: 20ma required for activation Output Relay: contacts rates 7A 125VAC max

Triggers

EOL: +/-60% of 2.2K ohms

Mechanical

Environment

Operating Temperature: -4 to +104˚F

[-20 to +40˚C]

Humidity: 95% RH non condensing

Dimensions

Enclosure: 14"x 14" x 4.75"

Power Board: 6.4" x 3.95" x 2.35"

Mounting: 5.36" x 3.54"

Access Control Module: 4.82" x 3.84" x 1.4"

Mounting: 3.41" x 4.50"

Shipping Weight: 7.65 lbs

RoHS lead free
