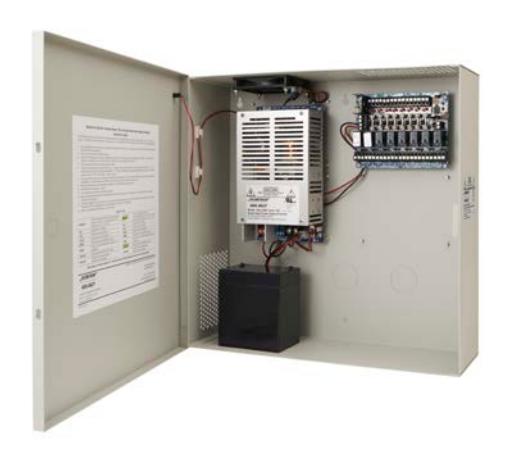

AQU126-8F8R Power Supply

The AQU126-8F8R power supply with battery charger/backup and supervision is a single voltage power supply that uses any AC power source from 90-240VAC/ 47-63Hz to provide up to 6 Amps @ 12VDC continuous output.

FEATURES:

• Clean, steady, accurate power output for best performance of access control equipment
• Compact modules for smaller footprint
• Universal transformer compatible with most international power
• Works in AC brownout down to 60 VAC
• Faster battery recharging under full load
• Automatic low-battery disconnect prevents deep discharge, maintains battery life
• Self-resetting circuit breakers for common conditions including:
  • o Overcurrent
  • o Thermal runaway
  • o Reverse battery hookup
• Fuse protected against surge for AC input and DC output
• Class 2 power limited output
• Eight (8) channel power distribution with Access Control
  • o Fire transfer relays with individual inputs and status LEDs
  • o Each relay input activated from Low Current Open Collector, Normally Closed or Normally Open switch
  • o Channels individually configured to FT Enabled/Disabled
  • o Power limited fuse protected outputs, each with a green status LED indicator
  • o Main power green/red LED indicates AC, DC or Reversed DC input
  • o Pluggable terminal blocks by channel and function
• SPDT Form C outputs for remote monitoring of:
  • o AC failure
  • o Low battery
• Made in USA
• MagnaCare Lifetime Replacement No Fault Warranty
• UL Listed

SPECIFICATIONS: AQU126-8F8R

Power Module: AQU126 Access Control: -8F8R

Electrical

Input Voltage Operating Range

90-240VAC 47-63Hz

Maximum Output Voltage

78 VA

6.5 Amps @ 12VDC

Continuous Output Voltage

72 VA

6 Amps @ 12VDC

Voltage Range

9.9 – 13.6VDC/ 13.65 typical

Operating Frequency

27KHz

Onboard Power Output

One (1) Output

Fuse Protection

Battery: 6 Amp

Current Overload: Fuse, self-resetting Thermal Runaway: Fuse, self-resetting

Supervision/Monitoring

AC ON LED indicator: 6mA DC ON LED indicator: 6mA

AC Fail notification: SPDT Form C 2 Amp

Low Battery: SPDT Form C 3 Amp

Regulatory

UL 294

RoHS lead free

Electrical

Max board power use: 208mA

Fuses

Size: 050 Standard 3AGC

Output: 2A

Relays

Input Relays: 20ma required for activation Output Relays: contacts rated 7A 125VAC max

Triggers

EOL: +/-60% of 2.2K ohms

Mechanical

Environment

Operating Temperature: -4 to +104˚F

[-20 to +40˚C]

Humidity: 95% RH non condensing

Dimensions

Enclosure: 14"x 9" x 3.5"

Power Board: 6.4" x 3.95" x 2.35"

Mounting: 5.36" x 3.54"

Access Control Module: 4.82" x 3.84" x 1.4"

Mounting: 3.41" x 4.50"

Shipping Weight: 7.65 lbs

*Use gauge appropriate for output voltage and wiring distance.
