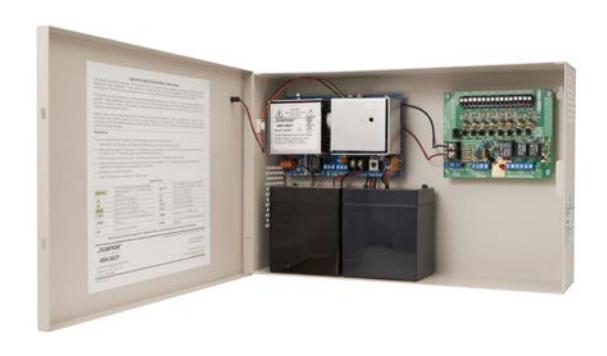

AQD5-8C1R Power Supply

The AQD5-8C1R power supply with battery charger/backup and supervision is a dual voltage switching power supply with a fire transfer relay that uses any AC power source from 90-240VAC/43-63Hz to provide up to 5 Amps @ 12VDC or 3 Amps @ 24VDC total output.

FEATURES:

  • Clean, steady, accurate power output for best performance of access control equipment
  • Field-selectable dual voltage 5A/3A @ 12/24VDC
  • Compact modules for smaller footprint
  • Universal transformer compatible with most international power
  • Works in AC brownout down to 60 VAC
  • Faster battery recharging under full load
  • Automatic low-battery disconnect prevents deep discharge, maintains battery life
  • Self-resetting circuit breakers for common conditions including:
    • o Overcurrent
    • o Thermal runaway
    • o Reverse battery hookup
  • Class 2 power limited output
  • Eight (8) channel power distribution with fire relay trigger
    • o Channels individually selectable to ON/OFF/Always ON in response to fire relay
    • o Power limited protected outputs, each with a green status LED indicator
    • o Main power green/red LED indicates AC, DC or Reversed DC input
    • o Main fuse/power pull to disconnect board from input power
    • o Latching or non-latching
  • Fuse protected against surge for AC input and DC output
  • SPDT Form C outputs for remote monitoring of:
    • o AC failure
    • o Low battery
    • o Trigger status
  • Made in USA
  • MagnaCare Lifetime Replacement No Fault Warranty
  • UL and ULC Listed

SPECIFICATIONS: AQD5-8C1R

Power Module: AQD5

Electrical

Input Voltage Operating Range

90-240VAC 47-63Hz

Maximum Output Voltage

72 VA

6 Amps @ 12VDC

3 Amps @ 24VDC

Continuous Output Voltage

60 VA

5 Amps @ 12VDC

3 Amps @ 24VDC

Voltage Range

9.8 – 13.7VDC/ 13.65 typical 19.8 – 28VDC/ 27.3 typical

Operating Frequency

132KHz

Onboard Power Output

One (1) Class 2 Power Limited

Fuse Protection

AC fuse: GMA-2 2 Amp

Battery: PTC 6 Amp

Current Overload: PTC, self-resetting Thermal Runaway: PTC, self-resetting

Supervision/Monitoring

AC ON LED indicator: 6mA

DC ON LED indicator: 6mA

AC Fail notification: SPDT Form C 2 Amp

Low Battery: SPDT Form C 3 Amp

Regulatory

UL 294

RoHS lead free

Distribution Board: -8C1R

Electrical

Board power with no output load: 90-160mA

Maximum Output Per Channel

8 channels @ 1.23A/channel Power Limited

Supervision

Trouble/Triggered Form C: 2A

Green LED per channel

Fuses

Output: PTC 1.23A/channel Holds current at 130°F

Main Fuse/Power Pull: 15A ATO

Relay

Reverse Polarity Trigger:

Input: 30VDC max Voltage Trigger: +/-20% input voltage

EOL Trigger:

Input: 2.2K ohms

Trigger: +/- 50% resistance on wire pair

Transfer Relay: 15Amps max

Mechanical

Dimensions

Enclosure: 14"x 9" x 3.5"

Power Board: 3.73"x 4.84" x 2"

Mounting: 3.41" x 4.5"

Fire Transfer Relay: 3.88" x 4.84" x .75"

Mounting: 3.41" x 4.50"

Shipping Weight: 7.65 lbs
