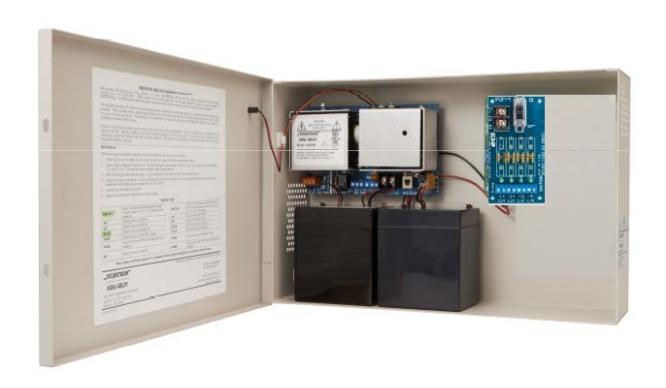

AQD5-4C Power Supply

The AQD5-4C power supply with battery charger/backup and supervision is a dual voltage switching power supply that uses any AC power source from 90-240VAC to provide up to 5 Amps @ 12VDC or 3 Amps @ 24VDC total output.

FEATURES:

• Clean, steady, accurate power output for best performance of access control equipment
• Field-selectable dual voltage 5A/3A @ 12/24VDC
• Compact modules for smaller footprint
• Universal transformer compatible with most international power
• Works in AC brownout down to 60 VAC
• Faster battery recharging under full load
• Automatic low-battery disconnect prevents deep discharge, maintains battery life
• Well regulated and conditioned power board protected by self-resetting circuit breakers for common conditions including:
  • o Overcurrent
  • o Thermal runaway
  • o Reverse battery hookup
• Class 2 power limited output
• Four-channel power distribution
  • o Power limited PTC protected outputs, each with a green LED status indicator
  • o ON/OFF power switch
• Fuse protected against surge for AC input and DC output
• SPDT Form C outputs for remote monitoring of:
  • o AC failure
  • o Low battery
• Made in USA
• MagnaCare Lifetime Replacement No Fault Warranty
• UL Listed

SPECIFICATIONS: AQD5-4C

Power Module: AQD5

Electrical

Input Voltage Operating Range

90-240VAC 47-63Hz

Maximum Output Voltage

72 VA

6 Amps @ 12VDC

3 Amps @ 24VDC

Continuous Output Voltage

60 VA

5 Amps @ 12VDC

3 Amps @ 24VDC

Voltage Range

9.8 – 13.8VDC/ 13.65 typical 19.8 – 28VDC/ 27.3 typical

Operating Frequency

132KHz

Onboard Power Output

One (1) Class 2 Power Limited

Fuse Protection

AC fuse: GMA-2 2 Amp Battery: PTC 6 Amp

Current Overload: PTC, self-resetting Thermal Runaway: PTC, self-resetting

Supervision/Monitoring

AC ON LED indicator: 6mA DC ON LED indicator: 6mA

AC Fail notification: SPDT Form C 2 Amp

Low Battery: SPDT Form C 3 Amp

Regulatory

UL 294 UL 603 ULC-S318-96 CAN/ULC-S533-02

RoHS lead free

Distribution Board: -4C

Electrical

PTC Circuit breakers hold current at 130˚F

Output Terminal Block Rating

10A

Output Wire Gauge Range

14-28AWG*

Maximum Output Per Channel

4 channels @ 1,4A/channel

Mechanical

Dimensions

Enclosure: 14"x 9" x 3.5"

Power Board: 3.73"x 4.84" x 2"

Mounting: 3.41" x 4.5"

Distribution Board: 3.75" x 2.22" x 1"

Mounting: 3.41" x 1.87"

Shipping Weight: 7.90 lbs

^* Use gauge appropriate for output voltage and wiring distance.
