Securam Electronic Safe Lock Battery Changing Instructions ProLogic

Changing the Battery - ProLogic

Step1:

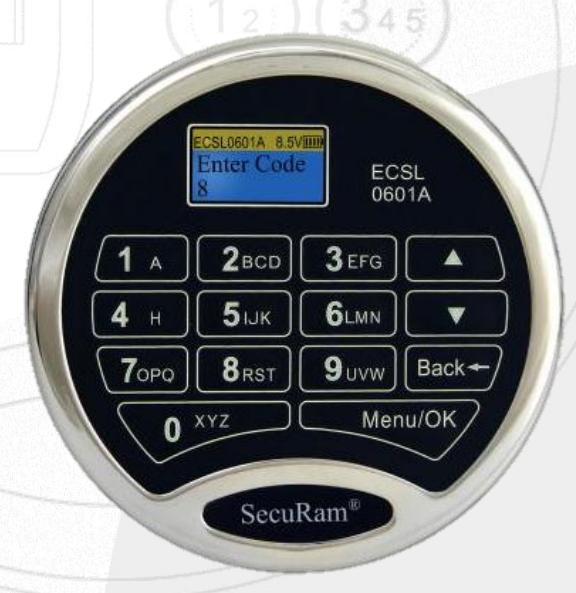

To remove the EntryPad from the safe door, push up from the bottom of the EntryPad. You will feel the SnapFit mounting holes release from the shoulder bolts

Step 2:

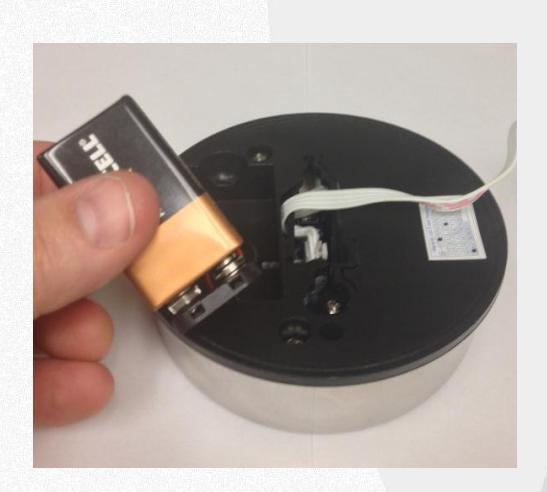

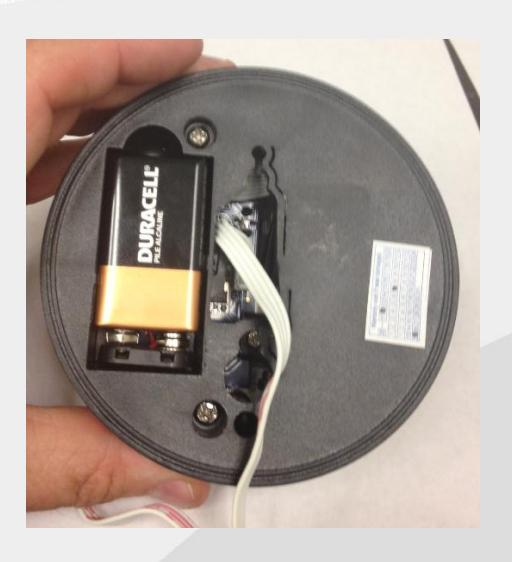

The back of the EntryPad will reveal a 9 volt battery. Remove the battery from its compartment.

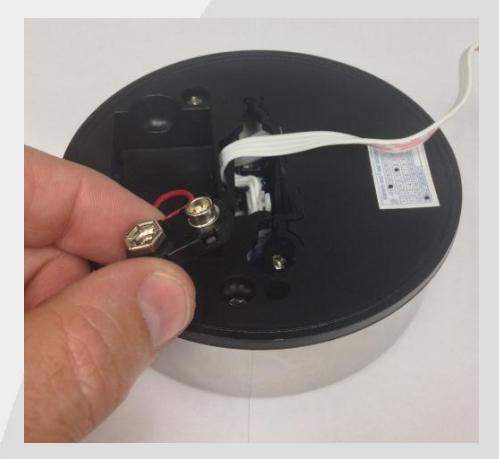

Step 3: Remove the terminal block from the battery.

Note: Do not pull on the terminal wires.

Step 4:

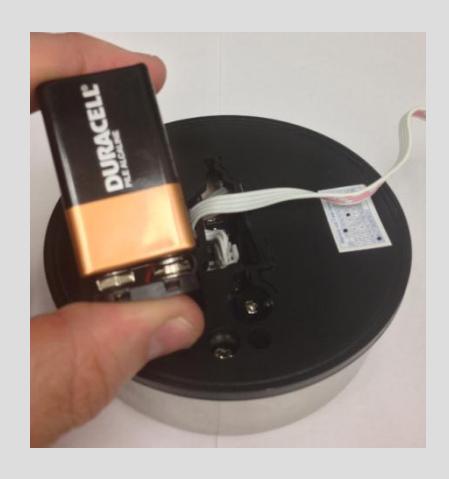

Snap a new Duracell or Energizer battery on the terminal block. Place the battery back in its compartment with the terminal block toward the bottom of the EntryPad.
