SecuRelay™

Intelligent Relay Module

SK-SR1

The SecuRelay™ from Secura Key adds a new dimension of protection to standalone access control units. SecuRelay™ moves the lock control relay to a location away from the reader. This eliminates the threat of an intruder gaining entry by "hot wiring" the cable at the reader.

The SecuRelayTM also provides Remote Open inputs for use with the 26SA or RK65K/S, or any other connected access control unit, as these inputs could also be compromised at the reader location.

Whenever a valid card is presented to a SecuRelay™ compatible access control unit,

a unique data stream is sent to the SecuRelay™. Each SecuRelay™ learns to recognize the data from a single access control unit. Tampering with the wires at the access control unit, even replacing the unit with another reader, will not trick the SecuRelay™ into releasing the lock or gate.

SecuRelay™ is compatible with Secura Key Radio Key® RKDT-SR-M/S and RK-65K standalone proximity access controls and with the 26SA (version 4.0 or later firmware), as well as with the Smart Readers used with the NOVA.16 multi-reader control panel.

Features:

• • Added Security For Standalone Access Control Units
• • Remote Relay is Activated by Unique Code from Reader
• • Compatible with Radio Key® RK-65K, 26SA, RKDT-SA-M/S, RKDT-SR-M/S AND ET8-SR-X-M/D.
• • Easy Installation

SECURELAYTM

SPECIFICATIONS

		SK-SR1 SECURELAY™ MODULE
Dimensions (H x W x L)		0.5" (1.27 cm) x 0.625 " (1.59 cm) x 2.25" (5.72 cm) (plus wires)
Weight	1 oz. (28.35 gm)
Power Requirements		5 – 12 VDC (provided by access control unit)
Inputs		Signal and Ground (from access control unit) Request-To-Exit (requires contact closure)
Output		DPDT dry contact relay, 2 amp, up to 220VAC or or 30VDC
Environment		-40° to +70° C (-40° to +158° F) 95% non-condensing
Operational		Presentation of a valid card at the access control unit generates a unique data transmission to the SecuRelay™. Upon receipt of this signal, or if the "Remote Open" input is closed, the DPDT relay in the SecuRelay™ will activate for the access time configured in the connected access control unit. (Note: "Remote Open" operation in the 26SA and RK65K/S units is disabled when SecuRelay™ is used.)

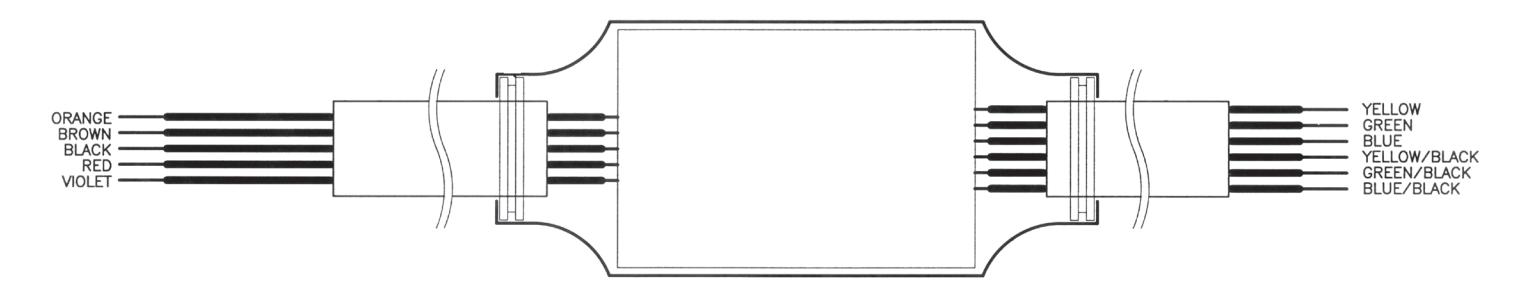

Wiring		Wire Color	Function
	Inputs	Red Black Violet Orange Brown	5 – 12 VDC Ground Signal Remote Open Remote Open	} From Access Control Unit
	Outputs	Green Yellow Blue Green/Black Yellow/Black Blue/Black	Latch Relay Common Latch Relay Normally Open Latch Relay Normally Closed Alarm Shunt Common Alarm Shunt Normally Open Alarm Shunt Normally Closed
Regulatory Approvals		UL/cUL294, Part 15 Class B FCC, CE Mark
Warranty		These Secura Key products are warranted against defects in materials and workmanship for two years. Secura Key will replace any Secura Key manufactured product that fails to perform as intended. This warranty does not include freight, taxes, duties, or installation expenses. See price list for complete terms and conditions.

ORDERING

MODULES

SK-SR1 Intelligent Relay Module
