Securakey RK65KS-KIT1 Data Sheet

SECURA KEY RK65KS-KIT1

Single Door, Standalone Proximity Access Control System Kit

The Radio Key® RK65KS is fully programmable, standalone single door access control system. It's a compact, weather-resistant, surface mounted unit. The reader can manage up to 65,000 individual users with sequentially-numbered cards or tags. Users are added and deleted easily with an RK-HHP handheld programmer. The latch timer can be set from ¼ second up to 18 hours, or to toggle (on/off). This simple but powerful reader is now available in a kit, which contains everything you need to control a single door, to program and to power the reader and enough keytags for 10 users.

A Wiegand output allows the reader to be connected to a multi-door access control or telephone entry system, if desired. When used as part of a larger system, the local card memory and relay may be used for degraded mode or other special functions.

• Low Priced Single Door Proximity Entry System
• Epoxy potted for Outdoor Locations
• 125 kHz Proximity Technology
• Dynascan^® Auto Tuning for Superior Read Range
• Up to 6" Read Distance
• No Control Panel Required
• Program with Handheld Programmer
• Wiegand Output for Future Expansion

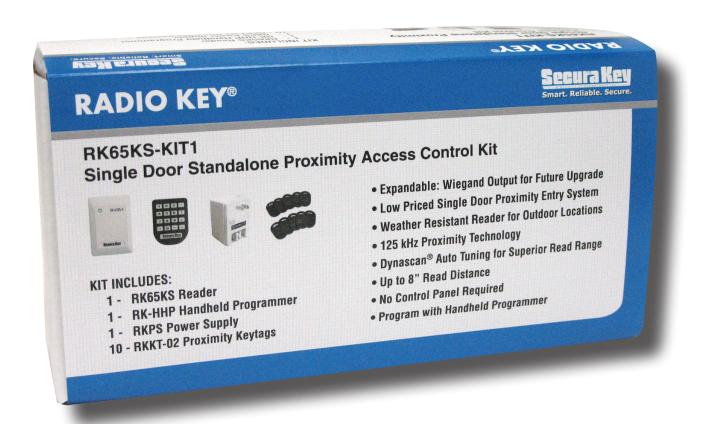

RK65KS-KIT1 STANDALONE KIT INCLUDES:

1 RK-65KS READER 10 RKKT Keytags 1 RK-HHP HANDHELD PROGRAMMER 1 RK-PS 12 VDC POWER SUPPLY
