Securakey ET-ANT Data Sheet

FLAT PAD ANTENNA

ET-ANT 13X9

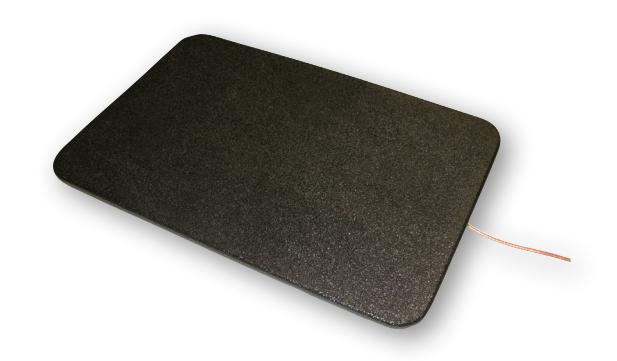

The ET-ANT 13X9 is a flat pad antenna designed for read/write capability with HF contactless labels, tags and cards used to identify individual articles, documents and books. You will find that the ET-ANT 13X9's performance is superior to that of competing similar products. The antenna exhibits consistent read range at various locations across the housing, and can read multiple transponders simultaneously. With a 180 milliwatt reader, it can read a CR80 credential at 9 - 10" (23 - 25.5 cm).

The flat profile of the ET-ANT 13X9 makes it perfect for desktop applications in offices or libraries for file and document tracking and check-in / checkout of books. The reader is also ideal for any track and trace applications for small, high-value items in a retail environment, such as jewelry or pharmaceuticals.

The reader is compatible with any HF reader with a 50-Ohm circuit and an SMA external antenna connector, such as the Secura Key ET9-USB1.

SPECIFICATIONS

Technical Data

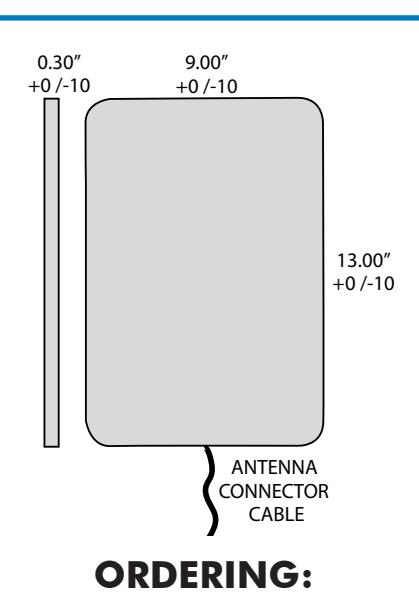

Dimensions: H x W x D	13" x 9" x 0.30" (33.02 x 22.8 x 0.762 cm)
Weight:	1 lb. (0.45 kg.)
Housing:	ABS Plastic
Color:	Black
Protection Class:	IP64
Temperature Range:	Operating: -4°F – 158°F (-20°C - 70°C) Storage: -13°F – 185°F (-25°C – 85°C)
Relative Humidity:	5 – 95% non-condensing
Operating Frequency:	13.56 MHz
Maximum Transmitting Power:	5 watts
Antenna Connector:	Black-Jacketed Cable with SMA 174/U connector 50Ω, length: 96" (243.84 cm); MMCX adapter included
