Schlage_Strikes_Models_10-001_10-013_10-016_10-019_Wood_Template_-_English_104518

Strikes

Models 10-001, 10-013, 10-016, 10-019

Jamb Type: Wood

Style: T-Strike, Square Corner

Standard for: A-Series | B250-Series | S-Series

Optional for: AL-Series | F-Series | D-Series Knobs | ND-Series Levers

NOTE:

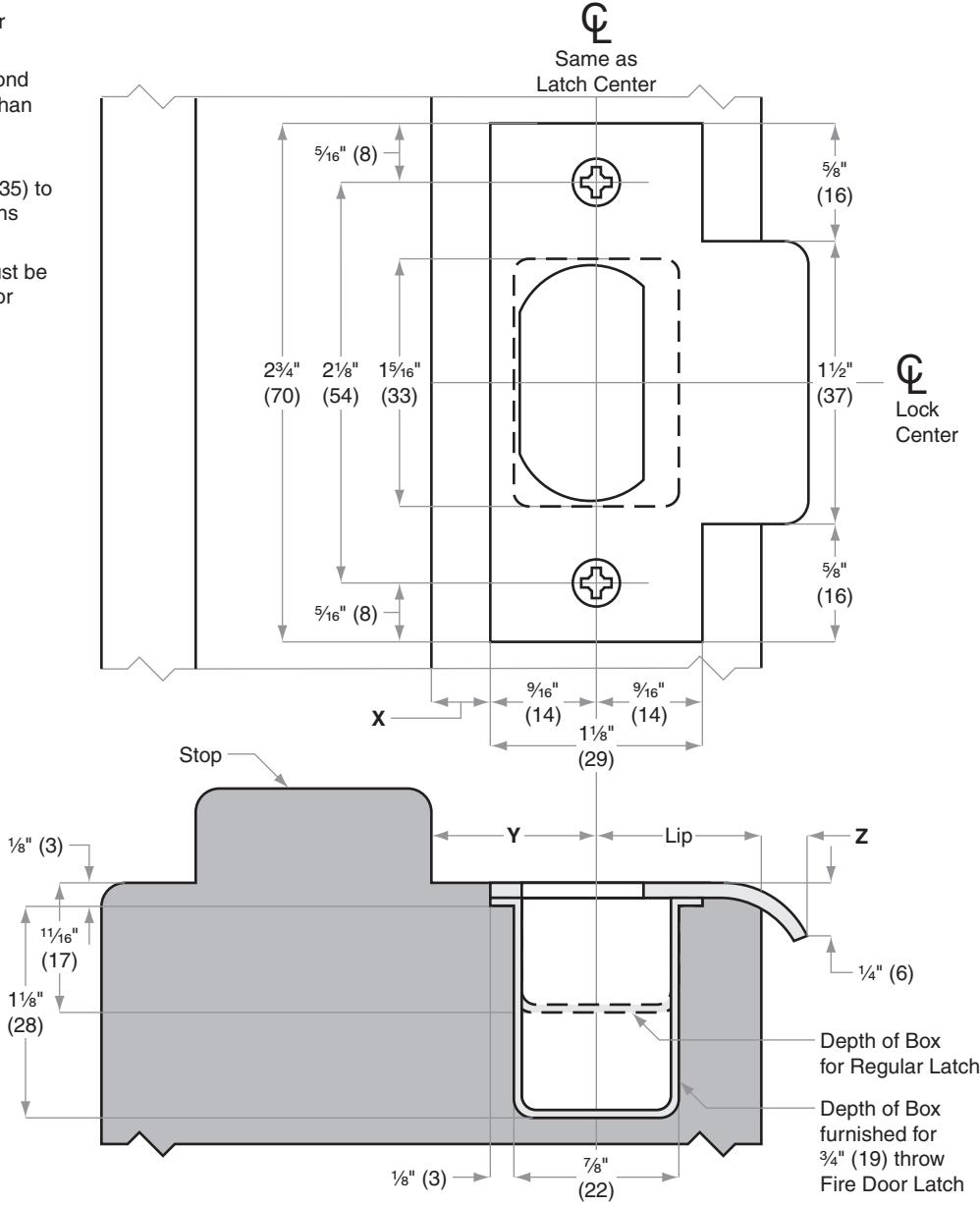

• 1. Dimensions X, Y and Z are variables dependent on door thickness
• 2. Curved strike extension beyond jamb at Z must not be less than ³⁄₁₆" (5) to ensure proper functioning of latch bolt
• 3. 1¹⁄₈" (29) Lip length for 1³⁄₈" (35) to 1³⁄₄" (44) doors. Other lengths available
• 4. Strike location on frames must be adjusted for thickness of door silencers, when used

Dimensions shown in parentheses () are in millimeters.

Door preparation template
