Strikes

Models 10-001, 10-013, 10-016, 10-019

Jamb Type: Metal

Style: T-Strike, Square Corner

Standard for: A-Series | B250-Series | S-Series

Optional for: AL-Series | F-Series | D-Series Knobs | ND-Series Levers

NOTE:

• Dimensions X and Y are variables dependent on door thickness
• 2. Curved strike extension beyond jamb at Z must not be less than %6" (5) to ensure proper functioning of latch bolt
• 1½" (29) Lip length for 1¾" (35) to 1¾" (44) doors. Other lengths available
• Strike location on frames must be adjusted for thickness of door silencers, when used

Dimensions shown in parentheses () are in millimeters.

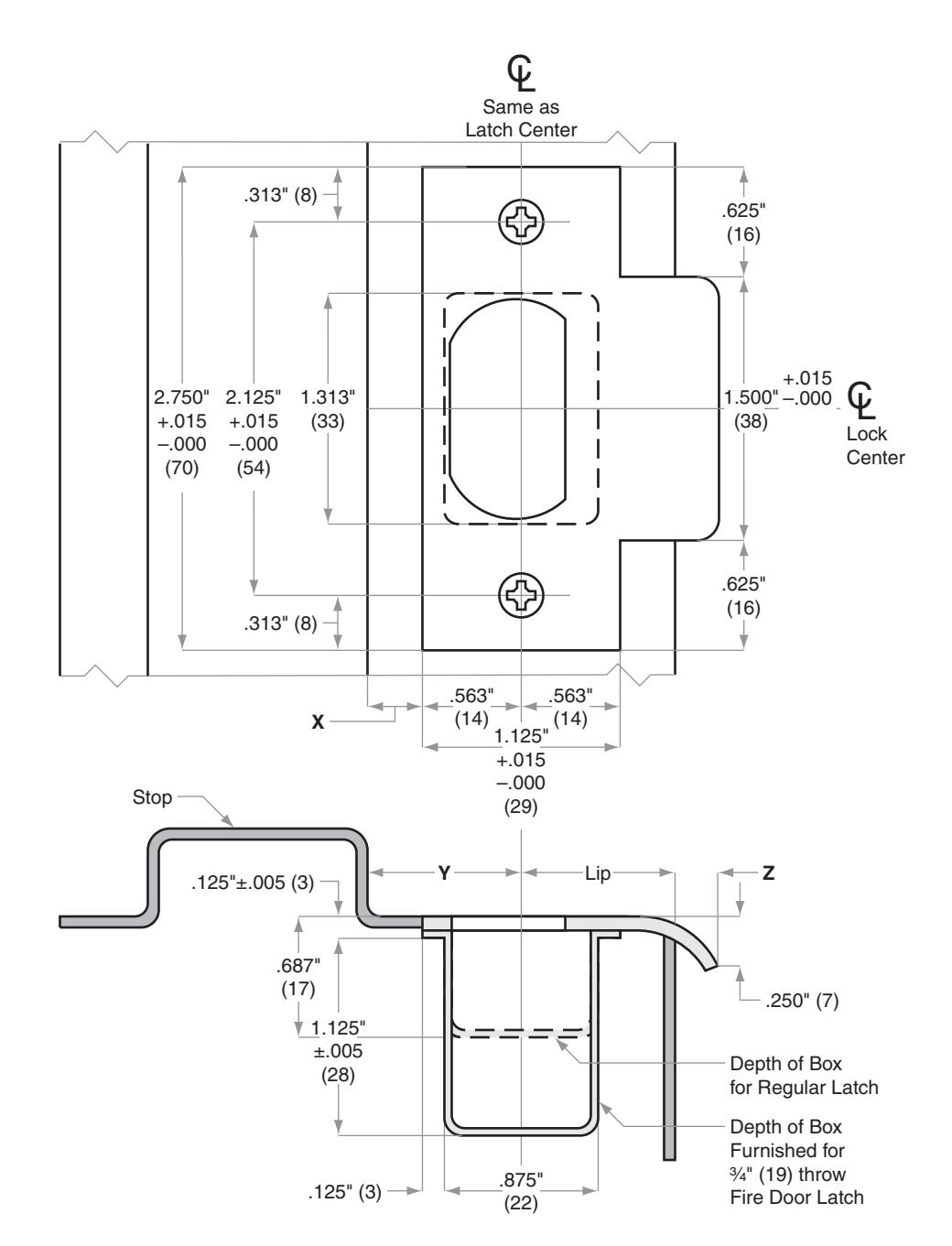

Door preparation template
