SL1/SK1 Series
Ligature resistant trim for low-medium risk applications
Overview
Hospitals, behavioral health facilities and detention centers are at high-risk for sentinel suicide events, even when regular monitoring checks are in place. Statistics from 2010-2017 show that over 70 percent of suicide attempts during hospital inpatient treatment utilized a ligature or strangulation point and almost 54 percent of those used a door or door hardware1 . To mitigate suicide risk more effectively facilities are making an effort to create spaces to keep patients safe from self harm.
Schlage offers a comprehensive portfolio of door hardware that reduces the risk of injury or death due to ligature strangulation in all areas, but the SL1 and SK1 are recommended for low-medium risk applications.
The SL1/SK1 ligature resistant trim is available for the Schlage L Series mortise lock.
Recommended applications2
Medium-risk areas
- § Living room
- § Dining room
- § Group room
- § Kitchen
- § Janitor's closet
- § Hallway restroom
Patient access is controlled; or use is supervised with no solitary and/or unsupervised care.
Low-risk areas
- § Medication room
- § Nurse station
- § Office
- § Laundry room
- § Staff restroom
- § Classroom
No patient use or area is constantly supervised.
Features and benefits
-

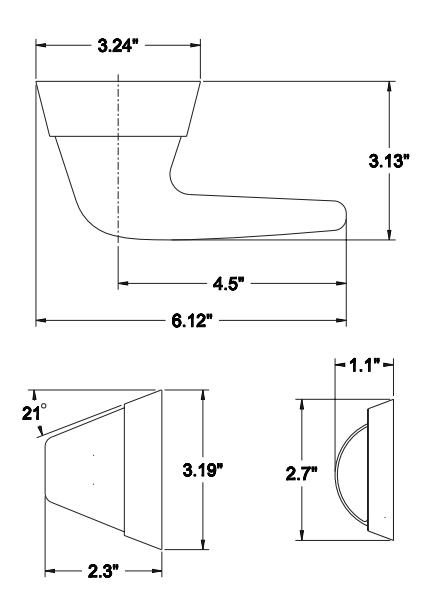

§ Multiple safety facets:
- − Recessed trim
- − Sloped surfaces
- − Concealed fastening hardware
- § Integrated clutch that allows the lever to rotate in event of excessive force
- § Knob's quad design allows grip with entire hand or just fingertips
- § Lever and thumbturn are ADA compliant
- § Available with new lock or as retrofit
- § BAA compliant
- § Ligature resistant thumbturn and cylinder ring included as appropriate with function
- § Ligature resistant thumbturn positive stop prevents over extension and presentation of horizontal surface (hazard)
- § Ligature resistant cylinder ring specially designed for each cylinder type
Note: Although designed to reduce the risk of injury or death due to ligature strangulation, these products are ligature resistant, but are not necessarily ligature proof.
1. The Joint Commission. Journal on Quality and Patient Safety: 2018; 44:643-650, Incidence and Method of Suicide in Hospitals in the United States.
2. New York State Office of Mental Health. Patient Safety Standards, Materials and Systems Guidelines: August 15, 2018.
Specifications
| L Series SL1/SK1 mortise | |||||
|---|---|---|---|---|---|
| Functions | See price book for available functions | ||||
| Door thickness | 1 3⁄4" only | ||||
| Handing | Not handed | ||||
| Finishes | 630, 630AM | ||||
| Backset | 2 3⁄4" only | ||||
| Strike |
Deadbolt functions: ANSI curved lip strike
Non-deadbolt functions: ligature resistant strike 1 1 ⁄4" x 4 7 ⁄8" (32mm x 124mm) x 1 3⁄16" (30mm) lip to center with dust box |
||||
|
Cylinders and
key systems |
Standard: 6-pin, solid brass, keyed 6-pin with two nickel silver cut keys per lock
Additional cylinder and keying options available. See price book or L Series catalog. |
||||
| Warranty |
3 year limited mechanical
1 year limited wired electrified |
||||
| ANSI/BHMA |
ANSI/BHMA A156.13-2017 Series 1000, Grade 1 Operational and Security
With FSIC cylinders: Grade 2 Security With SFIC cylinders: Grade 3 Security ASTM F476-76 Grade 40 |
||||
| ICC | Complies with ICC A117.1 Accessible and Usable Buildings and Facilities | ||||
| UL/cUL | UL 10C and CAN/ULC-S104 3-hour Fire Listed (except L9076 and L9077) | ||||
Ordering instructions
| SL1/SK1 Series example | ||||||
|---|---|---|---|---|---|---|
| Product | Trim | Finish | Handing | |||
| L9080P or ND50PD | SL1 | 630 | - | |||
| Lock specifications | ||||||
| Product | Product series + function + cylinder | |||||
| Trim | SL1 or SK1 | |||||
| Finish | 630 Satin stainless steel |
630AM Satin stainless
steel antimicrobial |
||||
| Handing | Not required | |||||
Other Allegion ligature resistant solutions
Schlage HSLR trim
- § For high risk applications
- § Mortise or cylindrical
Ives® hospital tip door hinges
- § Ligature resistant sloped tip
- § Available on architectural hinges and pin and barrel continuous hinges
Zero International ligature resistant gasketing
§ Patented design allows normal function, but will break into pieces if removed for any reasons
Finishes
630/630AM* Satin stainless steel
* AM - Antimicrobial
