Put your confidence in the consistency of Schlage®
The LT Series gives you the quality you can count on from Schlage. LT Series decorative tubular locks are built from the foundational technology of the L Series mortise locks, to provide you the durable, reliable performance that you have come to know from Schlage.

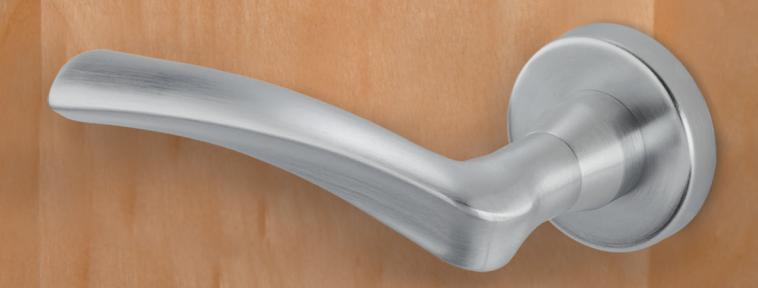

Continuity is key
Safety and security are paramount when choosing door hardware, but continuity in design is also key for those projects that have exacting aesthetic demands. The Schlage LT tubular lock, by suiting seamlessly with Schlage L Mortise locks and Von Duprin exit devices, gives you both.
Seamless suiting with Schlage L Series mortise locks and Von Duprin® exit devices:
- The LT Series utilizes the same levers, finishes and roses as the L Series to provide a consistent look and feel throughout the project.
- All levers are manufactured from solid brass or solid stainless steel for a comfortable, heavy feel.
Attention to detail:
- Hidden lever attachment with no exposed set screws
- Levers move both up and down for a consistent operational experience between tubular locks, mortise locks and exit devices.
- Inside lever moves independently from the outside lever, making for a higher-end, less distracting environment.

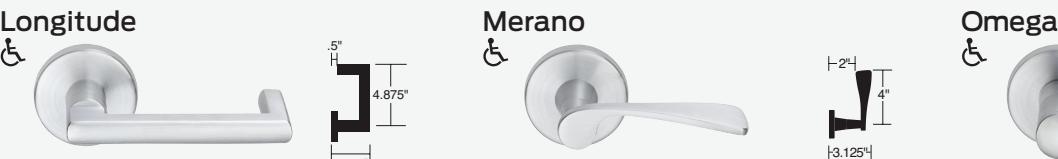

Standard lever suite
Finish options
605 US3
609 US5 Antique brass
619 US15 Satin nickel
622 US19 Matte black
625 US26 Bright chrome plated
626/626AM US26D Satin chrome plated
629 US32 Bright
stainless steel
630/630AM US32D Satin stainless steel
643e US11 Aged bronze
AM Antimicrobial

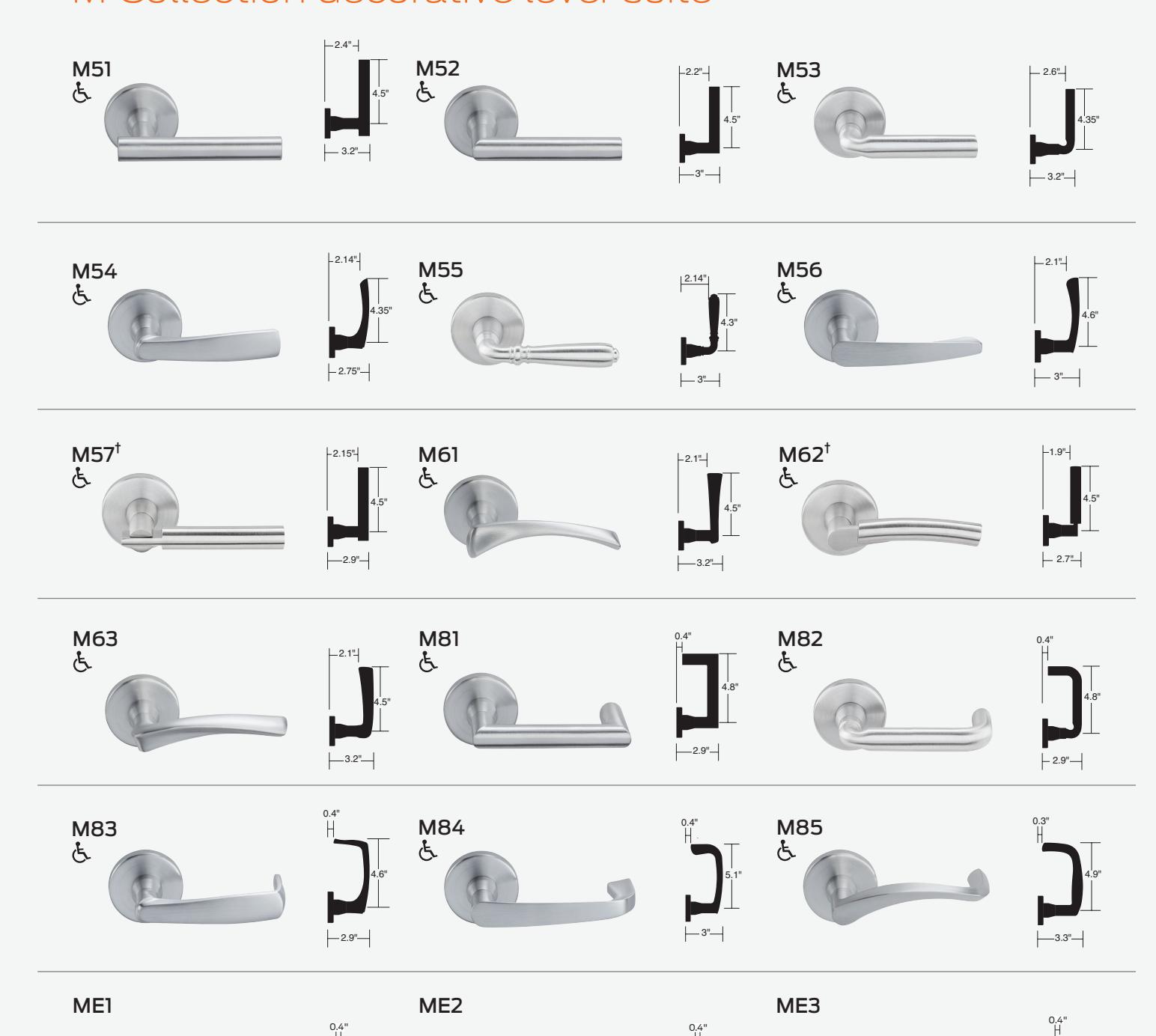

M Collection decorative lever suite
Trim options
Available with the following roses.

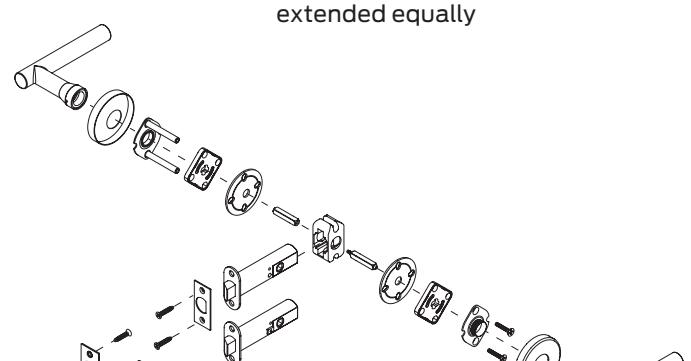

Lock details
Many of the LT chassis components are the exact same as, or very similar in design to, the Schlage L mortise lock. This design commonality allows for a near seamless feel between the two types of locks.
Specifications
Certifications:
ANSI/BHMA A156.2, Series 4000, Grade 2 tubular lock. Optional 20 minute UL fire rating.
Door range:
1 3⁄8" - 1 3⁄4" standard , 2" available
Lachbolt:
1 1 ⁄8" x 2 1 ⁄4" w/ 2 3⁄4" backset with square faceplate (default), optional 1" x 2 1 ⁄4" w/2 3⁄8" backset with square faceplate
Restoring latchbolt:
Yes, privacy function (automatically unlocks if door locked prior to closing)
Strike:
1 1 ⁄8" x 2 3⁄4" w/ 1 1 ⁄8" lip length, square corner T-strike
Field-reversable handing:
Yes, all lever designs
Functions
LT10 - Passage
Both levers always free
LT10F - Passage
Fire rated
LT40 - Privacy
Inside lever always retracts latch. Outside lever free unless locked by push-pin from inside. Turning Inside handle, closing door, or utilizing emergency pin on outside unlocks outside lever.
LT40F - Privacy
Fire rated
LT170 - Single dummy trim
Dummy trim for one side of door. Used for door pull or as matching inactive trim
LT172 - Pair dummy trim
Dummy trim for both sides of the door
Non-standard door thickness
Specify 2" for extension kit for doors > 1 3⁄4" to 2" thick,
Latch options
THP-8201 - Passage latch
1" x 2 1 ⁄4" w/ 2 3⁄8" backset, square faceplate
THP-8201-F - Passage latch
Fire rated
THP-8219 - Privacy latch
1" x 2 1 ⁄4" w/ 2 3⁄8" backset
THP-8219-F - Privacy latch
Fire rated
Strike options
10-001 xx - T-strike
Square corner, 1 1⁄8" x 2 3⁄4", specify lip length (xx) as 1", 1 1 ⁄4", 1 1 ⁄2", 1 3⁄4" or 2"
10-004 - T-strike
Round corner (1 ⁄4" radius), 1 1 ⁄8" x 2 3⁄4" w/ 1 1 ⁄8" lip length
10-025 xx - ANSI strike
1 1 ⁄4" x 4 7 ⁄8", specify lip length (xx) as 1 3⁄16", 1 3⁄8", or 1 1 ⁄2"
K510-066
Strike box for 10-025 ANSI strike
10-026 - Full lip strike
Square corner, 1 5⁄8" x 2 1 ⁄4" w/ 1 1 ⁄8" lip length
10-027 - Full lip strike
Round corner, 1 5⁄8" x 2 1 ⁄4" w/ 1 1 ⁄8" lip length
C603-623
Strike box for 10-026 or 10-027 full lip strike
Ordering guidelines
Order from Schlage using the standard Schlage order form as follows:
| Function | Trim | Finish | Options | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LT40 | M81B | 626 | As required | |||||||||||||||
| Function |
LT10
Passage |
LT10F |
Passage,
fire rated |
LT40
Privacy |
LT40F
Privacy, fire rated |
L0170
Single dummy |
L0172 | Pair dummy | ||||||||||
|
Trim
Standard |
01 | 02 | 03 | 05 | 06 | 07 | 12 | 17 | 18 | ACC | AST | LAT | LON | MER | OME | |||
| Decorative | M51 | M52 | M53 | M54 | M55 | M56 | M57* | M61 | M62* | M63 | M81 | M82 | M83 | M84 | M85 | ME1 | ME2 | ME3 |
| * Available in 629 and 630 finish only | Add either 'B' or 'C' to end of lever to specify rose design | |||||||||||||||||
| Finish | 605 | 606 | 609 | 619 | 622 | 625 | 626 | 626AM | 629 | 630 | 630AM | 643e | ||||||
| Latch options | THP-8201 | Passage latch | 1" x 2 1 | ⁄4" w/ 2 3 | ⁄8" backset | Square faceplate | ||||||||||||
| THP-8201-F | Passage latch - Fire rated | 1" x 2 1 | ⁄4" w/ 2 3 | ⁄8" backset | Square faceplate | |||||||||||||
| THP-8219 | Privacy latch | 1" x 2 1 | ⁄4" w/ 2 3 | ⁄8" backset | Square faceplate | |||||||||||||
| THP-8219-F | Privacy latch - Fire rated | 1" x 2 1 | ⁄4" w/ 2 3 | ⁄8" backset | Square faceplate | |||||||||||||
| Strike options | 10-001 xx | T-strike | Square corner | 1 1⁄8" x 2 3 | ⁄4", specify lip length (xx) as 1", 1 1 |
⁄4", 1 1
⁄2", 1 3 |
⁄4" or 2" | |||||||||||
| 10-004 | T-strike | Round corner (1 | ⁄4" radius) | 1 1 | ⁄8" x 2 3 | ⁄4" w/ 1 1 | ⁄8" lip length | |||||||||||
| 10-025 xx | ANSI strike |
1 1
⁄4" x 4 7 |
⁄8", specify lip length (xx) as 1 3 | ⁄16", 1 3 |
⁄8", or 1 1
⁄2" |
|||||||||||||
| 10-026 - | Full lip strike | Square corner | 1 5 | ⁄8" x 2 1 | ⁄4" w/ 1 1 | ⁄8" lip length | ||||||||||||
| 10-027 | Full lip strike | Round corner | 1 5 | ⁄8" x 2 1 | ⁄4" w/ 1 1 | ⁄8" lip length | ||||||||||||
| K510-066 | Strike box for 10-025 ANSI strike | |||||||||||||||||
| C603-623 | Strike box for 10-026 or 10-027 full lip strike | |||||||||||||||||
| 2" door | Specify 2" for extension kit for doors > 1 3 | ⁄4" to 2" thick, extended equally | ||||||||||||||||
| thickness | ||||||||||||||||||
|
ANSI/
BHMA |
US standard | Description |
|---|---|---|
| 605 | US 3 | Bright brass |
| 606 | US 4 | Satin brass |
| 609 | US 5 | Antique brass |
| 619 | US 15 | Satin nickel |
| 622 | US19 | Matte black |
| 625 | US 26 | Bright chrome |
| 626 | US 26D | Satin chrome |
| 626AM | Satin chrome anti-microbial | |
| 629 | US 32 | Bright stainless steel |
| 630 | US 32D | Satin stainless steel |
| 630AM |
Satin stainless steel
anti-microbial |
|
| 643e | US 11 | Aged bronze |
