AD Series and CO Series

Lever and cylinder compatibility

Overview

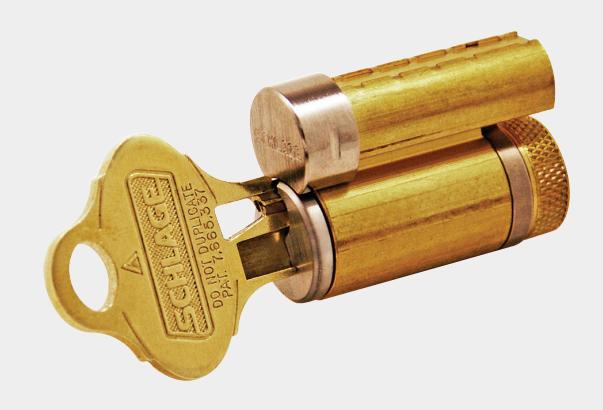

AD Series and CO Series electronic locks come standard with the Schlage® 6-pin Everest 29™ S123 keyway and two patented keys. The Everest 29 keyway's patent-protected undercut design with protection through 2029 is available in open and restricted keyway families. Patented restricted keyways, such as the Everest 29 R andT families, deliver a higher level of security by requiring authorization to access blanks for duplication. Improve both administrative and physical security with the application of Primus XP cylinders and gain the option to also employ high security UL 437 cylinders. The new Everest 29 patent enables a key blank that is backwards compatible to legacy Everest keyways allowing Everest 29 keys to work with existing Everest systems aiding the key system migration process.

The AD Series and CO Series can also be ordered with other popular Schlage keyways or prepared to receive Falcon® Conventional key-in-lever cylinders or Small Format Interchangeable Core (SFIC) cylinders. Less cylinder options are available to provide compatibility with Conventional, FSIC or SFIC cylinders of other manufacturers including, Sargent®, Corbin Russwin®, Medeco® and Yale ®.

Conventional key-in-lever PD LD LD SAR LD FA7

Full Size Interchangeable Core RD JD JD SAR JD CO6 JD CO7 JD MED JD YA6 YD YA7

Small Format Interchangeable Core GD BD

Features and benefits

• § Multiple credential reader options including keypad, proximity, magnetic stripe, multitechnology1 and smart card1
• § Wide variety of finishes and lever styles
• § Cylindrical, mortise, mortise deadbolt and exit trim options available
• § Compatible with all Schlage Conventional, FSIC and SFIC formatted cylinders including many competitive OEM cylinders
• § AD and CO 993 exit trim is compatible with a variety of exit devices inlcuding rim style from Von Duprin, Falcon, Sarget®, Precision,™ Corbin Russwin®, Dorma® and Yale®.

Lever and cylinder compatibility

			Cylinder type				Lever style
Part number	Description	With cylinder	Pins		KIL FSIC SFIC		ATH	BRK	BRW	LAT	LON	RHO	SPA	TLR
PD	Schlage® - Everest 29™ S123 (standard)	x	6	x			x	x	x	x	x		x	x
LD	Schlage, Falcon®		6	x			x	x	x	x	x	x	x	x
RD	Schlage - Everest 29 S123 (standard)	x	6		x		x	x	x	x	x	x	x	x
JD	Schlage		6		x		x	x	x	x	x	x	x	x
GD	Schlage Everest 29 R Family Keyways	x	7			x	x	x	x	x	x	x	x	x
BD	Schlage, Falcon, Competitive OEM's		7			x	x	x	x	x	x	x	x	x
LD FA7	Falcon		7	x				x	x	x	x	x	x
LD SAR	Sargent® (10L+11L)		6	x			x	x	x	x	x	x	x	x
JD SAR	Sargent 6300		6		x		x	x	x	x	x	x	x	x
JD CO6	Corbin® 8000		6		x		x	x	x	x	x	x	x	x
JD CO7	Corbin 8000-7		7		x			x	x	x	x	x	x	x
JD MED	Medeco® 32*0201		6		x			x	x	x	x	x	x
JD YA6	Yale® 1210 or Medeco 31*0100		6		x		x	x	x	x	x	x	x	x
JD YA7	Yale 1220		7		x			x	x	x	x	x	x

Lever styles

Conventional cylinders shown, SFIC and FSIC also available.

Athens Broadway

Boardwalk Latitude

Longitude Rhodes Tubular

Sparta

Finishes

Warm tone finishes

Bright brass

Satin brass

Satin bronze 643e Aged bronze

Cool tone finishes

619 Satin nickel

625 Bright chrome

626 Satin chrome

626AM Satin chrome with antimicrobial
