CS210 Series

Interconnected lock

The CS210 interconnected lock provides exceptional performance, aesthetics, and flexibility for both residential and commercial applications. The CS210 features single motion egress (retracting both the latch and deadbolt simply by rotating the inside lever) to meet Life and Safety code requirements, while exceeding BHMA Grade 2 requirements for operational usage, security, cycle and finish. Eighteen lever designs, two outside deadbolt designs and two inside escutcheon designs - each in a choice of seven finishes - ensure the right aesthetics for whatever type of project. The adjustable escutcheon allows each lock to easily support either 4" or 5 1 ⁄2" door preps, eliminating any job-site surprises.

Features and benefits

Aesthetics

• § 18 lever styles
• § Two deadbolt designs
• § Two escutcheon designs
• § Seven finishes
• § Suites with F Series and S Series tubular locks

Flexible

• § Field-configurable for 4" or 5 1 ⁄2" door prep
• § Supports 2 3⁄8" or 2 3⁄4" backsets
• § 1 3⁄4" 2" door range standard; 1 3⁄8" available

Key systems

§ Standard, FSIC, and SFIC

Reliable

• § ANSI/BHMA Grade 2 (A156.12)
• § 3 hour UL fire rating

Ordering instructions

Order using standard Schlage order form as follows; images of designs and finishes shown on bottom of page:

CS210 Series interconnected lock
Function	Cylinder	Trim	Finish	Escutcheon	Handing	Door thickness	Options
CS210-B500	P	ACC	626	Plymouth	RH	1 3⁄4"
Lock specifications
Function		CS210-B500 (commercial deadbolt, see picture below) CS210-B60 (residential deadbolt, see picture below)
Cylinder		Standard				SFIC (not available - B60 trim)
		P (Everest 29)			R (Everest 29 FSIC)	G (Everest 29 SFIC)
		L (Less cylinder)				B (Less SFIC)
				T (Construction FSIC)		BDC (Disposable SFIC)
						H (Construction SFIC)
						Z (Everest SL 7 pin Cylinder)
Trim*		ACC, AVA, AVI, BRK, BRW, CLT, CHP, ELA, FLA, JAZ, JUP, LAT, LON, MNH, MER, NEP, SAT, STA
Finish*		605 Bright brass		619 Satin nickel		622 Matte black	643e Aged bronze
		609 Satin brass, blackened		625 Bright chrome		626 Satin chrome
Handing*		LH (Left Hand)			RH (Right Hand)
		LR (Left Hand Reverse)		RR (Right Hand Reverse)
Door thickness		1 3⁄8", 1 3⁄4", 2"
Options		Please see pricebook for available options

^* Split lever designs and finishes available; please see pricebook for details

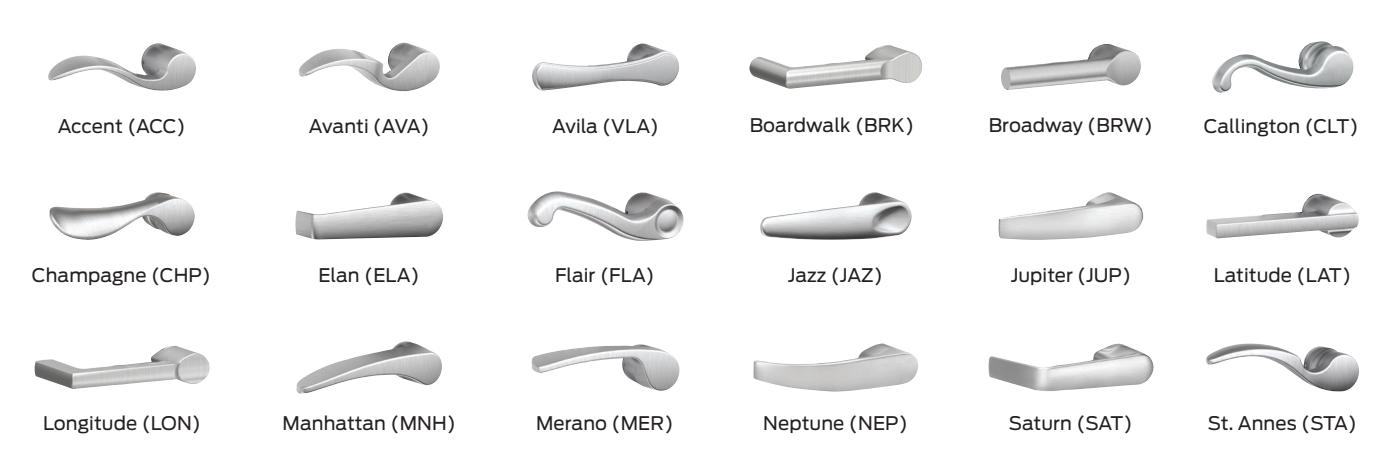

Lever styles

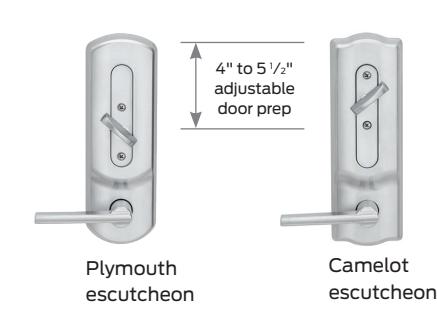

Escutcheon designs

Deadbolt options

B500 trim B60 trim

Finishes

605 Bright brass

609 Antique brass

619 Satin nickel

622 Matte black

Bright chrome 626 Satin chrome

643e Aged bronze
