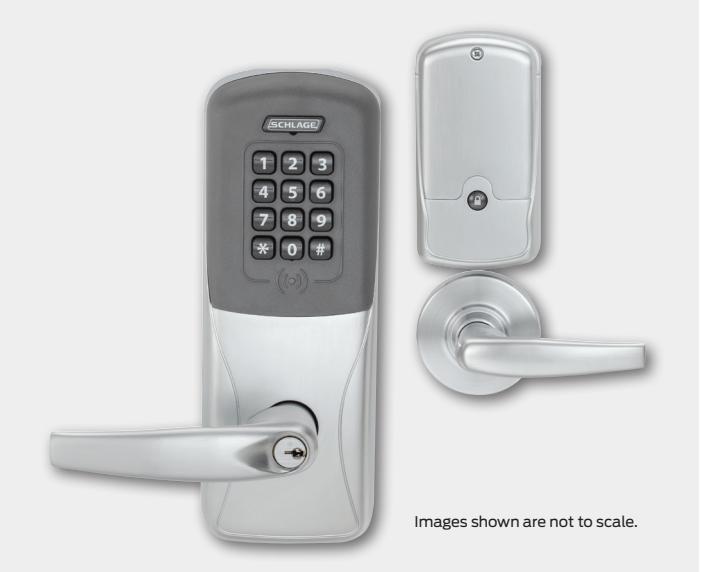

CO-200

Standalone electronic lock

Overview

The CO Series is the ideal solution for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system.

The CO-200 is computer or manually programmable with users rights stored on the lock. The Handheld Device (HHD) used in conjunction with your access control software, allows you to easily add or delete users and retrieve audits.

By issuing electronic credentials you can minimize the number of mechanical keys issued which protects the integrity of your key system. A variety of credential readers are also available including keypad only, magnetic stripe, and proximity. The magnetic stripe and proximity readers are also available with keypad for the added security of dual authentication.

Cylindrical, mortise, mortise deadbolt, and exit trim chassis options are available as well as a wide variety of finishes and levers to suite with your existing hardware.

Mechanical key override is standard and compatible with multiple cylinder types. The CO Series is also compatible with many popular brands and types of exit devices.

The CO Series has been tested the highest standards in the industry to ensure quality and reliability you have come to expect from Schlage. The CO Series is ANSI/BHMA A156.25, ANSI/BHMA Grade 1 certified and UL 294 Listed.

Features and benefits

§ Computer programmable with audit trail
§ Up to 2000 users and up to 2000 audits1
§ Up to 32 holidays and 16 time zones1
§ ANSI/BHMA A156.25, ANSI/BHMA Grade 1 certified, UL 294 listed, FL124002, FL15912, FL130132 and FL14482B2
§ User rights stored on the lock
§ The ability to add and delete users at the lock
§ Available in cylindrical, mortise, mortise deadbolt, and exit trim
§ Compatible with major brands of key systems and exit devices
§ Classroom/storeroom, office, and privacy functions available
§ LED indicator visually communicates lock status

¹ Depending on access control software.

² Applies to cylindrical and mortise chassis only


CO-200 electronic lock specifications
Users	Up to 2,0001
Audits	Up to 2,0001
Credential verification time	≤ 1 second
Visual/audible communications	Tri-colored LED's and audible indicators
Power supply	4 AA batteries (standard off the shelf: included)
Voltage range	4 VDC to 7 VDC
Max current requirement	Up to 250 mA
Battery life	Up to 2 yrs with 4AA batteries
Operating temperature - exterior	-31° to 151°F (-35° to 66°C)
Operating temperature - interior	32° to 120°F (0° to 49°C) due to batteries
Operating humidity	0 - 100% non-condensing
Certifications	ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294, UL 10C, UL Canada, FCC Part 15, ADA and RoHS

Functions

§ Classroom/storeroom2
§ Office2
§ Privacy3

Standard status signals

§ Mechanical key override
§ Battery status indicated by blinking lights
§ Access granted/access denied
§ Programming commands

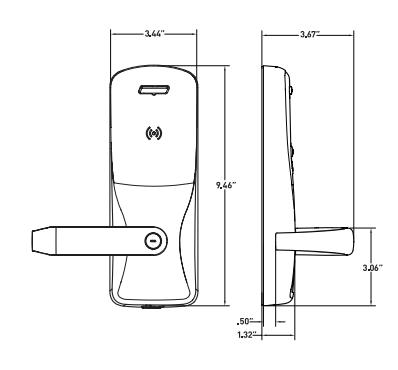

Exterior of the lock

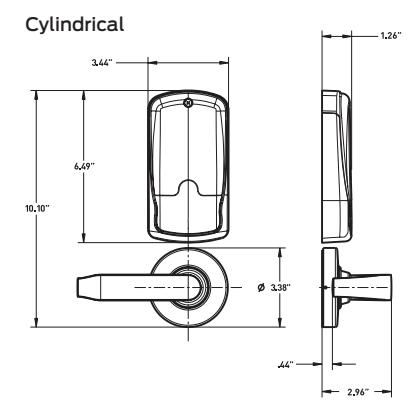

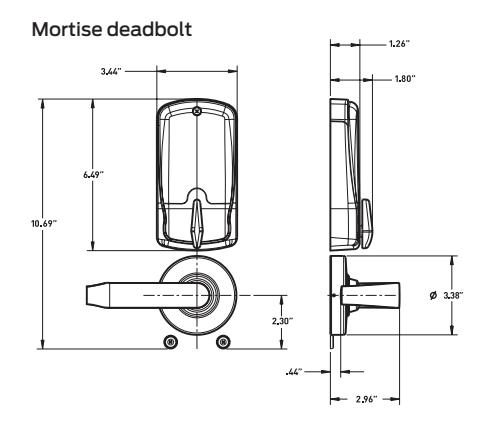

Interior of the lock

Schlage Utility Software on Handheld Device

The Schlage Utility Software (SUS) on the Handheld Device (HHD) provides an easy way to manage people, audits and locks for simple access control management.

Schlage Utility Software

§ Initialize lock and accessories
§ Field configure devices
- Credential reader formats
Lock function
Unlock period
Failure mode
Audible alarm on/off
§ Service and diagnostics
- Battery status
- Validate hardware and software revision
Troubleshooting status signals
§ New device template simplifies configuration

HHD

§ 3.5 inch display
§ Touch screen/keypad backlit
§ 32-bit processor
§ OS: Windows Mobile 6.5
§ Memory: 128 MB RAM/ 256 MB ROM
§ Battery: rechargeable Li-ion
§ Dimensions: 5.1" x 2.8" x 0.65" (13.0 cm x 7.2 cm x 1.7 cm)
§ Weight: 0.42 lbs (190 g)
§ 5 ft (1.2 m) drop to steel surface, 2 drops per 6 sides

For replacement HHD devices with a serial cable connection, please contact Technical Support at 877.671.7011.

¹ Depending on access control software.
² Classroom/storeroom and office function not available with mortise deadbolt option. To ensure safety, all functions always allow for free egress.
³ Door position switch is required for cylindrical and mortise chassis with privacy function.

Mechanical	specifica	ations
Chassis	Cylindrica	l	Mortise		Exit trim
Handing		Н	anded to order	, field reversible
ANSI standard (Meets or exceeds)	A156.25 A156.2 Sei Grade 1	ries 4000	A156.25 A156.13 Se Grade 1	ries 1000	A156.25 A156.3
Door thickness	1	3/4" standard, 1 3/8	" to 2 ³ / ₄ " optic	onal (available in 1/8"	increments)
Backset	Standard: Optional:	2 ³ / ₄ " 2 ³ / ₈ ", 3 ³ / ₄ ", 5"	2 3/4" only		Defined by exit device
Latch bolt	0101100101	1/2" throw 3/4" throw	0.0000.01	3/4" throw 1" throw on mortise deadbolt	Provided by exit device
Levers			Pressure cast	t zinc, plated
Strike		1 ³ / ₁₆ " lip, ANSI, 1 ³ Additional config please see price	gurations availa	able	Provided by exit device
Cylinder and keys	Schlage 6-pin Everest 29 S123 keyway Conventional cylinder with two patented keys standard. Additional options available including SFIC, FSIC and competitor brands. See lever and cylinder compatibility data sheet (010432)
Exit device compatibility	See CO Se	eries exit trim com	oatibility data s	sheet (004183)

Small Format Interchangeable Core

The combo proximity keyfobs with iButton® option are available which allows you to manage proximity and iButton® technologies in the same facility.

Reader specifications

	Keypad	Magnetic stripe	Proximity
Frequency standards	N/A	ABA, ISO76XX standard high and low coercivity	125 kHz
Maximum read range	N/A	N/A (swipe card)	up to 1.25"
Compatibility	3-6 digit pin code	Triple track reader (1, 2 or 3), field configurable	Schlage, XceedID® HID®, GE/CASI ProxLite™ and AWID®
Compatible XceedID/ Schlage credentials	N/A	Configurable to read complete track 1, 2 or 3	125 kHz clamshell, ISO card, ISO card with magnetic stripe, keyfob, and PVC disk (7000 Series)
Style/layout	12-button, 3x4 matrix	Option for 12-button, 3x4 matrix	Option for 12-button, 3x4 matrix

Available CO-200 reader options

Keypad

Proximity KEYPAD

Proximity

Magnetic stripe

Magnetic stripe ■ KEYPAD

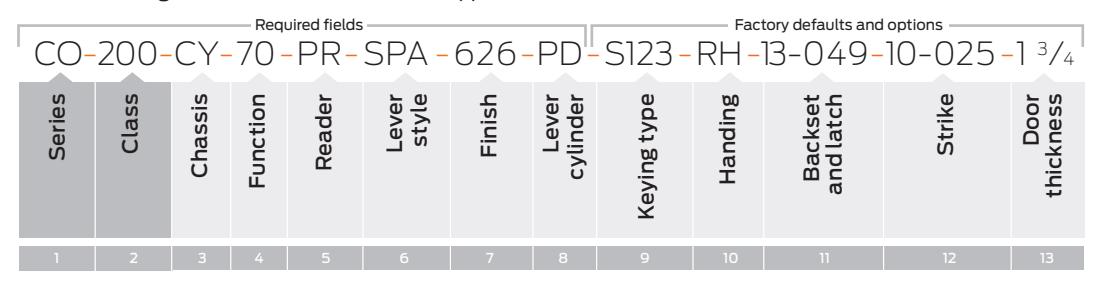

Ordering information

Available through one of our GSA schedule 84 approved distributions

Selections correspond with the numbers above

Standard options are indicated in bold. See price book for specific configuration options.


3	Chassis
CY	Cylindrical
MS	Mortise
MD	Mortise deadbolt
993R	Exit trim – Rim/CVC/CVR
993S	Exit trim – SVR
993M	Exit trim – mortise
993DT	Exit dummy trim
4	Function
70	Classroom/storeroom
50	Office
40	Privacy
5	Reader

KP	Keypad
MS	Magnetic stripe
MSK	Magnetic stripe + keypad
PR	Proximity
PRK	Proximity + keypad
6	Lever
ATH	Athens
BRK	Boardwalk
BRW	Broadway
LAT	Latitude
LON	Longitude
RHO	Rhodes
SPA	Sparta
TLR	Tubular Available with tactile warning options

7	Finish
626	Satin chrome
605	Bright brass
606	Satin brass
612	Satin bronze
619	Satin nickel
625	Bright chrome
643e	Aged bronze
626AM	Satin chrome antimicrobial
8	Lever cylinder type
PD	Schlage 6-pin Conventional
	key-in-lever cylinder
See price book for other SFIC, FSIC and less cylinder options available. Compatible with Schlage, Sargent, Corbin, Medeco and Yale.
9	Keyway type
S123	Everest 29

9	Keyway type
S123	Everest 29

See price book for other available keyway options including restricted keyways in Primus XP high security cylinders and master keying

10	Handing
RH	Right handed
RHR	Right handed reverse
LH	Left handed
LHR	Left handed reverse
Field reversible

11 Backset and latch or armor front

Cylindrical

13-049 2 3⁄4" backset, deadlatch, square corner, 1 1 ⁄8" x 2 1 ⁄4"

Mortise

09-663 Armor front, 1 1 ⁄4" wide,

square corner

See price book for mortise deadbolt and other backset and latch options or armor front options

12 Strike

Cylindrical

10-025 1 3⁄16" lip, ANSI, no box,

1 1 ⁄4" x 4 7 ⁄8"

Mortise

10-072 1 3⁄16" lip, 1 1 ⁄4" x 4 7 ⁄8"

square corner, box

See price book for other available strikes

13 Door thickness

1 3⁄4"

Other thicknesses available between

1 3⁄8" and 2 3⁄4"

See price book for detail

Finishes

Warm tone finishes

605

Satin bronze

Aged bronze

Bright brass Cool tone finishes

Satin brass

Satin nickel

619

625 Bright chrome

626 Satin chrome

626AM Satin chrome with antimicrobial

Conventional cylinders shown, SFIC and FSIC also available.

Athens Broadway Boardwalk Latitude

Sparta

Lever styles

Longitude Rhodes Tubular
