B500 Series

Commercial deadbolts

Overview

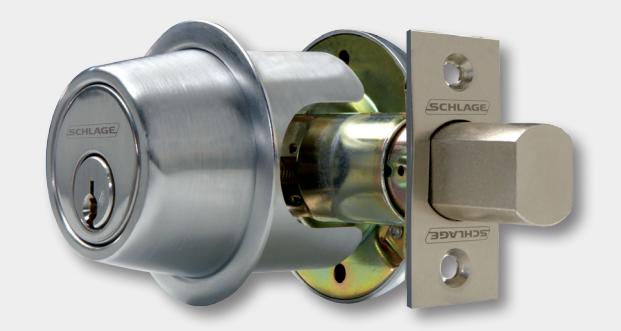

The B500 Series deadbolt from Schlage is the toughest, most versatile deadbolt in the business. Designed by locksmiths for locksmiths, the B500 Series deadbolt accepts every Schlage cylinder on the market, fits virtually every door you service, enhances lock strength on the jamb side of the door, and will change forever the way you look at deadbolts.

Functions

• § B560 Single cylinder deadbolt lock
• § B561 One-way deadbolt lock
• § B562 Double cylinder deadbolt lock
• § B563 Classroom deadbolt lock
• § B571 Door bolt occupancy indicator
• § B580 Door bolt (no outside trim)
• § B581 Door bolt (with outside blank plate)

Features and benefits

• § ANSI A156.5, 2001 Grade 2
• § Available UL Listed for three-hour fire door
• § Quick, easy installation
• § Adjustable backset locks into place
• § Anti-pry shield protects latch from attacks
• § Metal dust box provides deep anchoring and added strength
• § Primary or auxiliary locking for commercial buildings
• § High security locking for residential buildings
• § Can be suited with virtually all Schlage levers and knobs

Ordering instructions

Order using standard Schlage order form as follows:

B Series deadbolts
Function	Cylinder	Latch suffix	Strike	Finish	Door thickness	Options
B560	P	12-288	10-092	626	1 3⁄4"	F
Lock specifications
Function	B560, B561, B562, B563, B571, B580, or B581
Latches	12-288 Square corner (1" x 2 1 ⁄4") 2-289 Round corner (1 ⁄4" radius) 12-290 Circular deadbolt		12-287 Triple option 12-291 Square corner (1 1 ⁄8" x 2 1 ⁄4")
Cylinder	P (Everest 29 standard cylinder) L (Less cylinder) C (Less double cylinder)		R (Everest 29 S123 FSIC) J (Less FSIC) T (Construction FSIC)		G (Everest 29 R family SFIC) B (Less SFIC) BDC (Disposable SFIC) HD (Construction SFIC)
	Leave cylinder code blank if cylinder not applicable
Finish	605 Bright brass		612 Satin bronze		625 Bright chrome		643e Aged bronze
	606 Satin brass		613 Oil rubbed bronze		626 Satin chrome
	609 Antique brass		619 Satin nickel		626AM Satin chrome anti-microbial
Door thickness	1 3⁄8" - 1 7 ⁄8" standard; see pricebook for additional thicknesses
Options	Specify "F" for UL Listed fire rating. See pricebook for additional options

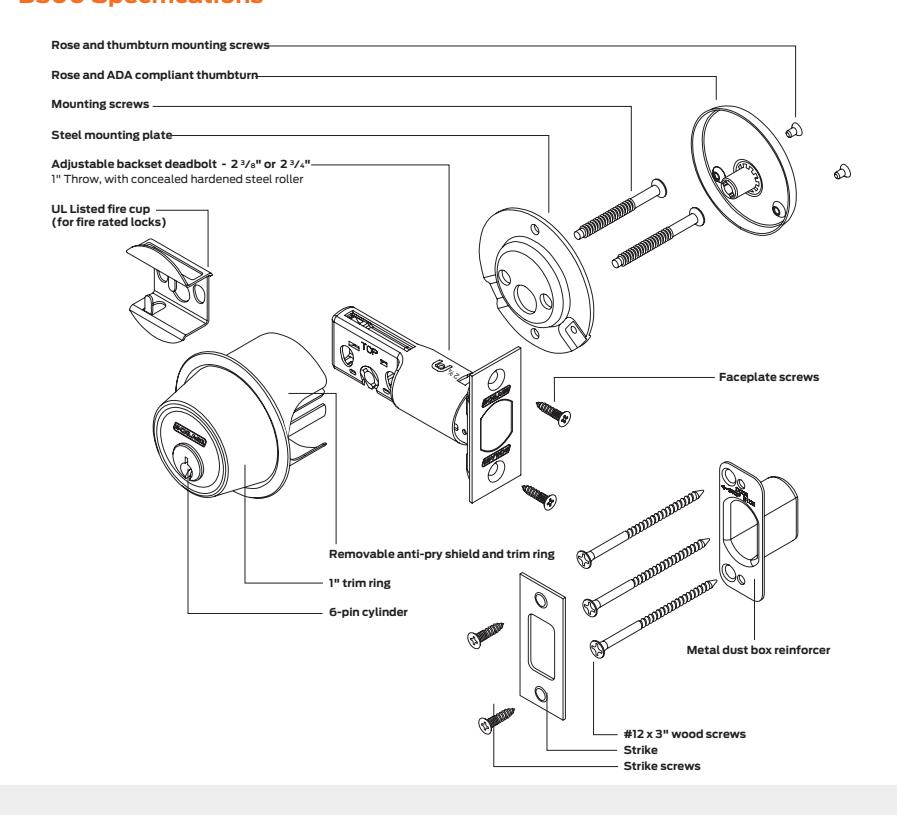

B500 Specifications Finishes

605 Bright brass

606 Satin brass 609

Antique brass

Satin bronze

613 Oil rubbed bronze

619 Satin nickel

626

Satin chrome

626AM Satin chrome anti-microbial

625 Bright chrome

643e Aged bronze
