Introduction

This manual contains a complete listing of A-Series (Grade 2) cylindrical lock parts and assemblies manufactured by the Schlage Lock Company. This manual lists components of A-Series locks manufactured after 1984.

Exploded views of each lock chassis and trim assemblies are provided with an accompanying chart to identify parts for replacement purposes. In addition, this manual provides lock trim ordering procedures, general cylinder information, and all auxiliary components of the A-Series cylindrical locks.

Standard Features*

Certifications ANSI A156.2, 2003, Series 4000, Grade 2, UL Listed for 3-hour fire door.
Latchbolt Z\x" throw, brass, chrome plated, deadlocking on keyed and exterior functions.
Strike T-Strike 1Z" x 2C\v", Square corner, box.
Backset 2C" standard

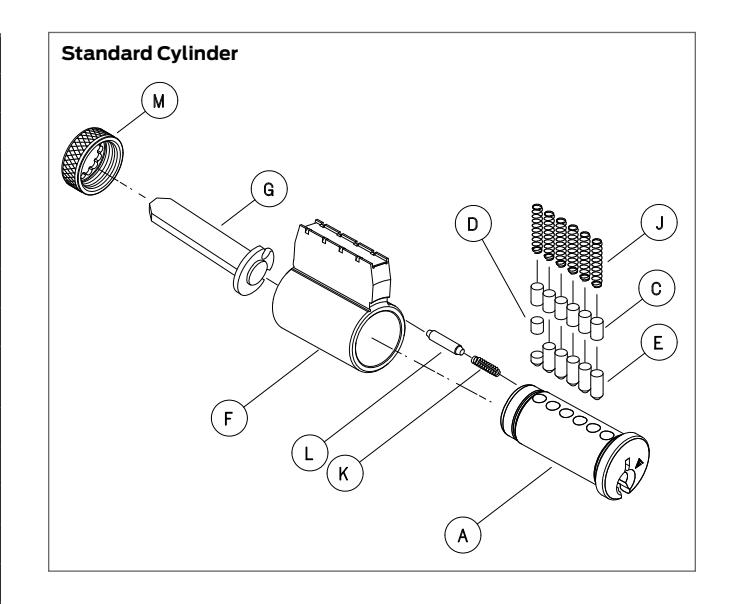

Cylinder 6-Pin solid brass, keyed 6-pin, C123 keyway, keyed different (KD)**
Door Range 1C" - 1M"

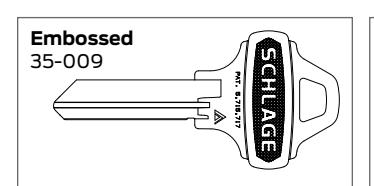

Keys Two nickel silver cut keys per lock, 6-pin, C123 section**

* Locks are furnished with standard features unless otherwise specified.

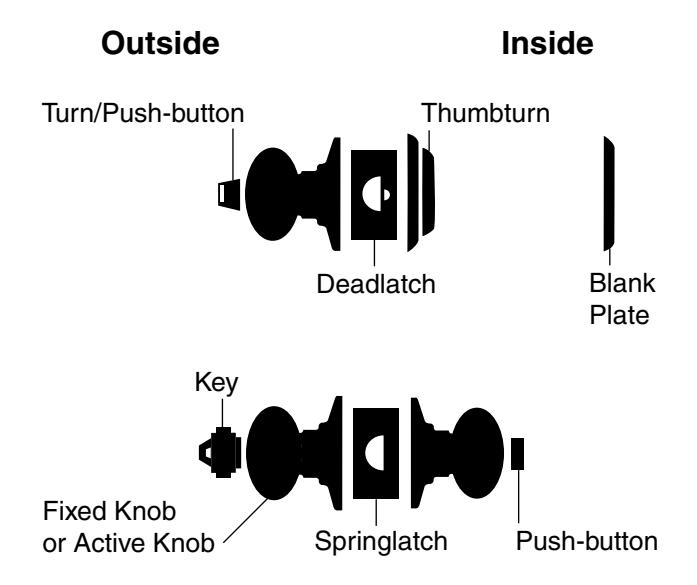

Lock Assembly Drawing Index

The Lock Assembly Drawing Index provides visual representations and textual descriptions of available functions. Page numbers for full trim and chassis drawings are referenced.

** Items specified in C keyway will be furnished with cylinder keyed 5-pin and with 5-pin keys unless otherwise specified.

Function ANSI/BHMA A156.2, 2003, Series 4000, Grade 2 Chassis
SCHLAGE ANSI DESCRIPTION OUTSIDE FUNCTION INSIDE FUNCTION and Trim
Page
A10S F75 Passage Latch Both knobs always unlocked. 8
A25D Exit Lock Blank plate outside. Inside knob always unlocked. Specify
door thickness, 1C" or 1C\v". 		9
A30D F77 Patio Lock Push-button locking. Turning inside knob
or closing door releases button,
preventing lock-out. 		10

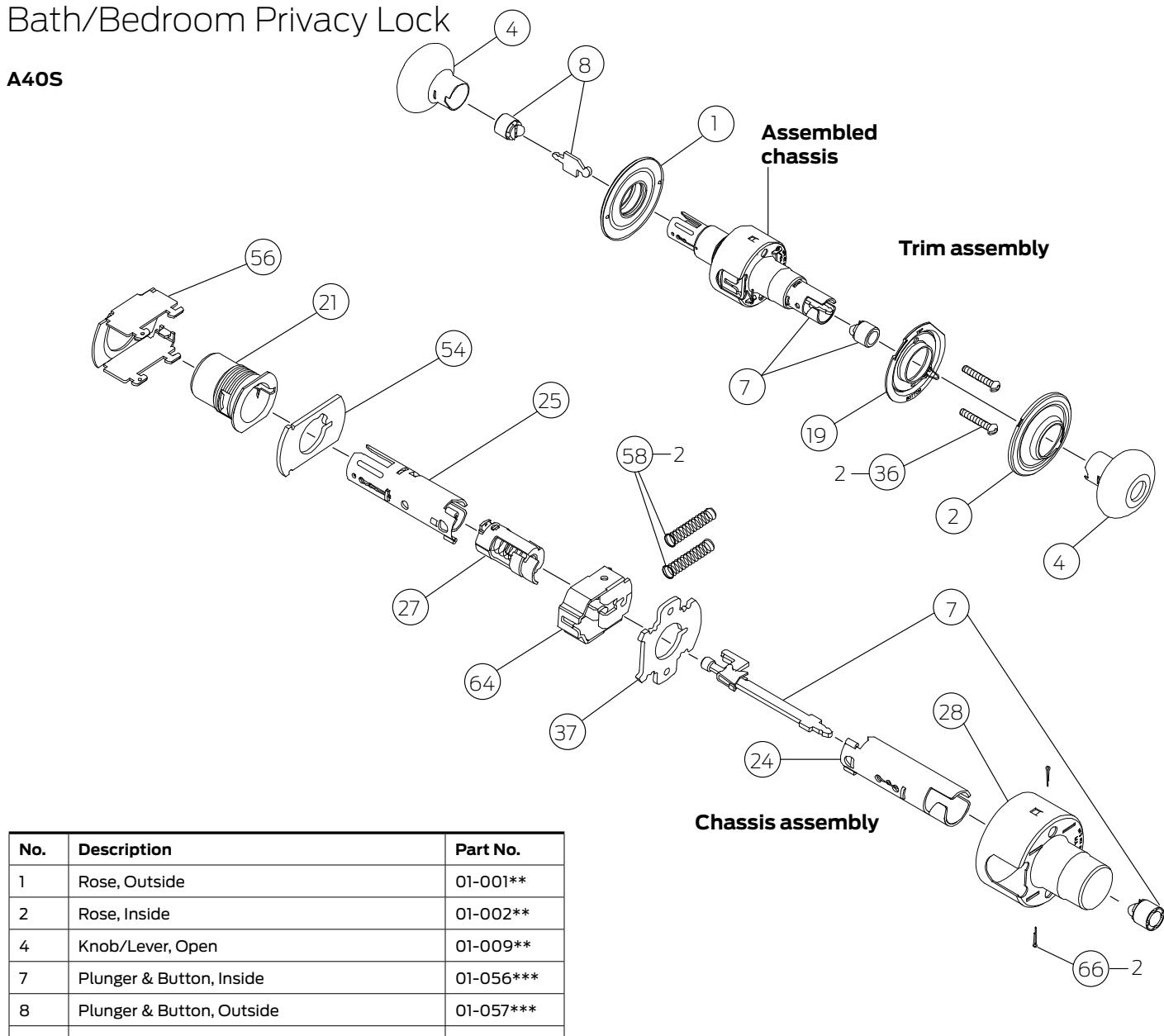

A40S F76 Bath/Bedroom
Privacy Lock 		Can be opened from outside with small
screwdriver when locked with inside
push-button. 		Push-button locking. Turning inside knob
or closing door releases button. 		11

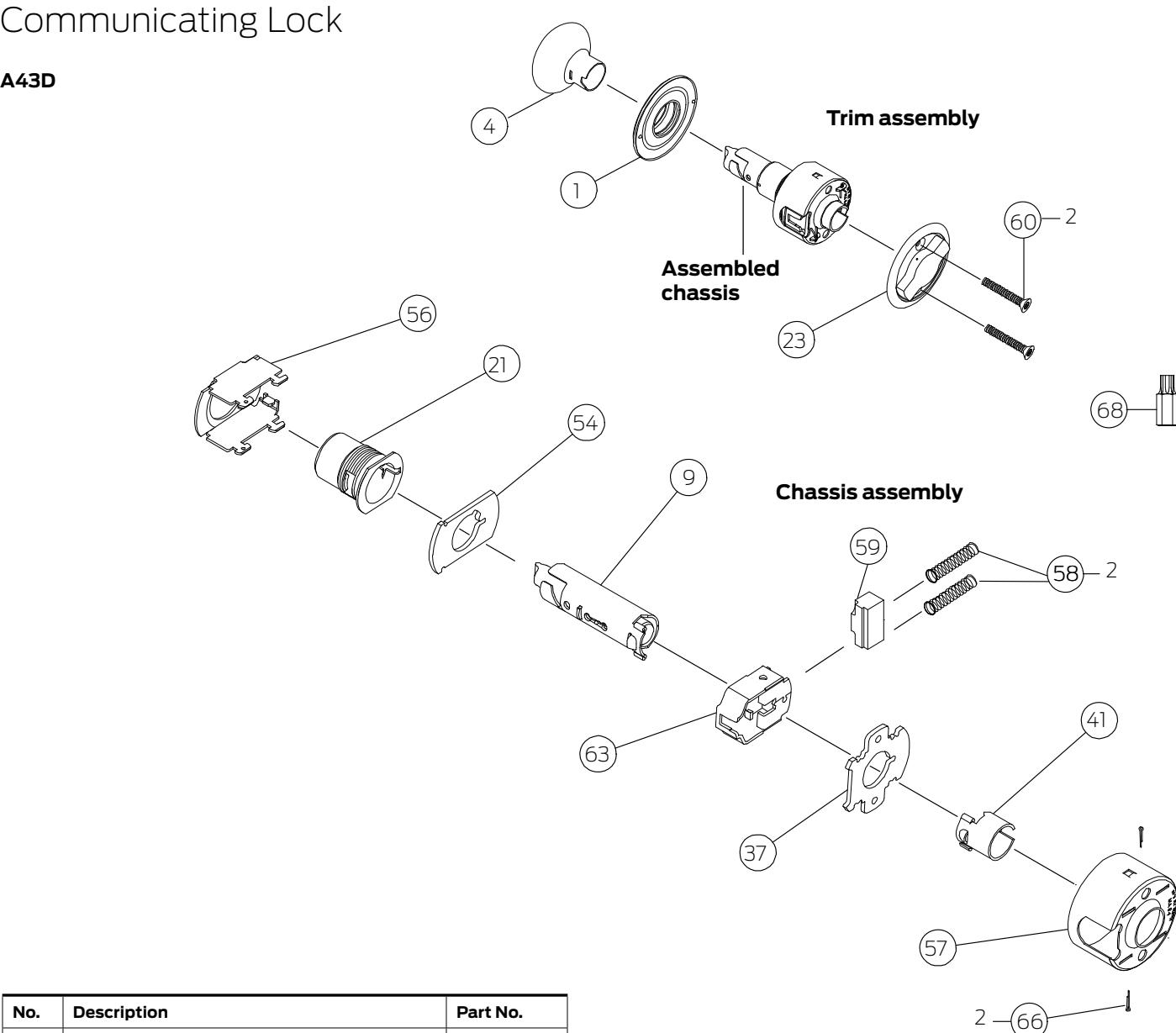

A43D F79 Communicating Lock Turn-button in outside knob locks and
unlocks outside knob and inside
thumbturn. 		Inside thumbturn locked and unlocked by
outside turn-button. 		12
A53PD F109 Entrance Lock Can be opened from outside with small
screwdriver or emergency release tool. 		Push-button locks outside lever. Turning
inside lever or closing door releases
button. Inside lever is always free for
immediate egress. 		13

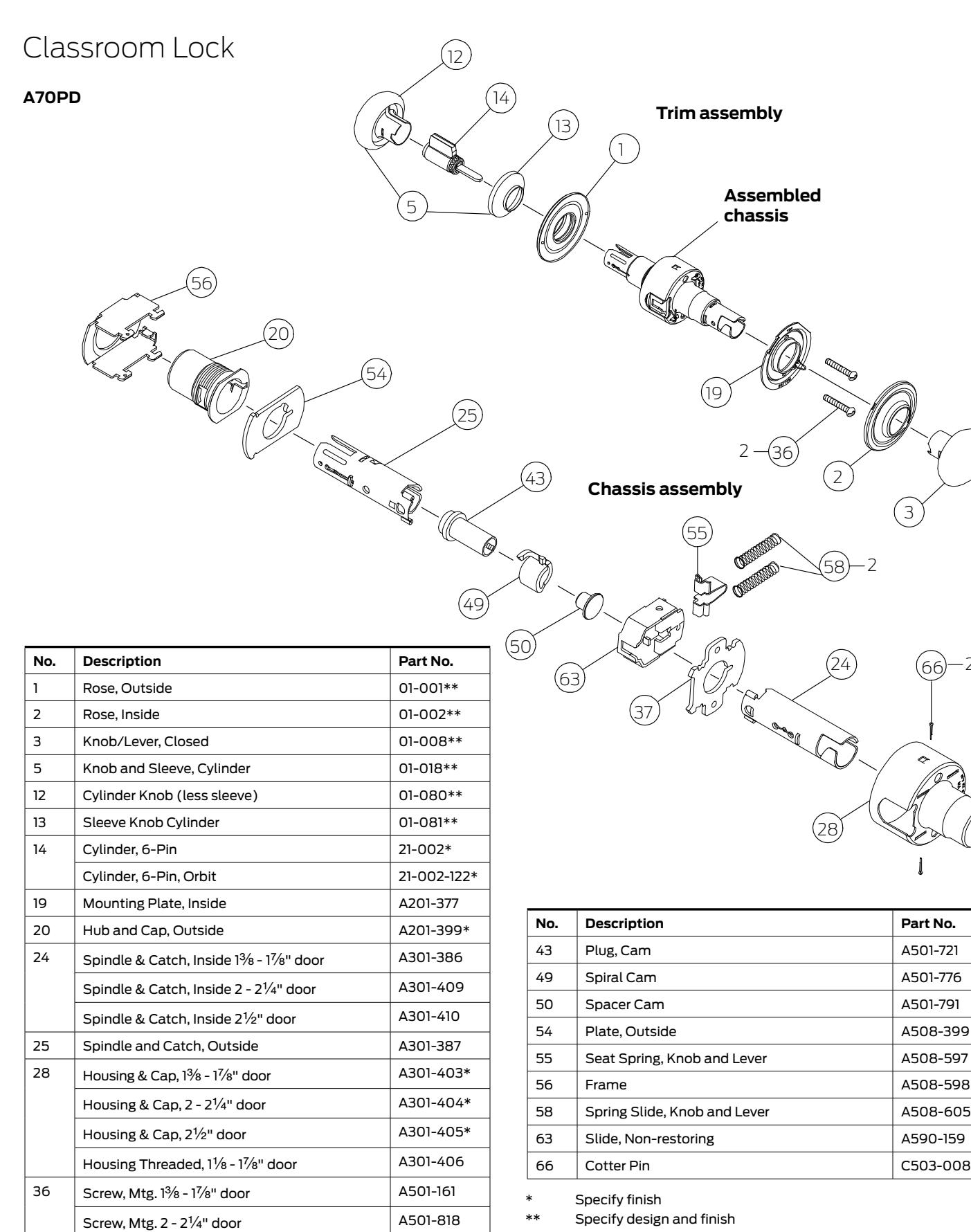

A70PD F84 Classroom Lock Outside knob locked and unlocked by
key. 		Inside knob is always unlocked. 14

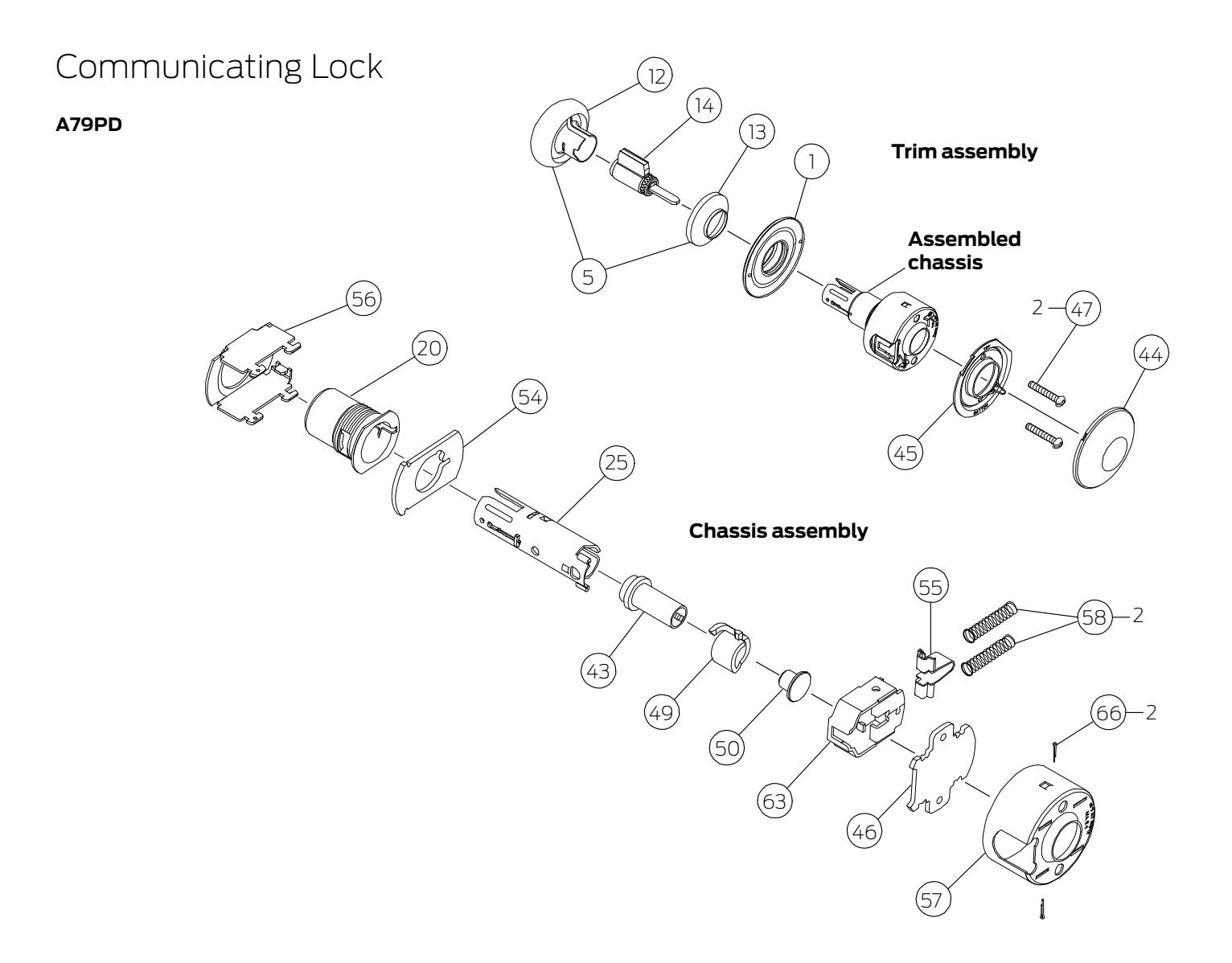

A79PD Communicating Lock Locked or unlocked by key from outside. Inside knob is always unlocked. 15

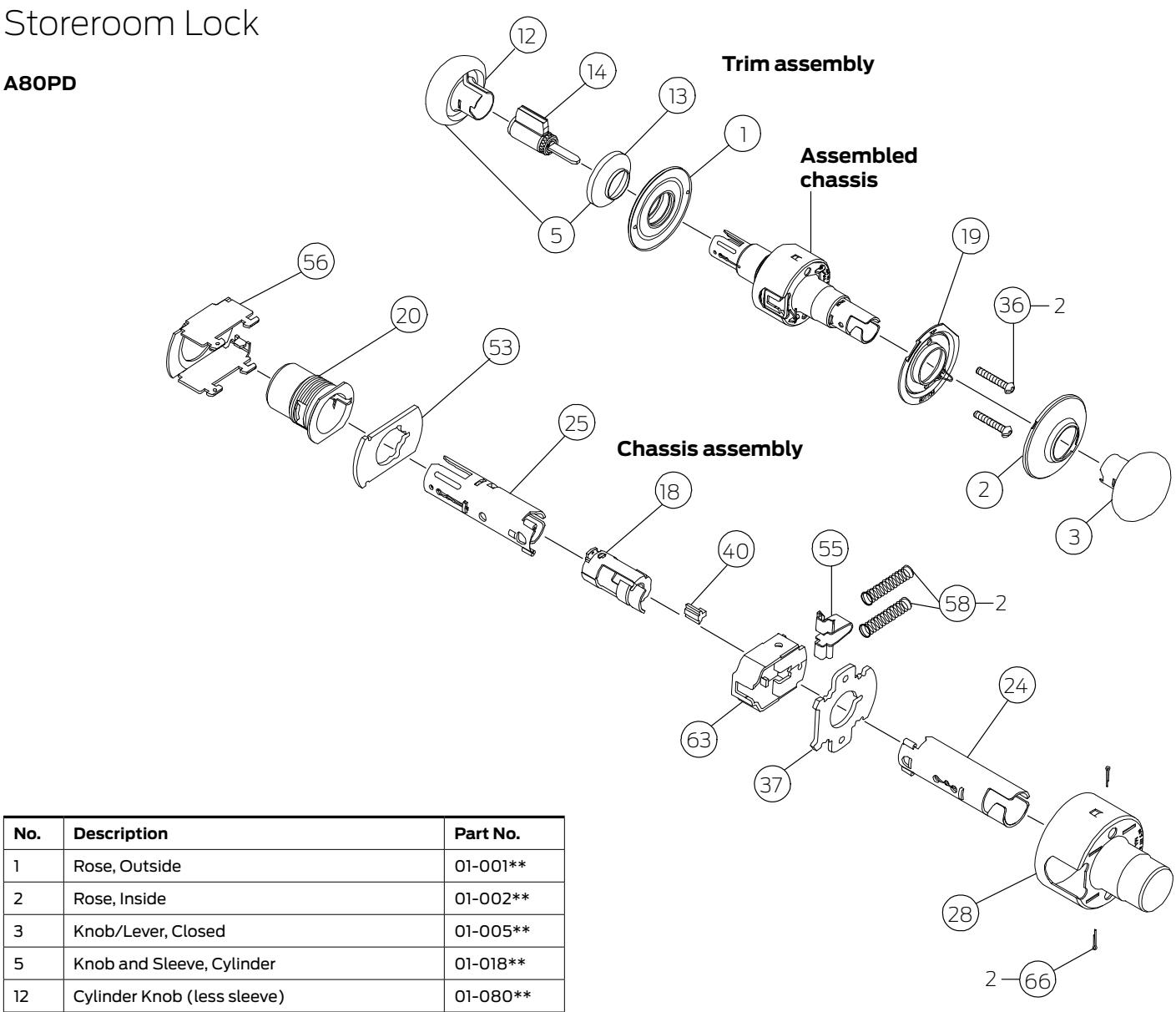

A80PD F86 Storeroom Lock Outside knob is fixed.
Entrance by key only. 		Inside knob is always unlocked. 16

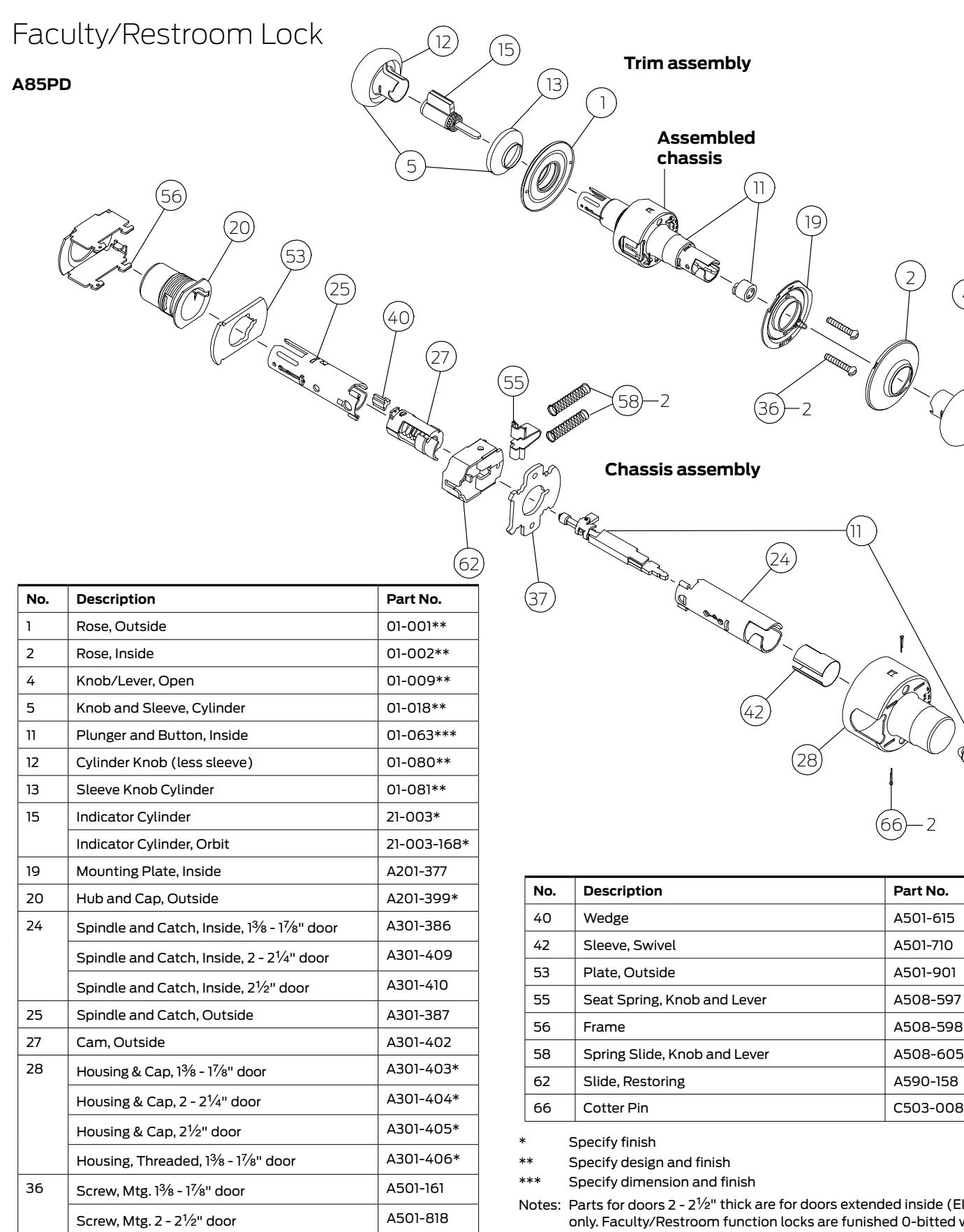

A85PD F93 Faculty/Restroom
Lock (with Indicator
Cylinder) 		Outside knob is fixed. Entrance by key
only. 		Push-button in inside knob activates
visual occupancy indicator, allowing only
emergency master key to operate.
Turning inside knob or closing door
releases visual occupancy indicator.
Rotation of inside spanner-button
provides lock-out feature by keeping
indicator thrown. 		17
A170 Single Dummy Dummy trim for one side of the door.
Used fo door pull or as matching inactive
trim. 		18

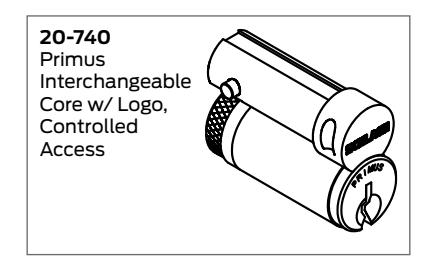

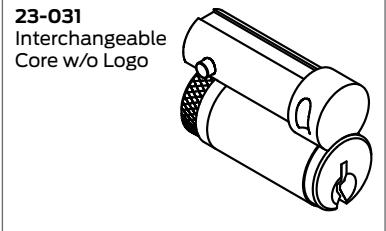

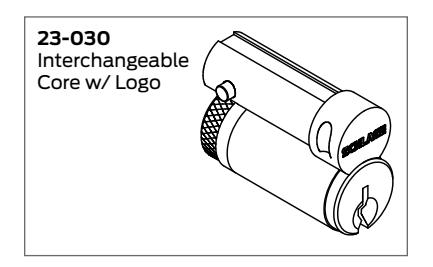

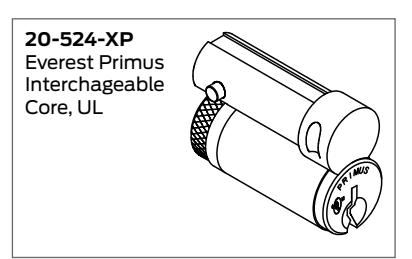

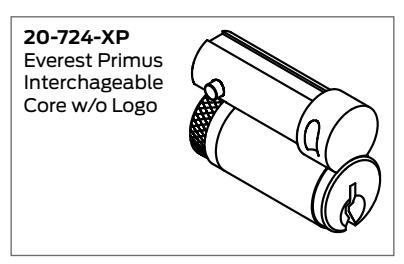

Keyed functions available with full size interchangeable core option for Orbit design.

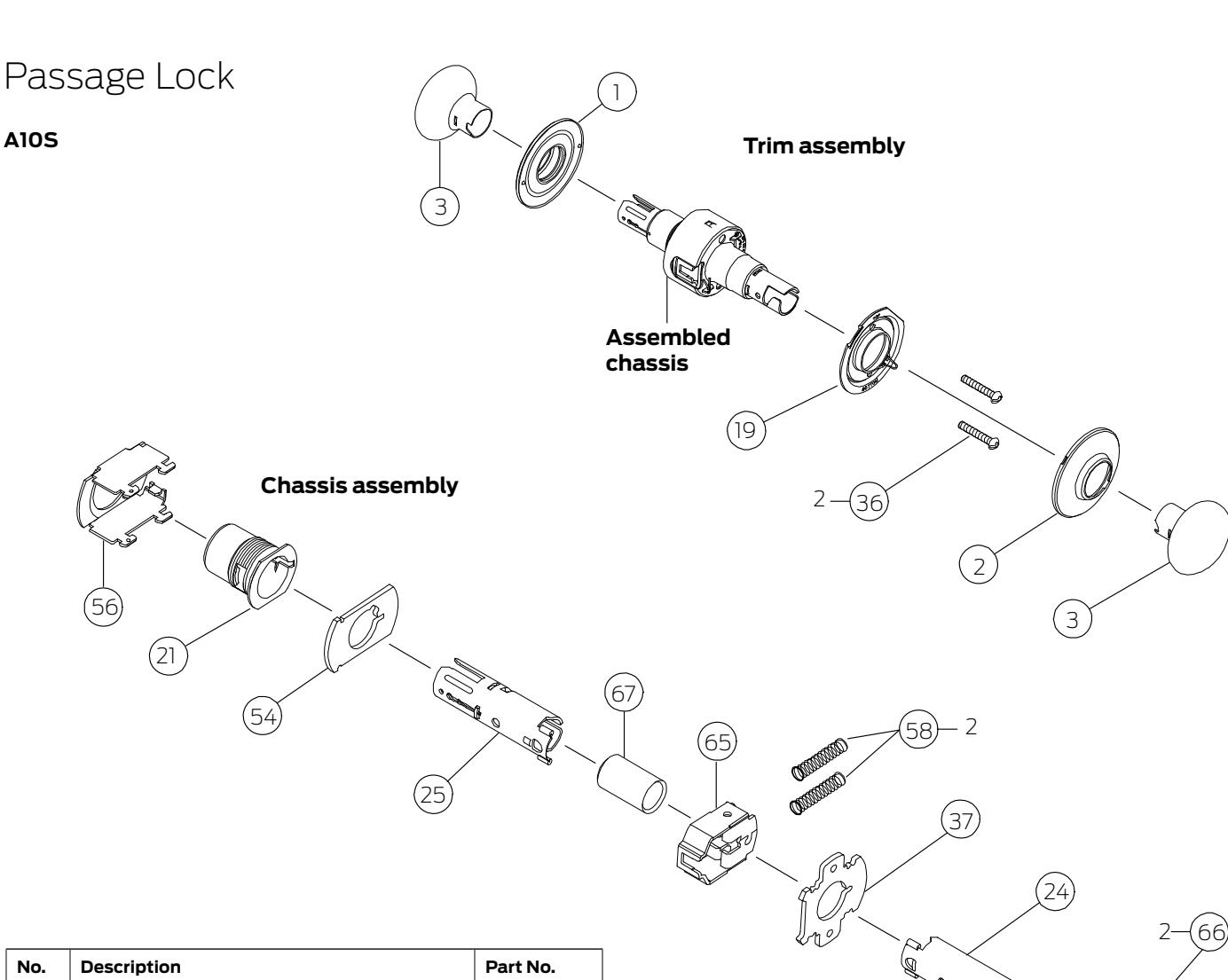

Chassis and Assemblies

No. Description Part No.
1 Rose, Outside 01-001**
2 Rose, Inside 01-002**
3 Knob/Lever, Closed 01-008**
19 Mounting Plate, Inside A201-377
21 Hub & Cap, Outside A201-406*
24 Spindle & Catch, Inside 1C - 1M" door A301-386
Spindle & Catch, Inside 2 - 2Z\v" door A301-409
Spindle & Catch, Inside 2Z\x" door A301-410
25 Spindle & Catch, Outside A301-387
28 Housing & Cap, 1C - 1M" door A301-403*
Housing & Cap, 2 - 2Z\v" door A301-404*
Housing & Cap, 2Z\x" door A301-405*
Housing Threaded, 1Z - 1M" door A301-406*
36 Screw, Mtg. 1C - 1M" door A501-161
Screw, Mtg. 2 -2Z\x" door A501-818
37 Plate, Inside A501-305
54 Plate, Outside A508-399
56 Frame A508-598
No. Description Part No.
58 Spring, Slide, Knob & Lever A508-605
65 Slide, Non-restoring A590-181
66 Cotter Pin C503-008
67 Plug, Spindle G570-232

* Specify finish

** Specify design and finish

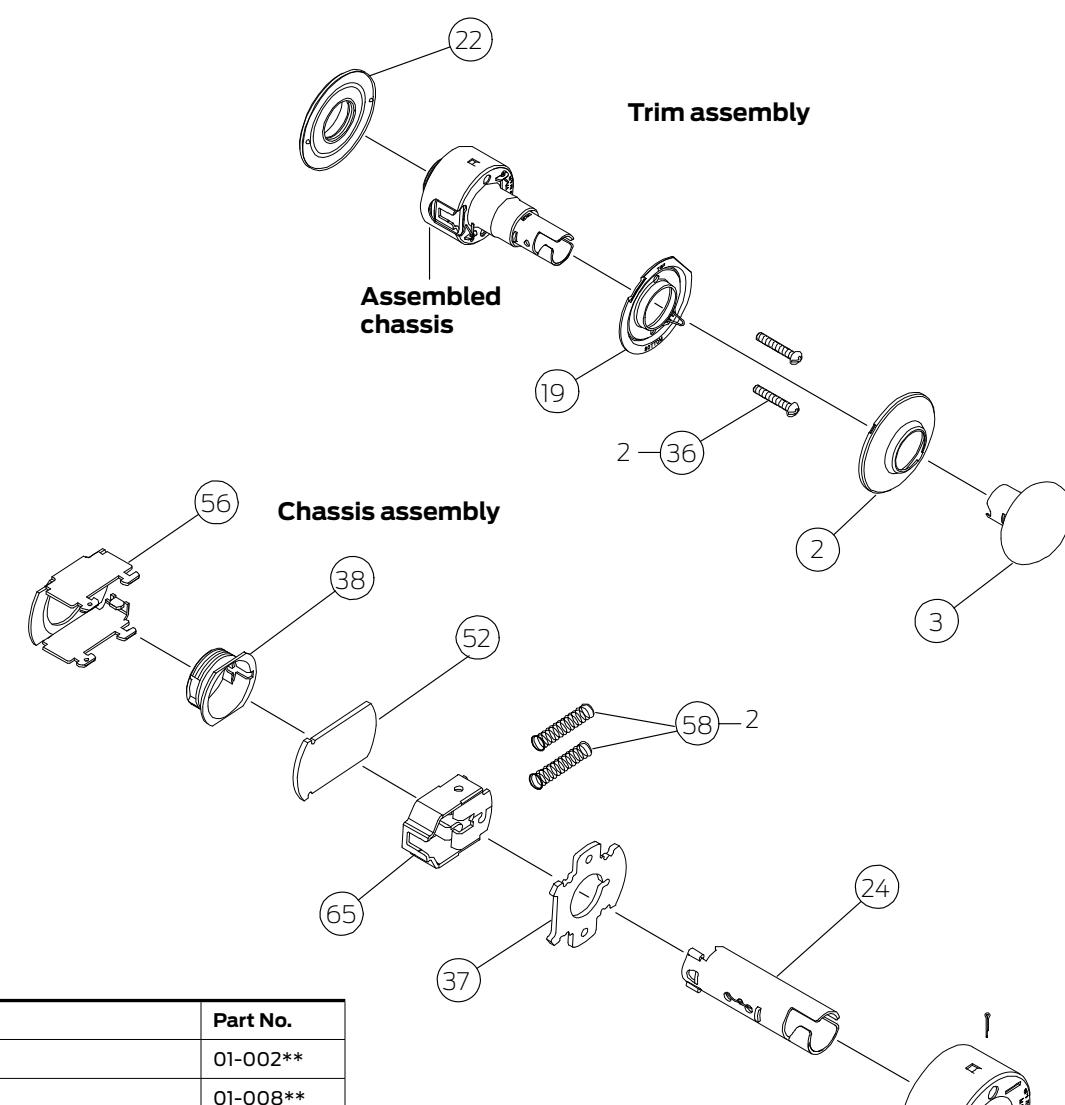

Exit Lock

A25D

No. Description Part No.
2 Rose, Inside 01-002**
3 Knob/Lever, Closed 01-008**
19 Mounting Plate, Inside A201-377
22 Rose, Outside A201-558*
24 Spindle & Catch, Inside 1C - 1M" door A301-386
Spindle & Catch, Inside 2 - 2Z\v" door A301-409
Spindle & Catch, Inside 2Z\x" door A301-410
28 Housing & Cap, 1C - 1M" door A301-403*
Housing & Cap, 2 - 2Z\v" door A301-404*
Housing & Cap, 2Z\x" door A301-405*
Housing Threaded, 1Z - 1M" door A301-406*
36 Screw, Mtg. 1C - 1M" door A501-161
Screw, Mtg. 2 -2Z\x" door A501-818
37 Plate, Inside A501-305
38 Hub, 1C - 1Z\x" door A501-498
Hub, 1B -1M" door A501-499
52 Plate, Outside A501-874
56 Frame A508-598
No. Description Part No.
65 Slide, Non-restoring A590-181
66 Cotter Pin C503-008

28

2

66

* Specify finish

** Specify design and finish

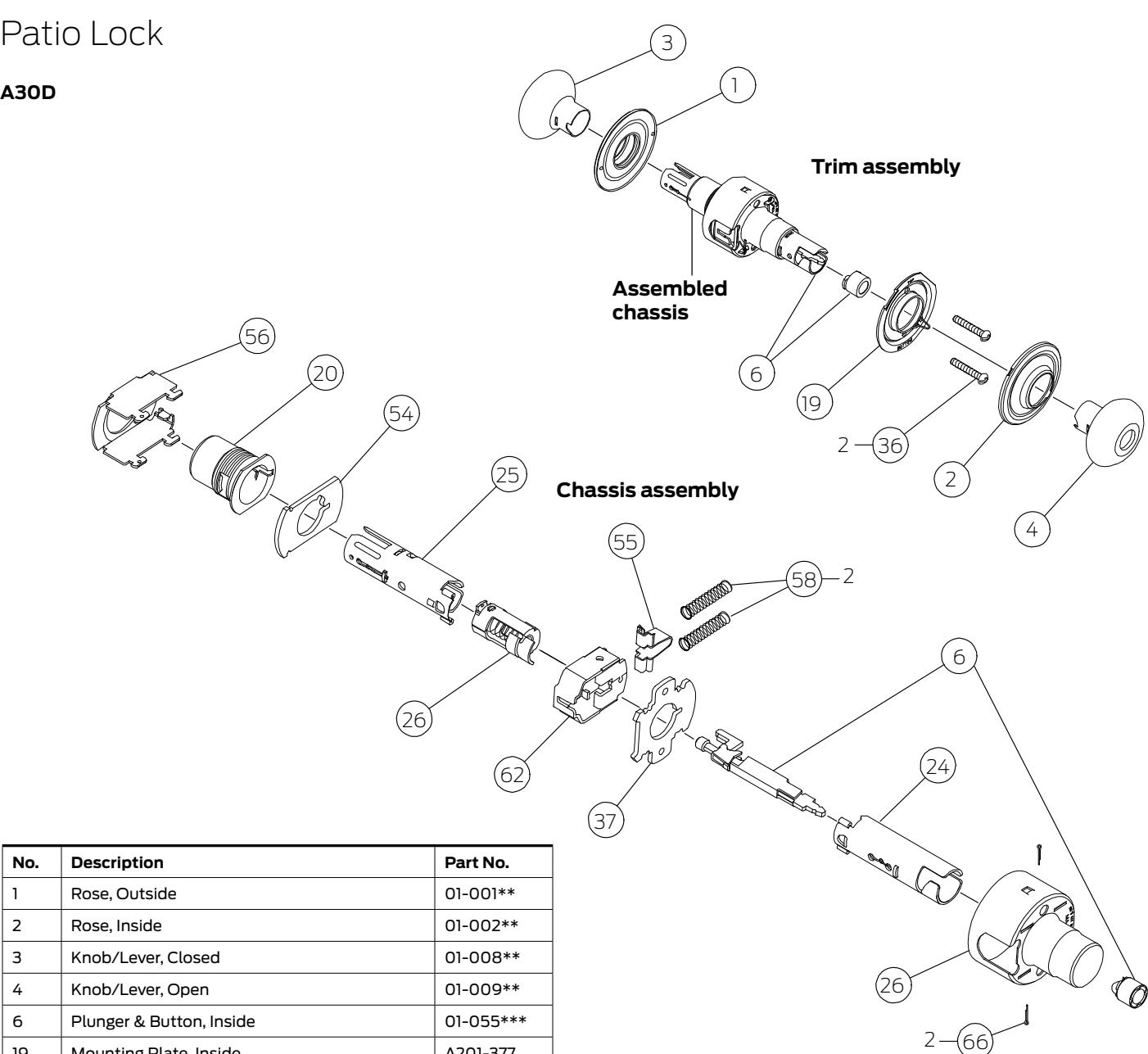

No. Description Part No.
1 Rose, Outside 01-001**
2 Rose, Inside 01-002**
3 Knob/Lever, Closed 01-008**
4 Knob/Lever, Open 01-009**
6 Plunger & Button, Inside 01-055***
19 Mounting Plate, Inside A201-377
20 Hub and Cap, Outside A201-399*
22 Rose, Outside A201-558
24 Spindle & Catch, Inside C - 1M" door A301-386
Spindle & Catch, Inside 2 - 2Z\v" door A301-409
Spindle & Catch, Inside 2Z\x" door A301-410
25 Spindle and Catch, Outside A301-403
28 Housing & Cap, 1C - 1M" door A301-403*
Housing & Cap, 2 - 2Z\v" door A301-404*
Housing & Cap, 2Z\x" door A301-405*
Housing Threaded, 1Z - 1M" door A301-406*
37 Plate, Inside A501-305
54 Plate, Outside A508-399
No. Description Part No.
55 Seat Spring, Knob & Lever A508-597
56 Frame A508-598
62 Slide, Restoring A590-158
55 Seat Spring, Knob & Lever A508-597
56 Frame A508-598
62 Slide, Restoring A590-158

** Specify design and finish

*** Specify dimension and finish

No. Description Part No.
1 Rose, Outside 01-001**
2 Rose, Inside 01-002**
4 Knob/Lever, Open 01-009**
7 Plunger & Button, Inside 01-056***
8 Plunger & Button, Outside 01-057***
19 Mounting Plate, Inside A201-377
21 Hub and Cap, Outside A201-406*
24 Spindle & Catch, Inside 1C - 1M" door A301-386
Spindle & Catch, Inside 2 - 2Z\v" door A301-409
Spindle & Catch, Inside 2Z\x" door A301-410
25 Spindle and Catch, Outside A301-403
27 Cam, Outside A301-402
28 Housing & Cap, 1C - 1M" door A301-403*
Housing & Cap, 2 - 2Z\v" door A301-404*
Housing & Cap, 2Z\x" door A301-405*
Housing Threaded, 1Z - 1M" door A301-406*
36 Screw, Mtg. 1C - 1M" door A501-161
Screw, Mtg. 2 - 2Z\x" door A501-818
No. Description Part No.
37 Plate, Inside A501-305
54 Plate, Outside A508-399
56 Frame A508-598
58 Spring Slide, Knob & Lever A508-605
64 Slide, Restoring A590-180
66 Cotter Pin C503-008

** Specify design and finish

*** Specify dimension and finish

No. Description Part No.
1 Rose, Outside 01-001**
4 Knob/Lever, Open 01-009**
9 Plunger and Button, Outside 01-058***
21 Hub and Cap, Outside A201-406*
23 Turn and Plate, Inside A201-688*
37 Plate, Inside A501-305
41 Spindle, Inside, 1C - 1M" door A501-633
Spindle, Inside, 2Z\v" door A500-001
Spindle, Inside, 2Z\x" door A500-002
54 Plate, Outside A508-399
56 Frame A508-598
57 Housing A508-600
58 Spring Slide, Knob & Lever A508-605
59 Stop Slide A508-641
No. Description Part No.
60 Screw, Mtg. 1C - 1M" door A508-649*
Screw, Mtg. 2 - 2Z\x" door A508-650*
63 Slide, Non-restoring A590-159
66 Cotter Pin C503-008
68 Tamper Resistant Torx Tool Bit (One per case) M504-426

** Specify design and finish

*** Specify dimension and finish

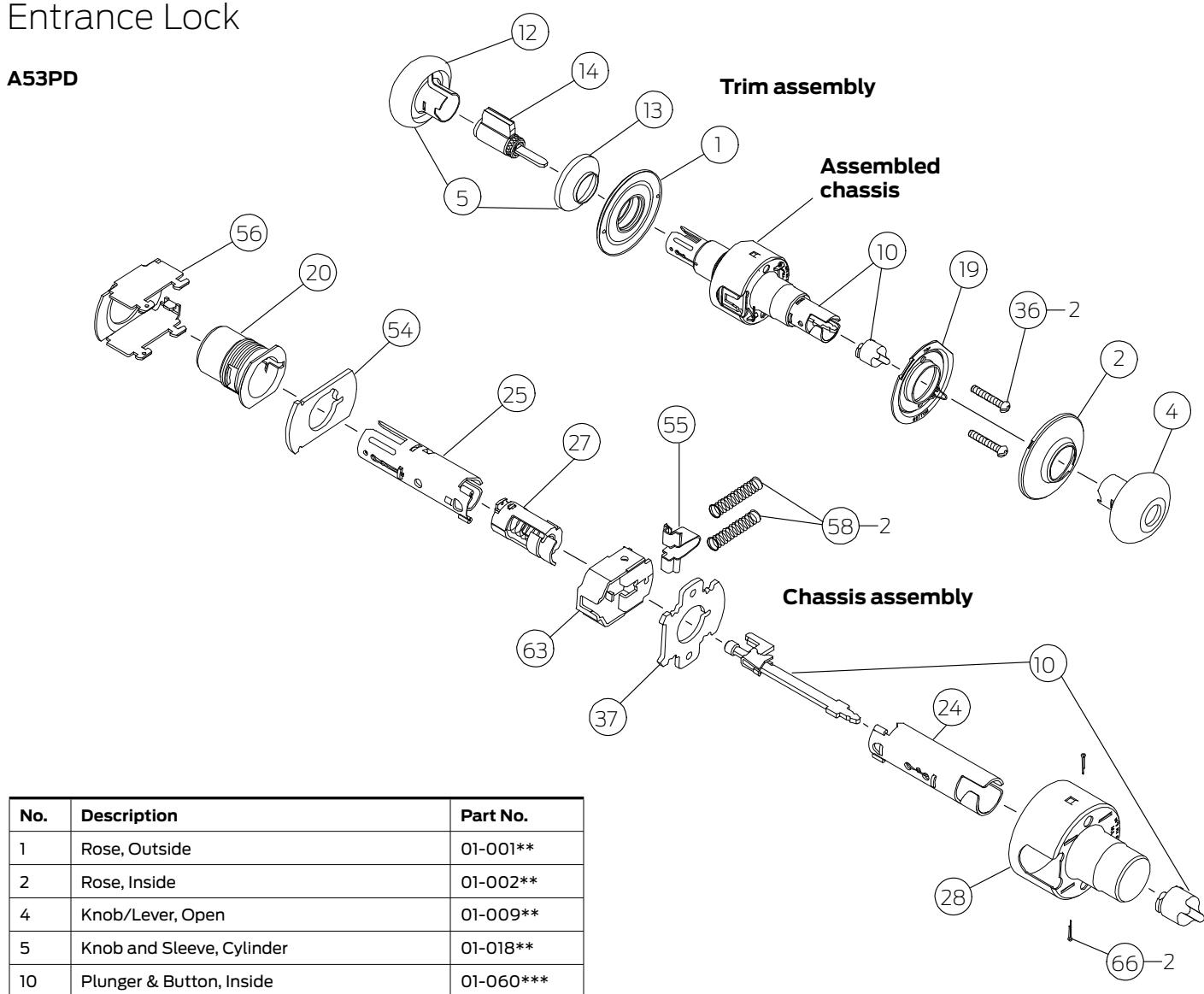

No. Description Part No.
1 Rose, Outside 01-001**
2 Rose, Inside 01-002**
4 Knob/Lever, Open 01-009**
5 Knob and Sleeve, Cylinder 01-018**
10 Plunger & Button, Inside 01-060***
12 Cylinder Knob (less sleeve) 01-080**
13 Sleeve Knob Cylinder 01-081**

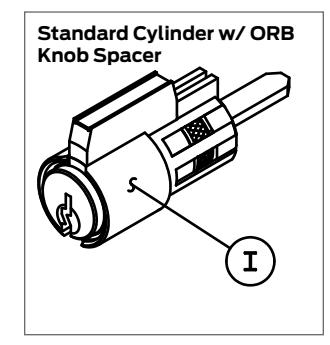

14 Cylinder, 6-Pin 21-002**

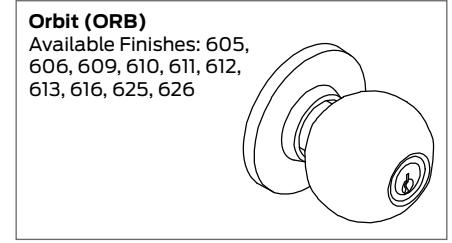

Cylinder, 6-Pin, Orbit 21-002-122**
19 Mounting Plate, Inside A201-377
20 Hub and Cap, Outside A201-399
24 Spindle & Catch, Inside 1C - 1M" door A301-386
Spindle & Catch, Inside 2 - 2Z\v" door A301-409
Spindle & Catch, Inside 2Z\x" door A301-410
25 Spindle and Catch, Outside A301-387
27 Cam, Outside A301-402
28 Housing & Cap, 1C - 1M" door A301-403*
Housing & Cap, 2 - 2Z\v" door A301-404*
Housing & Cap, 2Z\x" door A301-405*
Housing Threaded, 1Z - 1M" door A301-406*
No. Description Part No.
36 Screw, Mtg. 1C - 1M" door A501-161
Screw, Mtg. 2 - 2Z\v" door A501-818
37 Plate, Inside A501-305
54 Plate, Outside A508-399
55 Seat Spring, Knob and Lever
A508-597
56 Frame A508-598
58 Spring Slide, Knob and Lever A508-605
63 Slide, Non-restoring A590-159
66 Cotter Pin C503-008

** Specify design and finish

*** Specify dimension and finish

Note: Parts for doors 2 - 2Z\x" thick are for doors extended inside (EI)
only.

Plate, Inside A501-305

Chassis and Assemblies

No. Description
Part No.
1 Rose, Outside
01-001**
5 Knob and Sleeve, Cylinder
01-018**
12 Cylinder Knob (less sleeve) 01-080**
13 Sleeve Knob Cylinder 01-081**
14 Cylinder, 6-Pin 21-002*
Cylinder, 6-Pin, Orbit 21-002-122*
19 Mounting Plate, Inside A201-377
20 Hub and Cap, Outside A201-399*
25 Spindle and Catch, Outside A301-387
43 Plug, Cam A501-721
44 Rose, Inside A501-766*
45 Plate, Mounting A501-767
46 Plate, Inside A501-768
47 Screw, Mtg. 1C - 1M" door A501-769
Screw, Mtg. 2 - 2Z\v" door A501-770
No. Description Part No.
49 Spiral Cam A501-776
50 Spacer Cam A501-791
54 Plate, Outside A508-399
55 Seat Spring, Knob and Lever A508-597
56 Frame A508-598
57 Housing A508-600
58 Spring Slide, Knob and Lever A508-605
63 Slide, Non-restoring A590-159
66 Cotter Pin C503-008

* Specify finish

** Specify design and finish

No. Description
Part No.
1 Rose, Outside 01-001**
2 Rose, Inside 01-002**
3 Knob/Lever, Closed 01-005**
5 Knob and Sleeve, Cylinder 01-018**
12 Cylinder Knob (less sleeve) 01-080**
13 Sleeve Knob Cylinder 01-081**
14 Cylinder, 6-Pin 21-002*
Cylinder, 6-Pin, Orbit 21-002-122*
18 Cam A201-370
19 Mounting Plate, Inside A201-377
20 Hub and Cap, Outside A201-399*
24 Spindle and Catch, Inside, 1C - 1M" door A301-386
Spindle and Catch, Inside, 2 - 2Z\v" door A301-409
Spindle and Catch, Inside, 2Z\x" door A301-410
25 Spindle and Catch, Outside A301-387
28 Housing & Cap, 1C - 1M" door A301-403
Housing & Cap, 2 - 2Z\v" door A301-404
Housing & Cap, 2Z\x" door A301-405
Housing, Threaded, 1C - 1M" door A301-406
No. Description Part No.
36 Screw, Mtg. 1C - 1M" door A501-161
Screw, Mtg. 2 - 2Z\x" door A501-818
37 Plate, Inside A501-305
40 Wedge A501-615
53 Plate, Outside A501-901
55 Seat Spring, Knob and Lever A508-597
56 Frame A508-598
58 Spring Slide, Knob and Lever A508-605
63 Slide, Non-restoring A590-159
66 Cotter Pin C503-008

Plate, Inside A501-305

66
2
No. Description Part No.
40 Wedge A501-615
42 Sleeve, Swivel A501-710
53 Plate, Outside A501-901
55 Seat Spring, Knob and Lever A508-597
56 Frame A508-598
58 Spring Slide, Knob and Lever A508-605
62 Slide, Restoring A590-158

Assembled chassis

  • * Specify finish
  • ** Specify design and finish
  • *** Specify dimension and finish

Notes: Parts for doors 2 - 2Z\x" thick are for doors extended inside (EI) only. Faculty/Restroom function locks are funished 0-bitted with two 6-pin key unless otherwise specified. Emergency keys must be ordered separately.

Chassis and Assemblies

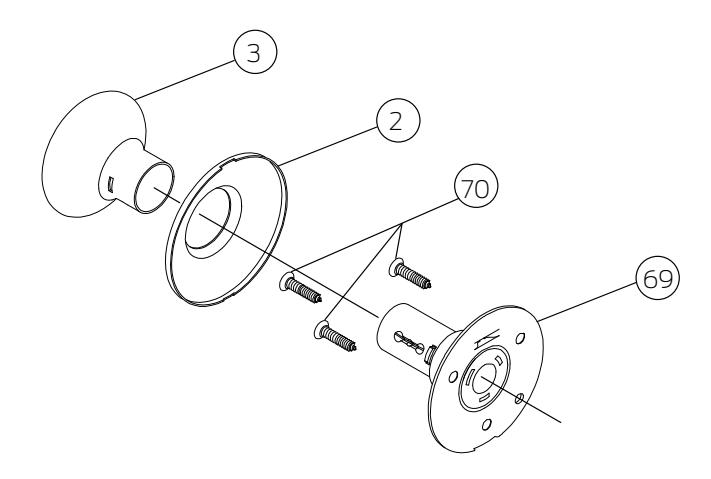

Dummy Trim

A170

No. Description Part No.
2 Rose, Inside 01-002**
3 Knob/Lever, Closed 01-005**
69 Non-Threaded Chassis, Less Knob and Rose A201-330
70 Screws, Mtg. C603-897

* Specify finish

** Specify design and finish

*** Specify dimension and finish

Parts and Accessories

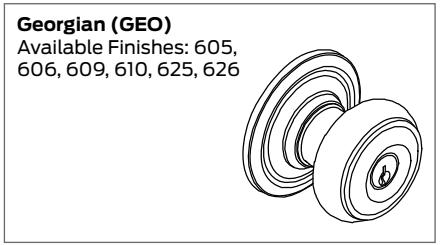

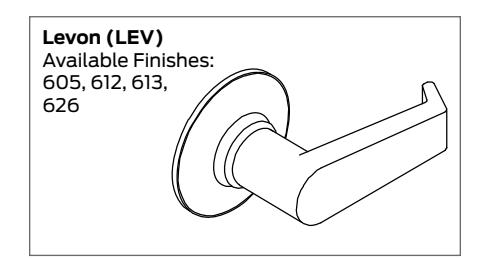

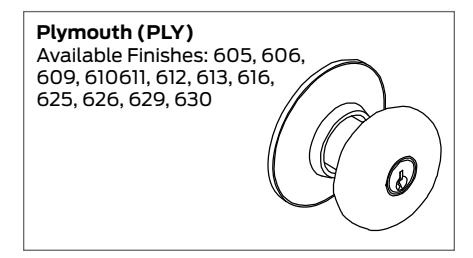

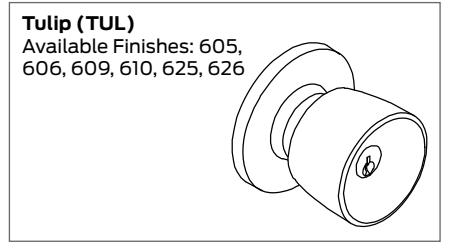

Knob and Lever Designs

Wrought brass, bronze or stainless steel. Lever is zinc based, plated to match BHMA symbols.

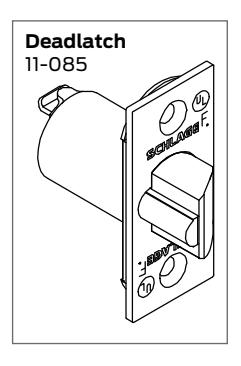

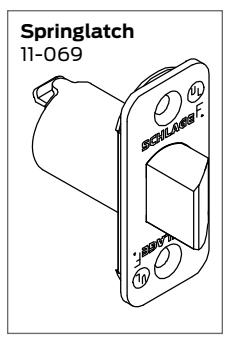

Latches

All A-Series latches have adjustable brass or bronze faceplates for flat or beveled doors, Z\x" throw standard.

Backset Description Deadlatch Springlatch Housing Diameter

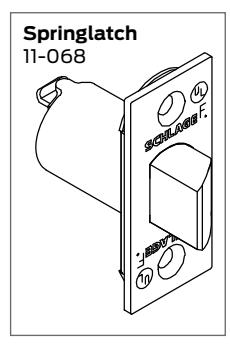

2C" Square corner, standard 1" x 2Z\v" 11-085 11-068 M"

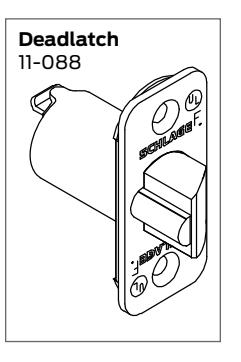

Z\v" Radius round corner, 1" x 2Z\v" 11-088
11-069 		M"

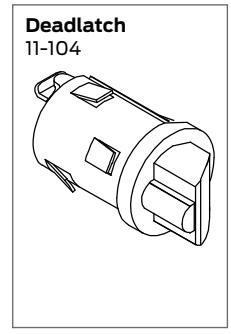

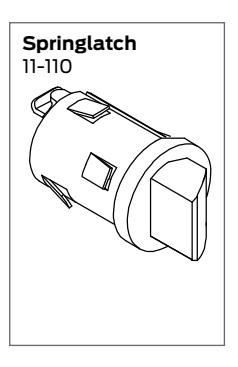

1" Circular drive-in (non-UL) 11-104 11-110 1"
2C\v" Square corner, 1" x 2Z\v" 11-091 11-111 M"
Square corner, 1Z" x 2Z\v" 11-096 11-116 1"
Z\v" Radius round corner, 1" x 2Z\v" 11-092 11-112 M"
1" Circular drive-in (non-UL) 11-105 11-113 1"
3C\v" Square corner, 1Z" x 2Z\v" 14-010 14-028 1"

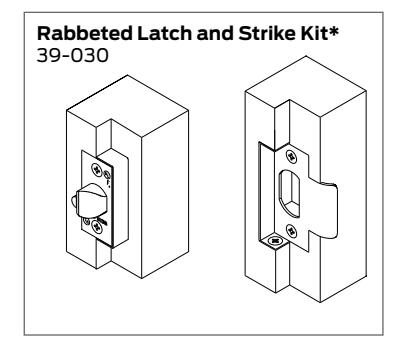

Rabbeted latch and strike kit 39-030* —

* This kit adapts square corner latch and 2C\v" high square corner strike to Z\x" rabbeted door and frame preparations.

Strikes

10-001 (Standard)

Square Corner

Size: 1Z\," x 2C\v" x C\cx" Lip Length: 1Z\," ISIdi. 1", 1Z\v", 1Z\x", 1C\v", 2" Includes C603-623 strike

10-004

box

Z\v" Radius Round Corner Size: 1Z\," x 2C\v" x C\cx"

Lip Length: 1Z\," Includes C603-623 strike

10-025

ANSI Prep. A115.2

Size: 1Z\v" x 4M\," x C\cx"

Lip Length: 1C\zn" (Std.) 1C\," If required, K510-066 strike box must be ordered separately.

10-026

box

Full Lip, Square Corner Size: 1B\," x 2Z\v" x C\zn"

Lip Length: 1Z\,"

10-027

Full Lip, Z\v" Radius Round Corner, No Box

Size: 1Z\," x 2C\v" x C\cx" Lip Length: 1Z\,"

10-042

Electric Strike

Size: 1Z\v" x 4M\," x C\cx" Voltage: 24 VAC, 12

VDC

Not designed for continuous duty and electrical locking. 606, 626 only

10-058

Circular Adjustable Size: 1C\v" diameter

Lip Length: 1M\cx"

Optional tamper resistant torx screw packs

Part No. Description
C203-311 (4) Latch and Strike Screws, #8-32 x Z\x" (T-15)
C203-312 (2) Latch Screws, #8-32 x Z\x" (T-15)
(2) ANSI Strike Screws, #12-24 x Z\x" (T-20)

Torx tools

Part No. Description
M504-425 T-15 Torx Tool
M504-426 T-20 Torx Tool

Finishes

Schlage Lock finishes are durable, top quality finishes obtained by the careful processing of solid brass, bronze, stainless steel, or other materials. When required, a protective clear coating is applied and cured under high temperature. It is important that climatic conditions and usage be taken under consideration when selecting finishes. This is especially true in areas subjected to strong corrosive vapors, humid climate, or sea air, which, in a short time, may have a damaging effect on metal finishes.

The longevity and preservation of the finish appearance is determined by base metal and finishing process. Clear protective coating or other organic finishing applications may require different methods of cleaning and care. As an example, non-clear coated finishes should not be cleaned with soaps or any solvents; organically coated surfaces should periodically be cleaned with a mild non-abrasive soap and buffed lightly with a clean cloth. The type of base metal and finishing techniques must be considered when applying any cleaning or preservative method. Contact the Schlage Technical Services Department for further information on the care of finished hardware.

In some instances, for customer convenience, the most appropriate BHMA (Builders Hardware Manufacturers Association) finish symbols are used to indicate similarity of appearance regardless of base metal or finishing process. A-Series levers are zinc based material and are plated to match finishes indicated. Finish numbers in the 600-Series are the BHMA industry standard. The nearest old U.S. equivalent code designations are shown in parentheses ( ).

Code Description
605 US (3) Bright Brass, Clear Coated
606 US (4) Satin Brass, Clear Coated
609 US (5) Satin Brass, Blackened Satin Relieved, Clear
Coated
610 US (7) Bright Brass, Blackened Bright, Relieved, Clear
Coated
611 US (9) Bright Bronze
612 US (10) Satin Bronze, Clear Coated
613 US (108) Oil Rubbed Bronze, Oxidized Satin, Bronze, Oil
Rubbed, No Coating
616 US (11) Antique Bronze
625 US (26) Bright Chromium Plated, No Coating
626 US (260) Satin Chromium Plated, No Coating
630 US (320) Satin Stainless Steel, No Coating

Cylinder Units and Parts

Schlage locks are provided with cylinder units precision built to extremely close tolerances and the highest standards of accuracy. Phosphor bronze springs, nickel silver keys, and pins are used throughout the Schlage offering. The best combination of materials is used to ensure the manufacture of cylinders with ease of operation and long wear. To order locks less cylinder units, change product suffix letter "P" and "L". Example: A53LD. Primus® cylinders are available when key control and physical security are important concerns.

Cylinder Units

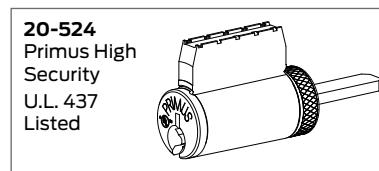

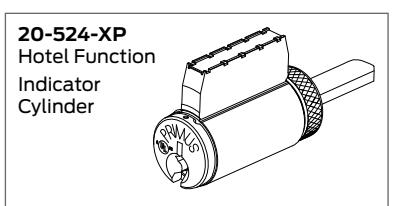

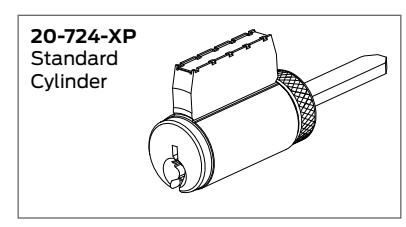

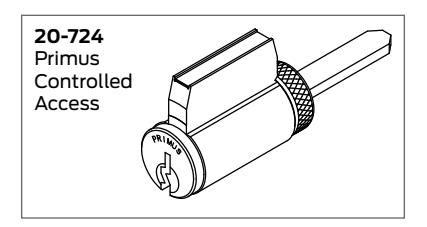

Standard Primus Cylinders Descriptions Design
Cylinders High Security Controlled Access XP
21-002 20-524 20-724 20-524-XP 20-724-XP 6 Pin unit All except ORB, COM,
PLA
21-002-122 20-524-122 20-724-122 20-524-122-XP 20-724-122-XP 6 Pin unit
(except A73 & A85) 		ORB, COM, PLA
21-002-149 20-524-149 20-724-149 20-524-149-XP 20-274-149-XP 6 Pin unit (A73) ORB, COM, PLA

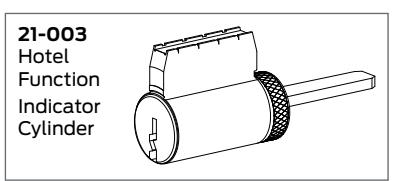

21-003 Not Available 6 Pin Indicator unit (A83) All except ORB, COM,
PLA
21-003-168 6 Pin indicator unit (A83) ORB, COM, PLA

Important: Use only graphite or similar material for cylinder lubrication. Under no circumstances should any other type of material be introduced into the cylinder.

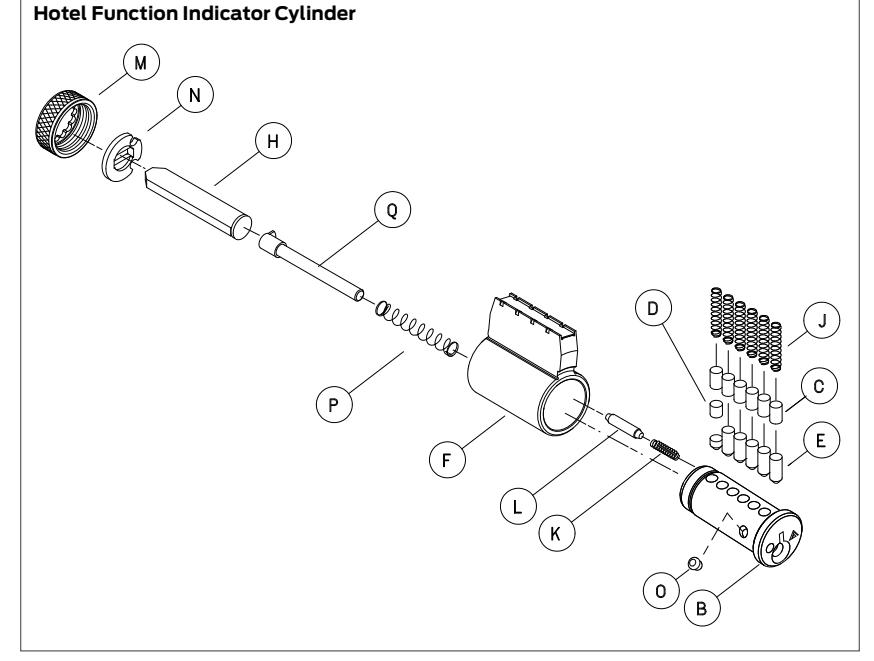

Cylinder Parts

Letter Part no. Description
A 33-230 Cylinder plug, 6 pin for 21-002
B 33-235 Cylinder plug, indicator, 6 pin for 21-003
C 34-101 thru 103 #1 thru #3 Top pin
D 34-202 thru 209 #2 thru #9 Master pin
E 34-300 thru 309 #0 thru #9 Bottom pin
F A201-698 Body, 6 pin
G A201-934 Bar & driver for 21-002-149
A301-337 Bar & driver for 20-724, 20-724-XP, 20-524,
20-524-XP
A301-338 Bar & driver for 21-002-122
A301-339 Bar & driver A73 Orbit
A508-606 Bar & driver for 21-001, IDisc.1, & 21-002
A508-614 Bar & driver for 21-002-122
H A501-693 Bar for 21-003-168
A501-991 Bar for 21-003

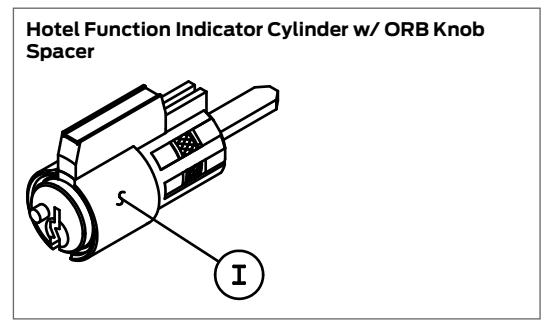

I A508-640 Spacer for ORB knob
J C503-113 Tumbler spring
K C503-115 Retainer cap spring
L C503-116 Retainer cap pin
M C503-118 Retainer cap
N C503-767 Driver for 21-003
O C603-195 Obstruction pin for 21-003
C604-362 Obstruction pin, Everest
P C604-144 Indicator pin spring for 21-003
C604-369 Indicator pin spring, Everest
Q C604-368 Indicator pin, Everest
S C604-371 Indicator pin for 21-003

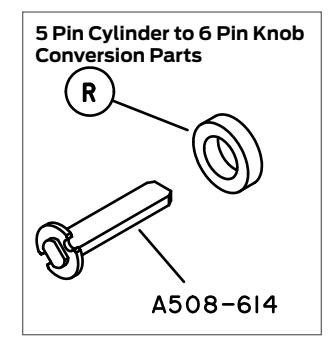

T XA10-594 5 Pin cylinder extension to fit 6 pin knobs
(Requires A508-614 bar & driver)

Interchangeable Cores, Designs, and Parts

Available for all A-Series keyed functions, except Hotel/Motel function A85, as complete locks or in retrofit kits. Existing installations can be retrofitted without removing lock from door. To order locks with interchangeable cores, change product suffix letter "P" to "R". Example: A53RD. To order locks less interchangeable cores, change product suffix letter "P" to "J". Example: A53JD. Primus® cores are available when key control and physical security are important concerns.

Interchangeable Cores

Interchangeable Core Designs

Part no. Description
01-026 Knob only
01-053 Driver and retainer

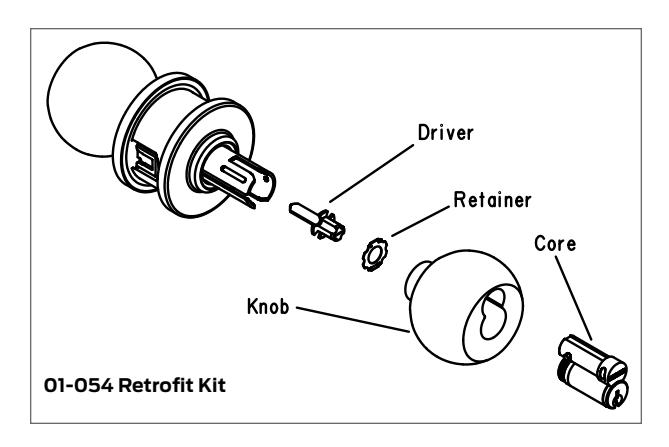

01-054 Knob, core, driver, and retainer
20-524-122-XP Everest Primus Interchangeable Core, UL
20-724-122-XP Everest Primus Interchangeable Core w/o Logo
20-740 Primus interchangeable core w/ logo

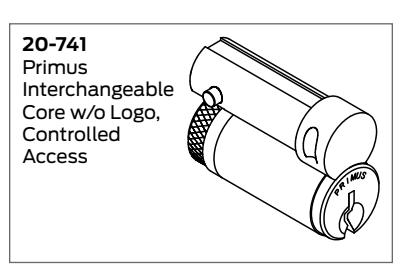

20-741 Primus interchangeable core w/o logo
23-030 Interchangeable core w/ logo
23-031 Interchangeable core w/o logo
A501-941 Retainer
C604-307 Driver

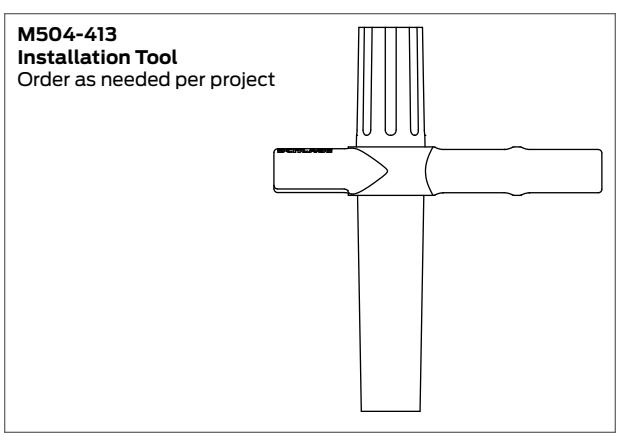

M504-413 Installation tool

Interchangeable Core

To remove interchangeable core, insert control key and turn 15° to the right until action stops. Pulling on key will extract core from the knob. To install a new core, insert control key and push core into housing, rotate key 15° to the right and insert core completely. Rotate key back to original position and remove control key.

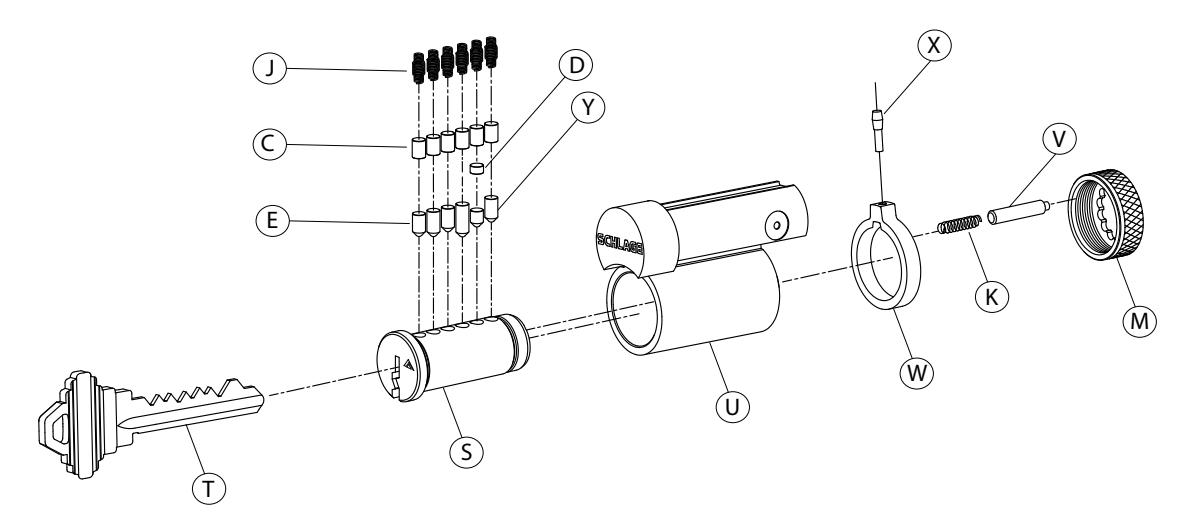

Interchangeable Core Parts

Letter Part no. Description
C 34-101 thru 103 #1 thru #3 Top Pin
D 34-202 thru 209 #2 thru #9 Master Pin
E 34-300 thru 309 #0 thru #9 Bottom pin
J C503-113 Tumbler spring
K C503-115 Retainer cap spring
M C503-118 Retainer cap
S* 33-235 Plug, Everest interchangeable core
Letter Part no. Description
T 35-056 Control key, blank
48-056 Control key, cut
U* B220-282 Interchangeable core body, w/ logo
B220-283 Interchangeable core body, w/o logo
V C603-347 Retainer cap pin
W* C603-956 Actuating ring
X* C603-964 Actuating pin
Y* C603-967 Control pin

* Parts not compatible with cores manufactured before 1991.

Important: Use only graphite or similar material for cylinder lubrication. Under no circumstance should any other type of material be introduced into the cylinder.

Lubrication

A-Series lock mechanisms are designed for durability and seldom need servicing. During assembly, those points of contact which require lubrication for ease of operation are given on application of high quality petroleum based grease. A touch of graphite is applied to the pin tumbler plug during assembly of the cylinder unit. No further servicing should be required for an extended period except where locks are subjected to extremely heavy traffic. Also, if located in particularly dusty or dirty areas, the grease may become contaminated resulting in a slow or otherwise unsatisfactory operation. The case mechanism should then be cleaned in a non-corrosive petroleum solvent and relubricated. Graphite only should be applied to the cylinder unit by blowing a small quantity into the keyway.

Î Note: Precautionary measures according to solvent manufacturers instructions should always be followed.

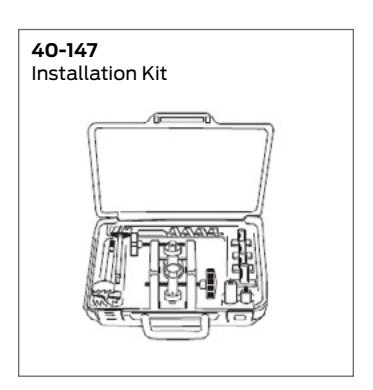

Installation Tools and Kits

Boring jig and tools are designed to provide fast and accurate lock installation. Complete kit contained in a heavy gage metal box, or individual tools can be ordered for preparing doors and jambs for Schlage products.

For A, AL, B, D, F, H, and S200-series locks. Adjustable for 2 C\," and 2 C\v" backsets. Designed for special high speed hexagonal shank boring bits and equipped with an adaptor to form an integrated unit for boring doors 1B\zn" to 1ZB\zn" thick.

Part No. Description
40-148 Installation JIG
M504-497 Case Only
40-176 2 Z" Multi Spur Bit
40-177 1 Z\x" Multi Spur Kit
40-030 1 Z" x 2 C\v" Strike Chisel
40-032 1 Z" x 2 Z\v" Latch Chisel
40-175 1" Bit
40-178 Quick Change Bit Adapter
40-179 1" Strike Locator
40-029 Full Lip Strike Chisel
40-031 1 Z" x 2 Z\v" Latch Chisel

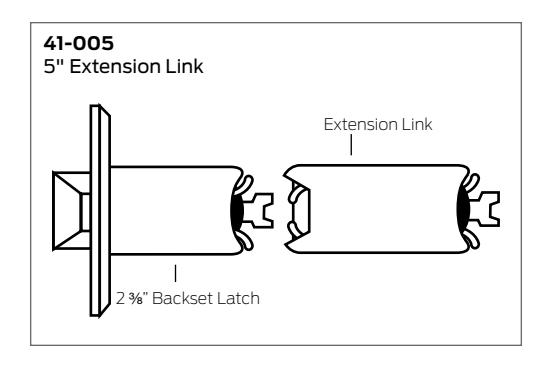

Long Backsets

Backsets 5" and over require extension links. A-Series locks with long backsets are normally furnished with 1" faceplates and M\," housings. Links installed in 1" latch holes require one G506-815 sleeve (order separately) to join latch and link.

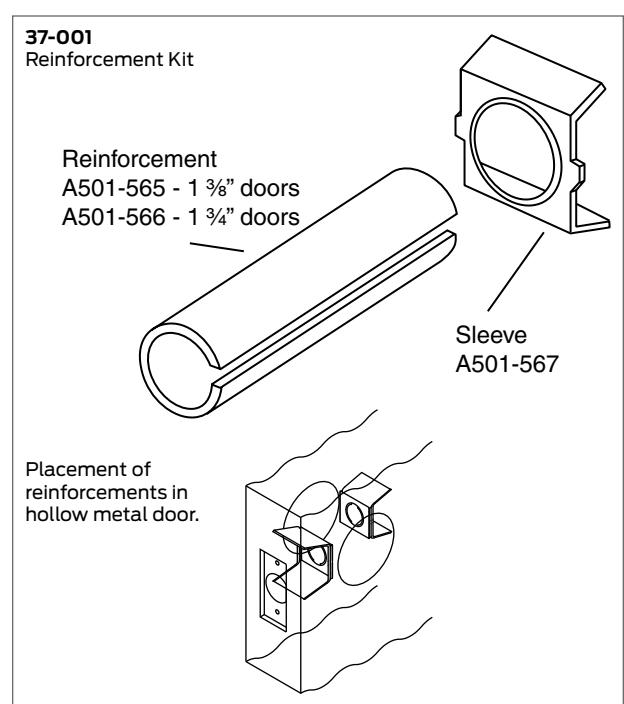

Reinforcement Kit

The Schlage 37-001 reinforcement kit is to reinforce and help prevent the collapse of hollow metal doors when locksets are tightly mounted. This kit should be used with long backsets for installations in hollow metal doors to prevent lateral movement of latch bolt. Specify door thickness 1C\," or 1C\v" when ordering.

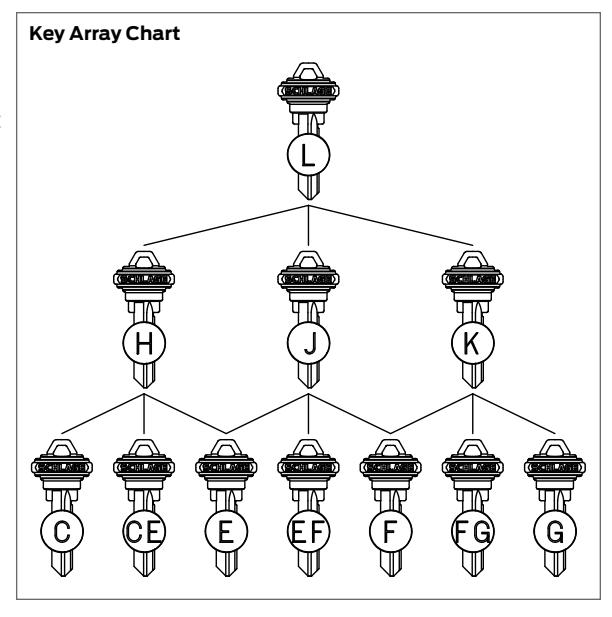

Keying

The Schlage Masterkey Department determines and makes the final decision in the selection and use of key sections. Other keyways than shown below are available. Allocation of other keyways is based on need and extent of the final system. Priority is given to key systems that require a large number of cylinders and families of key sections to satisfy their keying requirements. Contact your Schlage representative for availability of other keyways.

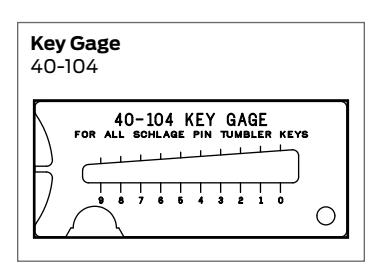

Order the Schlage key gage to accurately measure the depth of key cuts.

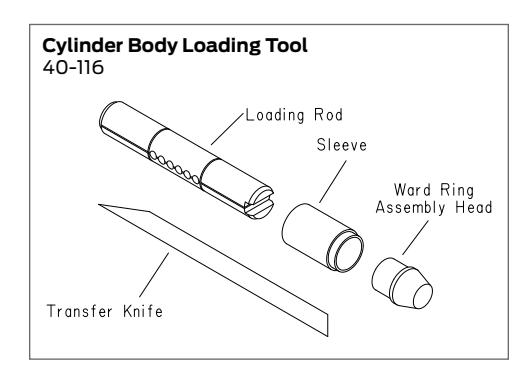

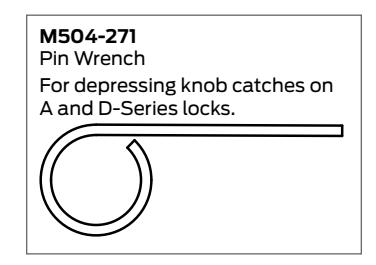

Cylinder Body Loading Tool

A compact precision tool for loading top pins and springs and for installation of ward rings into grooves of a worded cylinder plug. Furnished with complete assembly instructions.

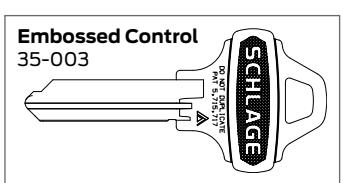

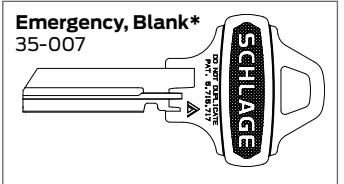

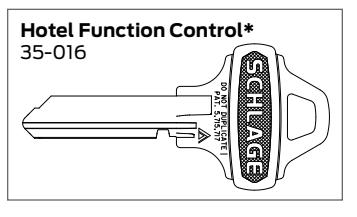

Pin Tumbler Keys

All Schlage locks come with two nickel silver keys as standard, embossed with our company logo. The nickel silver alloy from which all Schlage keys are made provides the base for accuracy in cutting and long cylinder wear. Schlage will stamp "DO NOT DUPLICATE" across the bow of all versions of its keys at no extra charge when specified on orders.

* stamped with "Do Not Duplicate"

About Allegion

Allegion (NYSE: ALLE) creates peace of mind by pioneering safety and security. As a $2 billion provider of security solutions for homes and businesses, Allegion employs more than 7,800 people and sells products in more than 120 countries across the world. Allegion comprises 23 global brands, including strategic brands CISA®, Interflex®, LCN®, Schlage® and Von Duprin®.

For more, visit www.allegion.com .
