Grade 2 modular, cylindrical locks
ALX Series
Overview

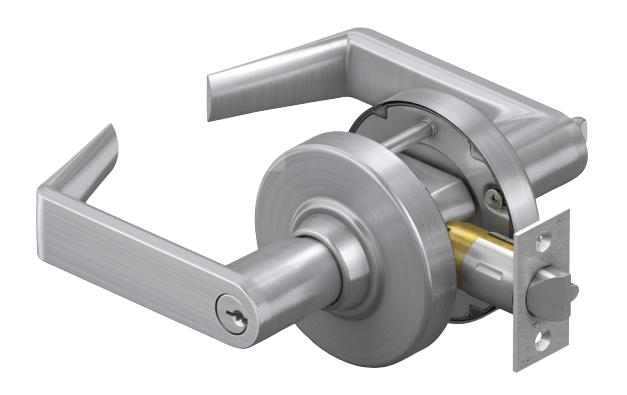

The Schlage� ALX Series is a grade 2 lock unlike any other. Designed to exceed expectations, it features a single, patent pending chassis design that supports most functions and all cylinder applications. As a modular lock, ALX Series enables in-field function set up or exchange and a field-selectable Vandlgard� feature on all locking functions. Exceptional durability comes from a stainless steel latch bolt and deep-drawn spindles with 5 points of lever engagement and grade 1 compression springs that prevent droop and wobble. Perfectly suited to the ND grade 1 series, ALX also allows you to seamlessly suite between the two to gain grade 1 strength, security and functionality when and where you need it.
Finishes
605 Bright Brass
606 Satin Brass
612 Satin Bronze
613 Oil Rubbed Bronze
619 Satin Nickel
622 Matte Black
625 Bright Chrome
626 Satin Chrome
626AM Satin Chrome, Antimicrobial
643e Aged Bronze
Lever styles
Athens (ATH) 8AT - Milled tactile warning
Boardwalk (BRK) 8BK - Knurled tactile warning
Broadway (BRW) 8BW - Knurled tactile warning
Latitude (LAT) 8LT - Milled tactile warning
Longitude (LON) 8LN - Milled tactile warning
Omega (OME)
Rhodes (RHO) 8RO - Milled tactile warning
Saturn (SAT)
Sparta (SPA) 8SP - Milled tactile warning
Tubular (TLR) 8TR - Knurled tactile warning
| Lever | |
|---|---|
| projection | |
|
|
Dimensions
| Lever | Width | Projection |
|---|---|---|
| Athens (ATH) | 4 9/16" | 3 5/16" |
| Boardwalk (BRK) | 4 15/16" | 3 1/16" |
| Broadway (BRW) | 4 1/2" | 3 1/16" |
| Latitude (LAT) | 41/2" | 31/8" |
| Longitude (LON) | 4 15/16" | 31/8" |
| Omega (OME) | 5 1/16" | 3 5/16" |
| Rhodes (RHO) | 4 9/16" | 2 15/16" |
| Saturn (SAT) | 4 7/16" | 2 15/16" |
| Sparta (SPA) | 4 15/16" | 3 1/2" |
| Tubular (TLR) | 4 15/16" | 3" |
| Rose | Diameter |
|---|---|
| Standard | 3 7/16" |
Return to door meets " requirement for Boardwalk (BRK), Longitude (LON), Omega (OME), Rhodes (RHO), Sparta (SPA) and Tubular (TLR) levers
Non-keyed functions
Schlage ALX10 ANSI F75
Passage latch
- No key; plain lever both sides; spring latch
- Both levers always unlocked
Schlage ALX40 ALXV40 ANSI F76
Bath/bedroom privacy lock
- No key; emergency access coin turn outside; push button inside; spring latch
- Inside push button locks outside lever
- Turn inside lever or close door to release button and prevent lock-out; outside coin turn provides emergency access
- Field selectable Vandlgard® feature
- Inside lever is always free for immediate egress
Schlage ALX44 ALXV44 ANSI
Hospital privacy lock
- No key; emergency turn-button outside; push button inside; spring latch
- Inside push button locks outside lever
- Turn inside lever or close door to release button and prevent lock-out; outside turnbutton provides emergency access
- Field selectable Vandlgard® feature
- Inside lever is always free for immediate egress
Schlage ALX170 ANSI
Single dummy trim
- No key; rigid plain lever outside; no hardware inside; no latchbolt
- Use as door pull or matching inactive trim
Note: Not available for in-field function changes.
Schlage ALX172 ANSI
Double dummy trim
- No key; rigid, plain lever both sides; no latch
- Use as door pull or matching inactive trim
Notes: Latch cover available. Not available for in-field function changes.
Single cylinder deadbolt functions
Schlage ALX50 ALXV50 ANSI F82
Entrance/office lock
- Key cylinder outside; push button inside; deadlatch
- Inside push button locks outside lever
- Unlock with key outside or by rotating inside
- Field selectable Vandlgard® feature
- Inside lever always free for immediate egress
Schlage ΔI X53 ALXV53 ANSI F109 Entrance lock
- Key cylinder outside; push/turn button inside; deadlatch
- Inside button locks outside lever by pushing button or pushing and turning button
- Pushed button: unlock with key outside or by rotating inside lever
- Pushed/turned button: key outside retracts latch only; unlock by returning inside button to home position then using key or rotating inside lever
- Field selectable Vandlgard® feature
- Inside lever always free for immediate egress
Schlage ALX70 ALXV70 ANSI F84 Classroom lock
- Key cylinder outside; plain lever inside;
- Key in outside lever locks or unlocks outside lever
- Field selectable Vandlgard® feature
- Inside lever always free for immediate egress
Schlage ALX80 ALXV86
ANSI F86
Storeroom lock
- Key cylinder outside; plain lever inside; deadlatch
- Outside lever always fixed
- Key can retract the latch
- Field selectable Vandlgard® feature
- Inside lever always free for immediate egress
Cylinders
| Conventional cylinder | ATH | BRK | BRW | LAT | LON | OME | RHO | SAT | SPA | TLR | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P6 | 6-pin Conventional (standard) | | | | | | | | | | |
| Z | SL 7-pin Conventional (A2 pinning) | | | | | | | | | | |
| L | Less Conventional cylinder | | | | | | | | | | |
| L-C06 |
Less cylinder, made to fit
Corbin 2000-033 |
| - | - | - | - | - | | - | | |
| L-SAR |
Less cylinder, made to fit
Sargent C11-1, C10-1 |
| - | - | - | - | - | | - | | |
| Full size interchangeable core (FSIC) | |||||||||||
| R | 6-pin FSIC (full size) | | | | | | | | - | | |
| M | SL 7-pin FSIC (A2 pinning) | | | | | | | | - | | |
| J | Less FSIC | | | | | | | | - | | |
| J-C06 | Less FSIC, made to fit Corbin 8000 | | - | - | - | - | - | | - | | |
| J-C07 | Less FSIC, made to fit Corbin 8000-7 | - | - | - | - | - | - | | - | - | - |
| J-SAR | Less FSIC, made to fit Sargent 6300 | | - | - | - | - | - | | - | | |
| T | Refundable construction FSIC | | | | | | | | - | | |
| Small format interchangeable core (SFIC) | |||||||||||
| G7 | 7-pin SFIC (slide capping) | | | | | | | | - | | |
| B | Less SFIC | | | | | | | | - | | |
| BDC | Disposable construction SFIC | | | | | | | | - | | |
| H | Refundable construction SFIC | | | | | | | | - | | |
Specifications
| Chassis | |
|---|---|
| Material | Steel, zinc dichromated for corrosion resistance |
| Door thickness | Standard: 1 3⁄8" to 1 3⁄4" |
| Trim | |
| Handing | Non-handed |
| Levers | Pressure cast zinc, plated to match product finish specification |
| Roses | Wrought brass, bronze or zinc plated to match finish specification |
| Latch | |
| Backset | Standard: 2 3⁄4" |
| Optional: 2 3⁄8", 3 3⁄4", 5" | |
| Faceplate |
Standard: 1 1
⁄8" x 2 1 ⁄4" square corners |
| Optional: Multiple options with square or radius corners | |
| Latch |
Standard: 7⁄8" bolt diameter, up to 1" housing diameter, 1
⁄2" throw in stainless steel |
|
Optional: 1" bolt diameter with 1
⁄2" throw, 3⁄4" anti-friction fire latch |
|
| Strike |
Standard: ANSI Curved Lip: 1 1
⁄4" x 4 7 ⁄8" x 1 3⁄16" |
| Optional: T strike | |
| Keying | |
| Cylinder format | 6-pin Conventional (standard); also available in FSIC, SFIC and 7-pin SL cylinder |
| formats plus less cylinder options designed to fit competitive cores from | |
| Sargent and Corbin Russwin | |
| Keying | Standard: Everest 29 S123 patented open keyway, keyed different (KD) |
| Optional: Classic open, Everest 29 restricted, and legacy keyways | |
| Warranty | |
| 10-year limited | |
| Certifications | |
| ANSI/BHMA | Certified A156.2-2011 Series 4000, Grade 2; exceeds standard for lever and |
| spindle strength and durability | |
| ICC | Complies with ICC A117.1 for Accessible and Usable Buildings and Facilities |
| UL/cUL | All locks listed for A label single fire door 4' x 8' or 4' x 10' 3-hour; pair doors |
| 8' x 8' 3-hour; and 8' x 10' 90-minute. Letter F and UL symbol on latch front | |
| indicate listing. | |
| UL 437 | Optional UL listed high-security cylinders available in Conventional format |
| CA Fire Code | All levers with a return to door of 1 ⁄2" (64 mm) or less comply |
| (Boardwalk, Longitude, Omega, Rhodes, Saturn, Sparta, and Tubular) | |
| FL Building | ASTM E330, E1886, E1996 and Miami Dade (TAS 201, 202, 203) requirements |
| Code | for hurricanes |
| Federal | Meets FF-H-106C Series 161 |
| ADA compliant | All lever designs meet Americans with Disabilities Act requirements |
