AD Series Exit trim compatibility

Overview

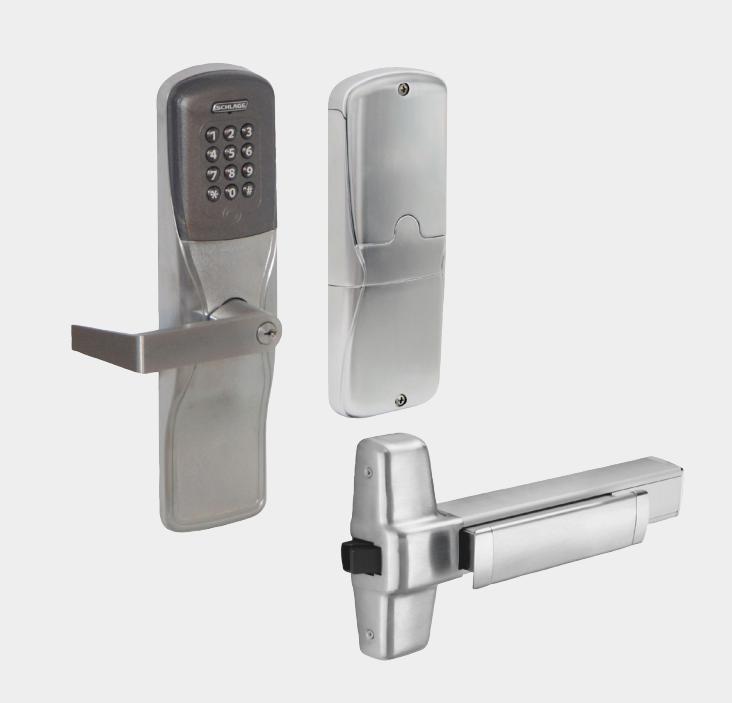

The AD Series electronic lock is available in 993 Exit Trim for use on openings that require exit devices for either retrofit or new construction applications. Offline and networked solutions are available. The 993 Exit Trim was designed to suite with AD Series cylindrical and mortise locksets to ensure that the facility remains aesthetically consistent. The AD Series 993 Exit Trim utilizes universal hardware to simplify installation of offline trim to a variety of exit devices, including rim style from Von Duprin, Falcon, Sargent®, PrecisionTM Corbin Russwin, Dorma®, and Yale®.

Available Exit Trim styles:

  • § 993R Rim, concealed vertical cable or concealed vertical rod (CVC and CVR for metal doors only)
  • § 993S Surface vertical rod
  • § 993M Mortise

Compatibility
Devices AD-200/250 AD-300/AD-3023
AD-400/AD-4023
Von Duprin 98/99 and 98/99XP rim/SVR/
CVR1
/CVC1
/mortise 		X X
Von Duprin 22/22F rim/SVR X X
Falcon 25 rim X X
Sargent® 802 rim X
PrecisionTM 21 rim (2100 converts to 21 with
Precision's BP21 kit) 		X
Yale® 7000 rim X
Corbin Russwin 5000 rim X
Dorma® 9300 rim X

Features and benefits

  • § Multiple credential reader options
  • § Offline and networked communication options
  • § A wide variety of finishes and lever styles
  • § Power options that include hardwired (12 VDC or 24 VDC) or batteries (4AA or 8AA)
  • § Compatible with all Schlage Conventional, FSIC and SFIC formatted cylinders including many competitive OEM cylinders such as, Sargent®, Corbin Russwin, Medeco® and Yale®

  • For metal doors only
  • 2 Narrow design and reversible rim exits not compatible.
  • 3 The proper low current request to exit switch (RX-LC) is required for AD-300/302 and AD-400/402. Part numbers for request to exit switch:
    • § Von Duprin: 050281
  • § Falcon: 650359

Available AD Series reader modules2

  • § Multi-technology (125 kHz proximity and 13.56 MHz smart card)
  • § FIPS 201-2 compliant multi-technology (125 kHz proximity and 13.56 MHz smart card)
  • § Smart iClass compatible
  • § Mobile
  • § Magnetic stripe
  • § Keypad only
  • § All credential readers available + keypad

Available communication options

  • § AD-400: Networked wireless locks
  • § AD-402: Networked wireless locks FIPS 201-2 compliant
  • § AD-300: Networked hardwired locks
  • § AD-302: Networked hardwired locks FIPS 201-2 compliant
  • § AD-250: Offline, access rights stored on the magnetic stripe credential
  • § AD-200: Offline, access rights stored on the lock

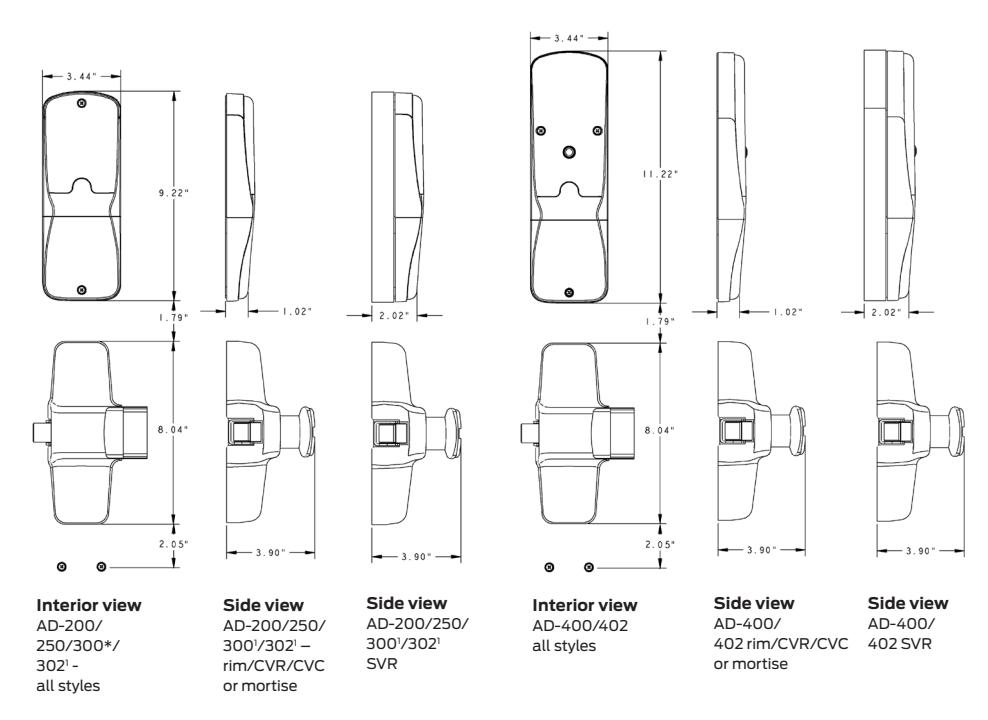

  • 1 AD-300/302 includes LED indicator
  • 2 Unlike other AD Series chassis styles, upgrading reader modules on the 993 Exit Trim requires the exterior escutcheon to be removed from the door

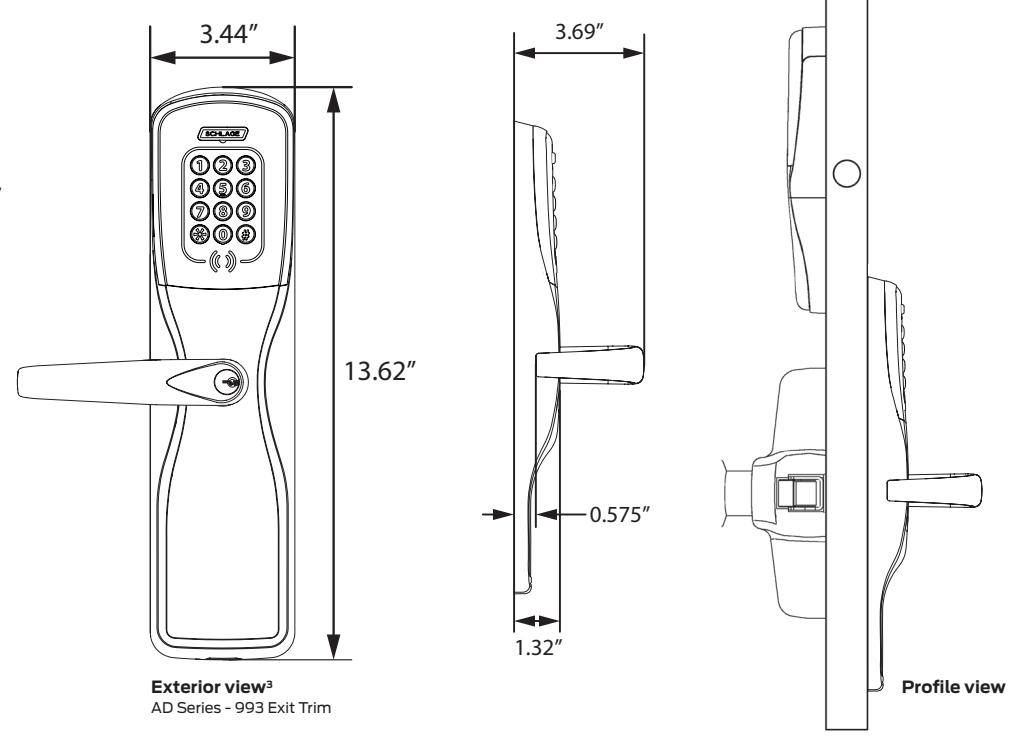

  • 3 (2) #7 fasteners with decorative washers located 11.88" below bottom edge of lock
