AD Series Door Template Index
Cylindrical Lock
(Wood Door) AD-CY Cylindrical AD200/250/300/400 Template - AD101 (Metal Door) AD-CY Cylindrical AD200/250/300/400 Template - AD102
Mortise Lock
(Wood Door) AD-MS Mortise AD200/250/300/400 Template - AD103 (Metal Door) AD-MS Mortise AD200/250/300/400 Template - AD104
Mortise Deadbolt Lock
(Wood Door) AD-MD Mortise Deadbolt AD200/250/300/400 Template - AD105 (Metal Door) AD-MD Mortise Deadbolt AD200/250/300/400 Template - AD106
993R/S Rim & Surface Vertical Exit Device Trim
(Wood Door) AD-993R/S Exit Device AD200/250/300/400 Template - AD107 (Metal Door) AD-993R/S Exit Device AD200/250/300/400 Template - AD108
993M Mortise Exit Device Trim
(Wood Door) AD-993M Exit Device AD200/250/300/400 Template - AD109 (Metal Door) AD-993M Exit Device AD200/250/300/400 Template - AD110
993R Concealed Vertical Exit Device Trim
(Metal Door) AD-993R Exit Device AD200/250/300/400 Template - AD112

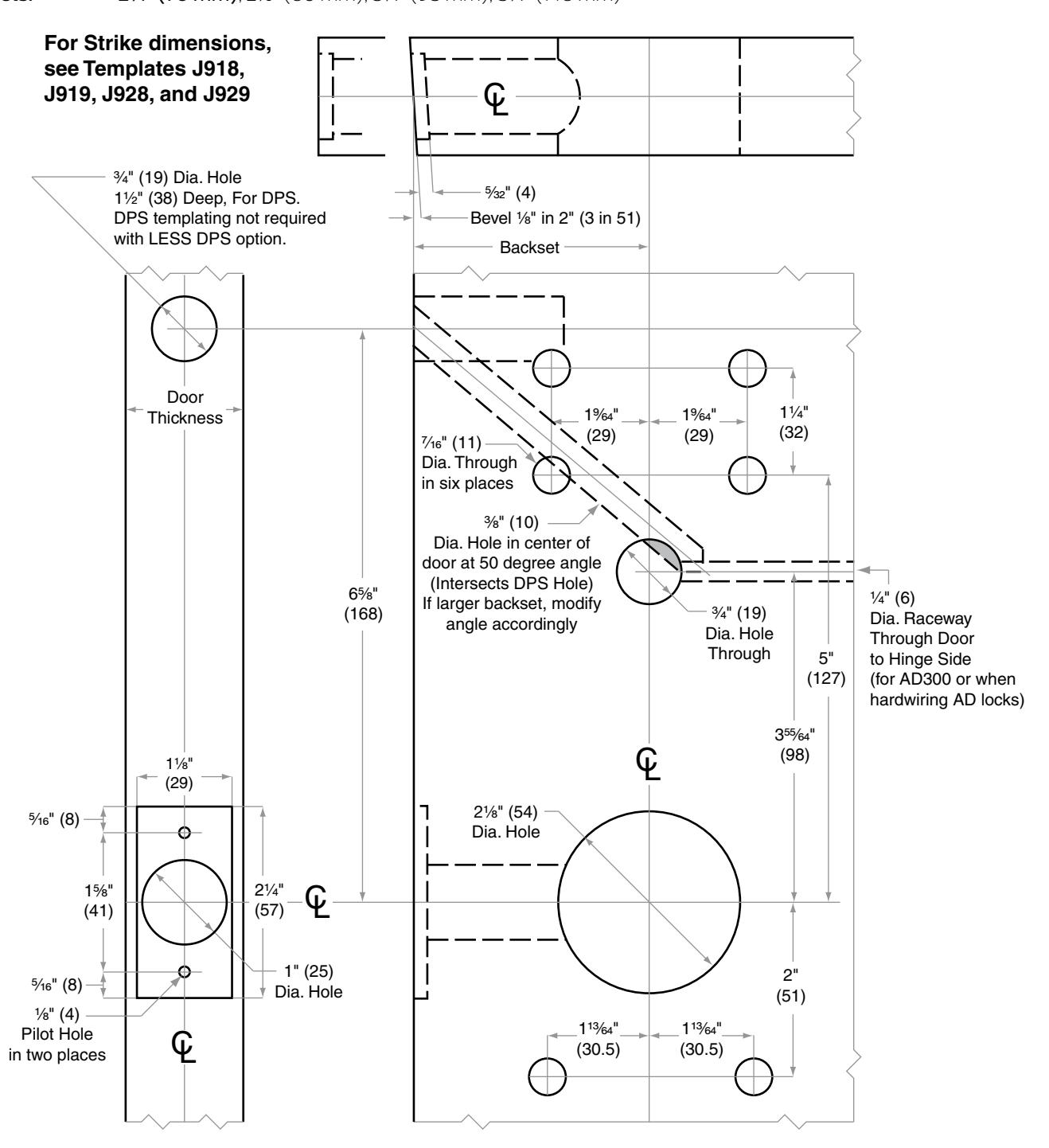

Models AD-200/250/300/400-CY
Door Type: Wood or Composite, Flat or Beveled Conforms to ANSI BHMA A156.115-W
Door Thickness: 1C\," (35 mm) – 2C\v" (70 mm) Faceplate: Square Corner, 1Z\," (29 mm) wide
Backsets: 2 C\v " (70 mm), 2C\," (60 mm), 3C\v" (95 mm), 5C\v" (146 mm)
Dimensions shown in parentheses () are in millimeters.

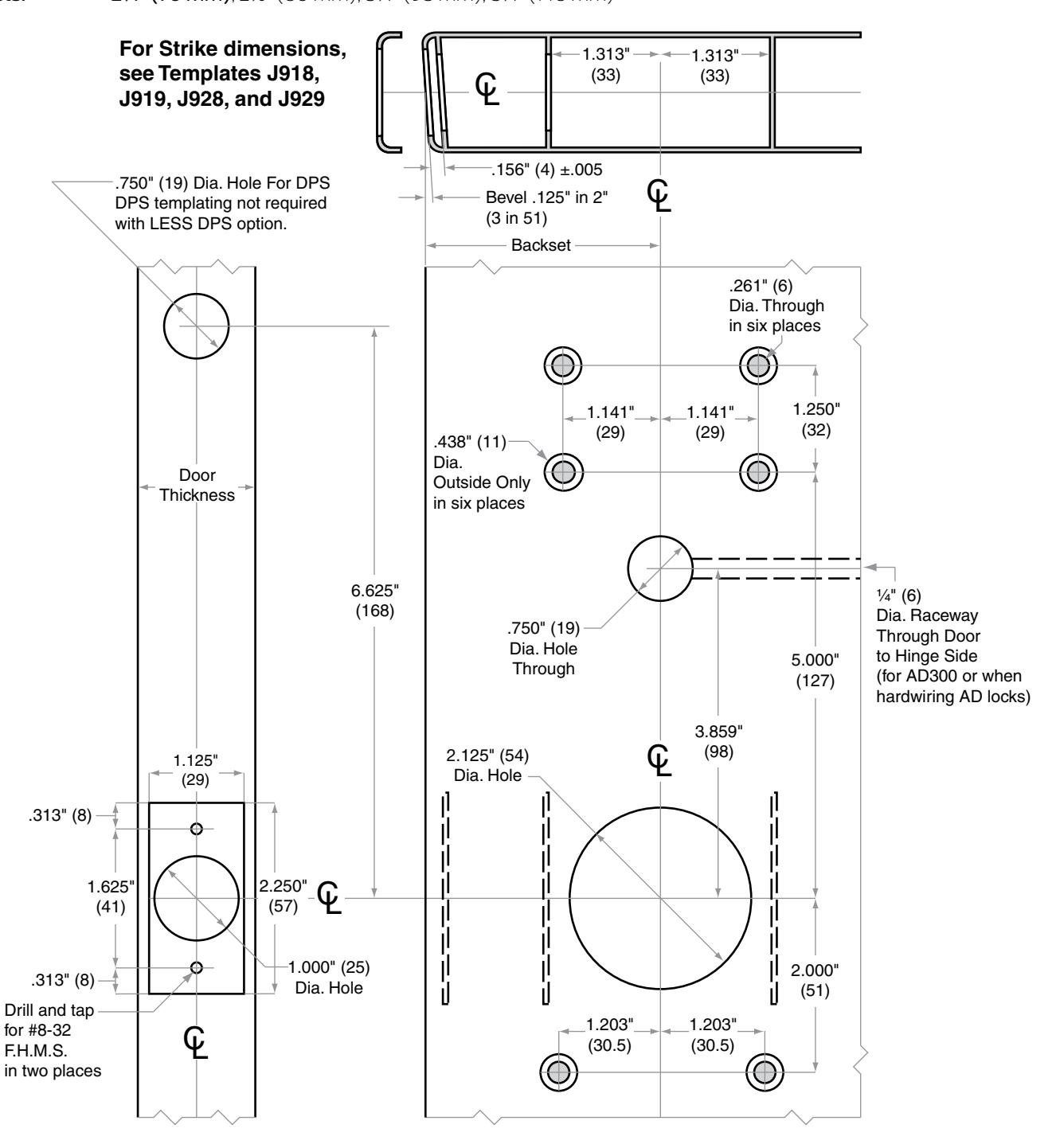

Models AD-200/250/300/400-CY
Door Type: Metal, Flat or Beveled Conforms to ANSI/BHMA A156.115
Door Thickness: 1C\," (35 mm) – 2C\v" (70 mm) Faceplate: Square Corner, 1Z\," (29 mm) wide
Backsets: 2 C\v " (70 mm), 2C\," (60 mm), 3C\v" (95 mm), 5C\v" (146 mm)
Dimensions shown in parentheses () are in millimeters.

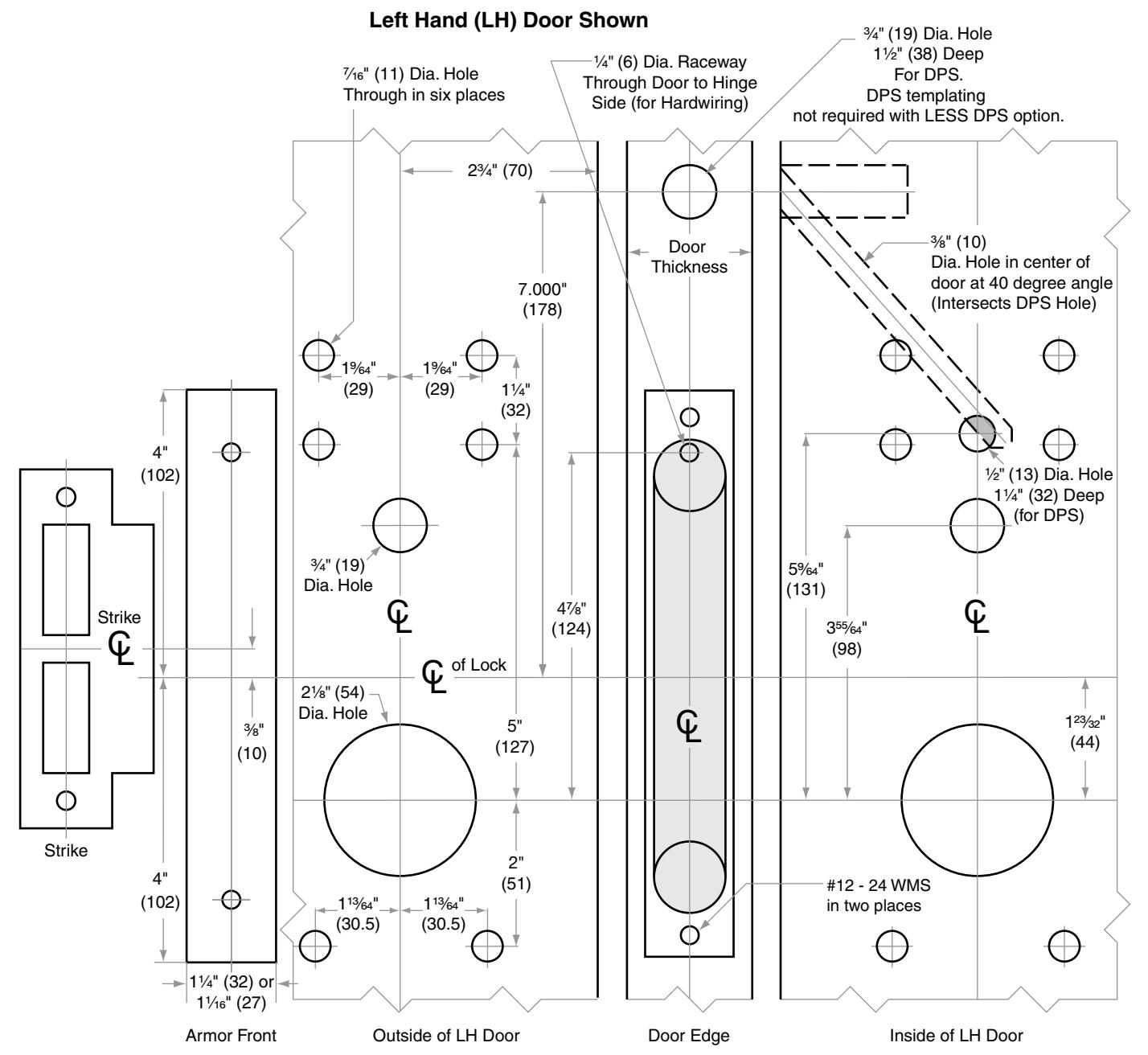

Models AD-200/250/300/400-MS
Door Type: Wood or Composite, Flat or Beveled Conforms to ANSI BHMA A156.115-W
Door Thickness: 1C\," (35 mm) – 2C\v" (70 mm)
Faceplate: Square Corner, 1Z\zn" (27 mm) or 1Z\v" (32 mm) wide
Backsets: 2 C\v " (70 mm)
For Mortise Case Dimensions, see Template L1 For Mortise Strike Dimensions, see Templates J918, J919, and J557
Dimensions shown in parentheses () are in millimeters.

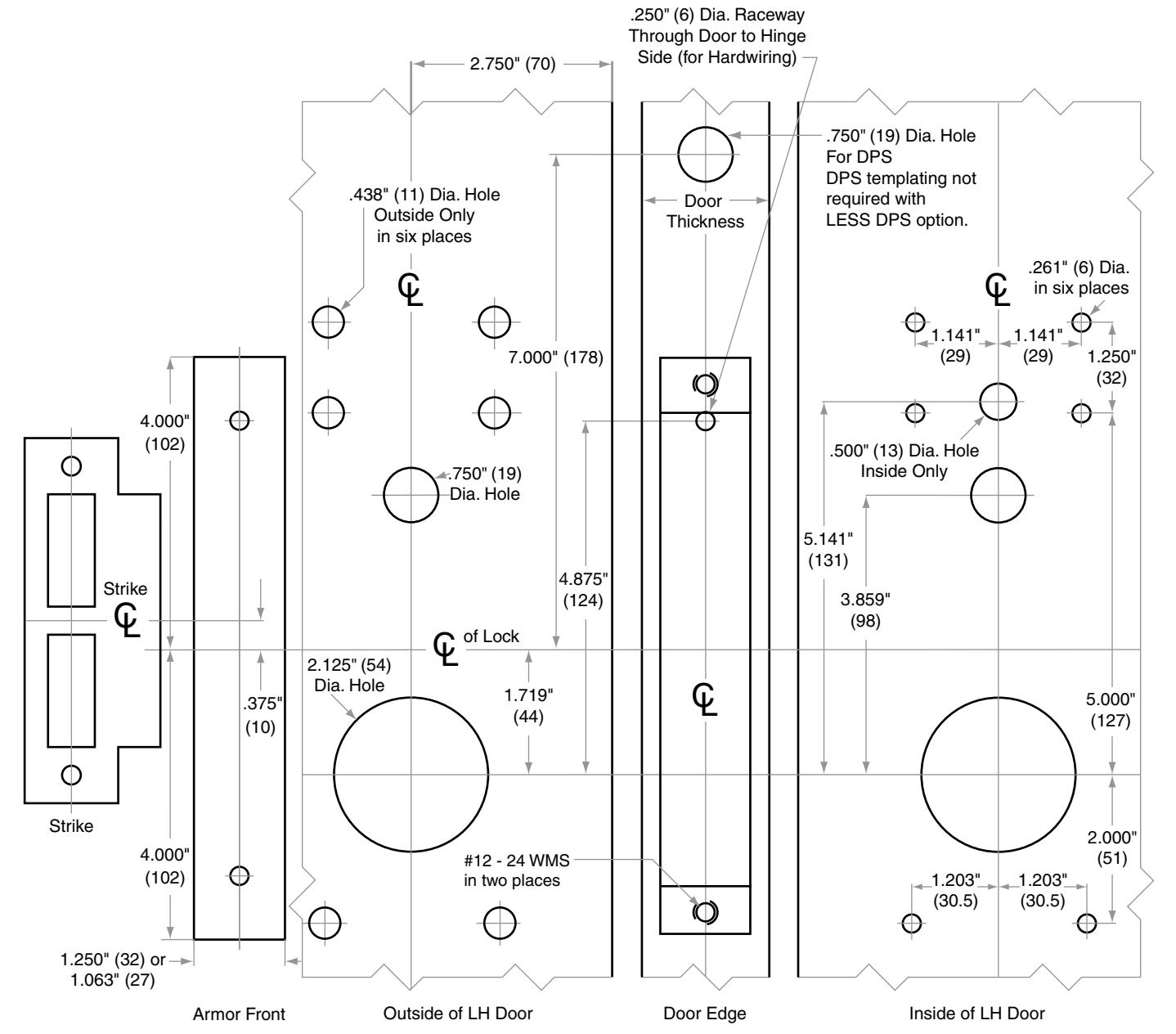

Models AD-200/250/300/400-MS
Door Type: Metal, Flat or Beveled Conforms to ANSI/BHMA A156.115
Door Thickness: 1C\," (35 mm) – 2C\v" (70 mm)
Faceplate: Square Corner, 1Z\zn" (27 mm) or 1Z\v" (32 mm) wide
Backsets: 2 C\v " (70 mm)
For Mortise Case Dimensions, see Template L1 For Mortise Strike Dimensions, see Templates J918, J919, and J557
Left Hand (LH) Door Shown
Dimensions shown in parentheses () are in millimeters.
Door preparation template
AD104

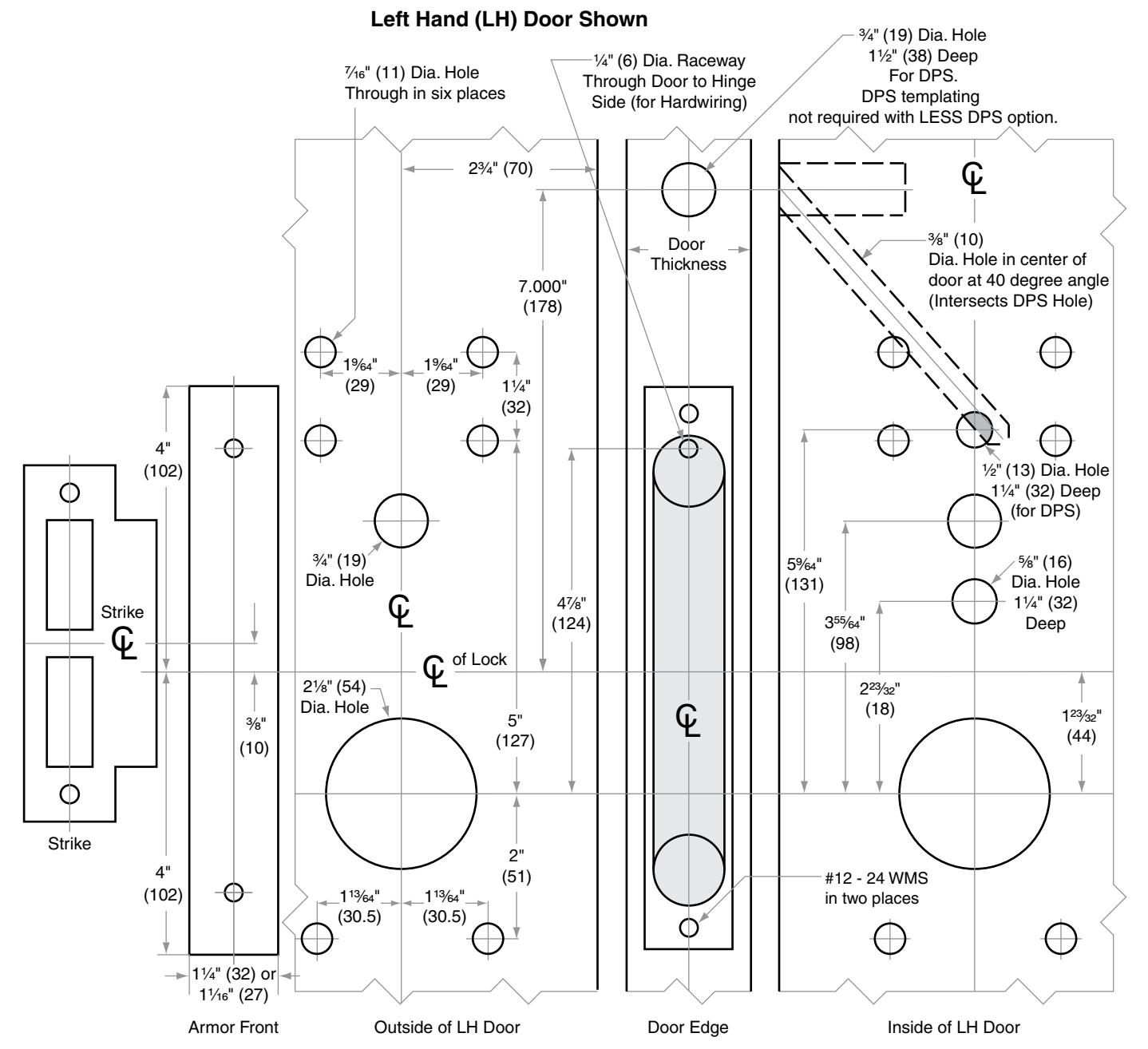

Models AD-200/250/300/400-MD
Door Type: Wood or Composite, Flat or Beveled Conforms to ANSI BHMA A156.115-W
Door Thickness: 1C\," (35 mm) – 2C\v" (70 mm)
Faceplate: Square Corner, 1Z\zn" (27 mm) or 1Z\v" (32 mm) wide
Backsets: 2 C\v " (70 mm)
For Mortise Case Dimensions, see Template L1 For Mortise Strike Dimensions, see Templates J918, J919, and J557
Dimensions shown in parentheses () are in millimeters.

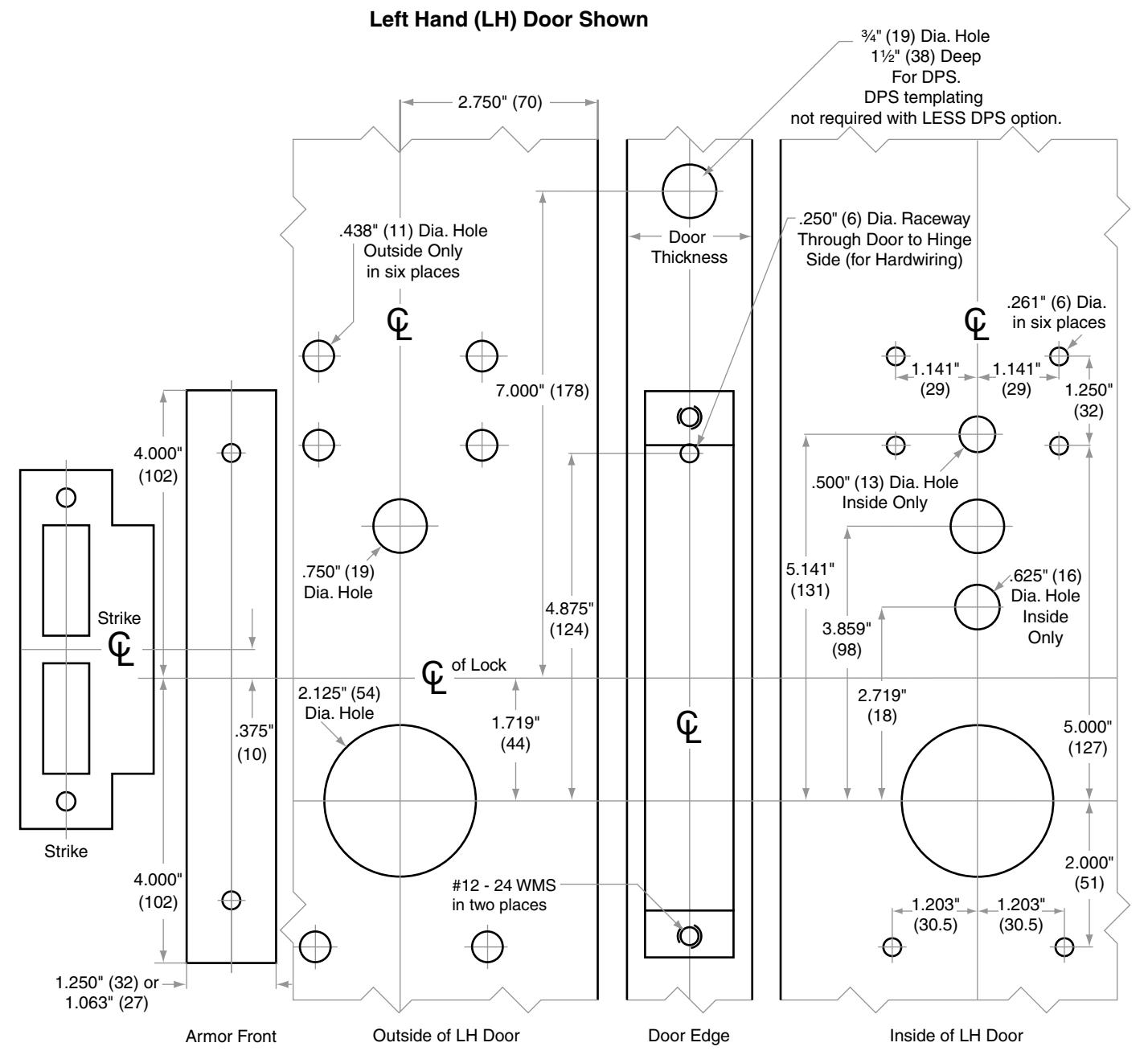

Models AD-200/250/300/400-MD
Door Type: Metal, Flat or Beveled Conforms to ANSI/BHMA A156.115
Door Thickness: 1C\," (35 mm) – 2C\v" (70 mm)
Faceplate: Square Corner, 1Z\zn" (27 mm) or 1Z\v" (32 mm) wide
Backsets: 2 C\v " (70 mm)
For Mortise Case Dimensions, see Template L1 For Mortise Strike Dimensions, see Templates J918, J919, and J557
Dimensions shown in parentheses () are in millimeters.

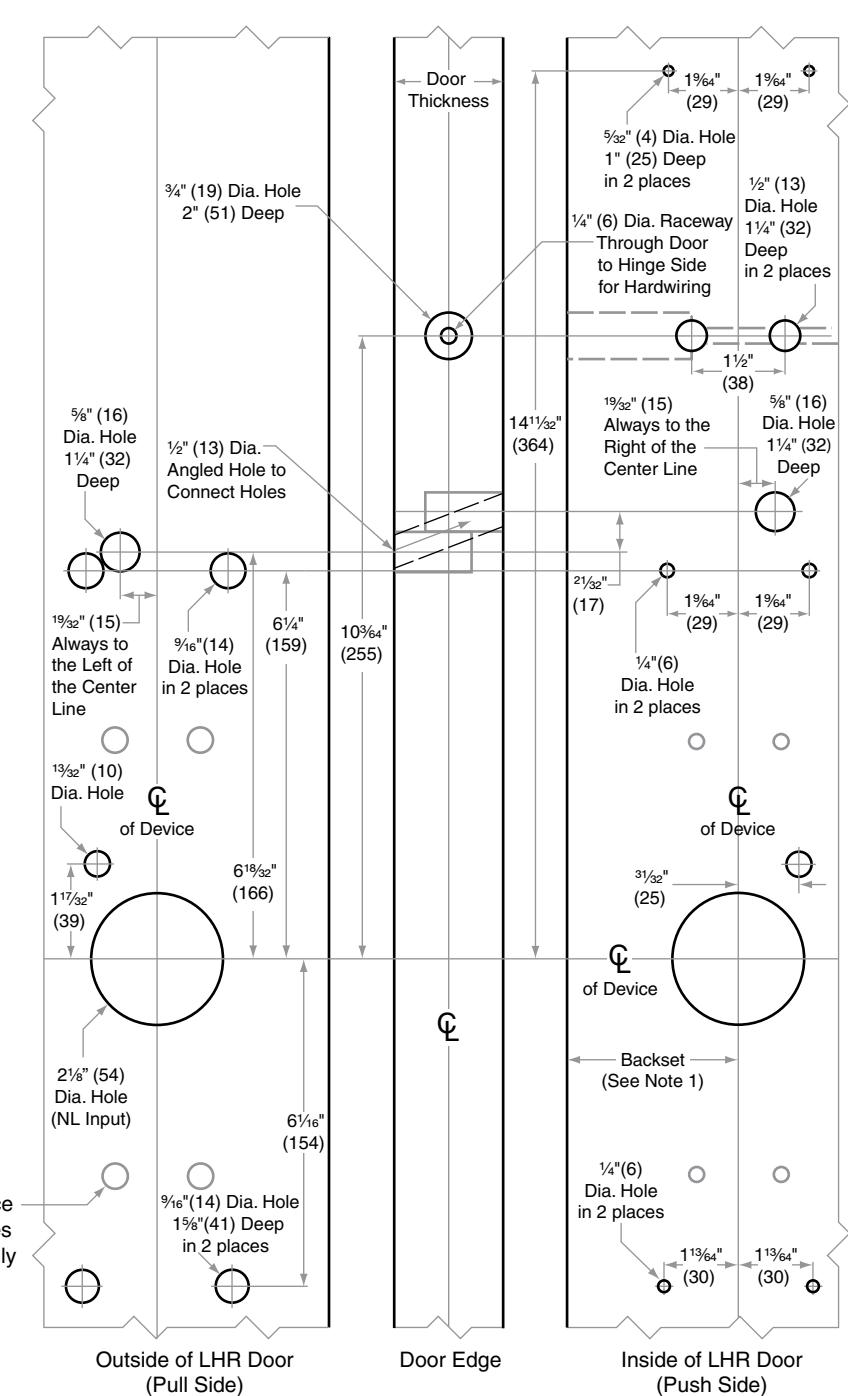

Models AD-200/250/300/400-993R/S
Door Type: Wood Exit Devices: Rim, Surface Vertical
Door Thickness: 1C\v" (44 mm) – 2C\v" (70 mm)
Faceplate: None Backsets: Various
Left Hand Reverse (LHR) Door Shown
Note 1:
For Backset, See Applicable Von Duprin 98-R/99-R, 9827/9927, 22-R, or 2227 Series Exit Device Template.
98/99 Exit Device Holes in 4 places for Reference Only
(Pull Side)
Door preparation template
Dimensions shown in parentheses () are in millimeters.

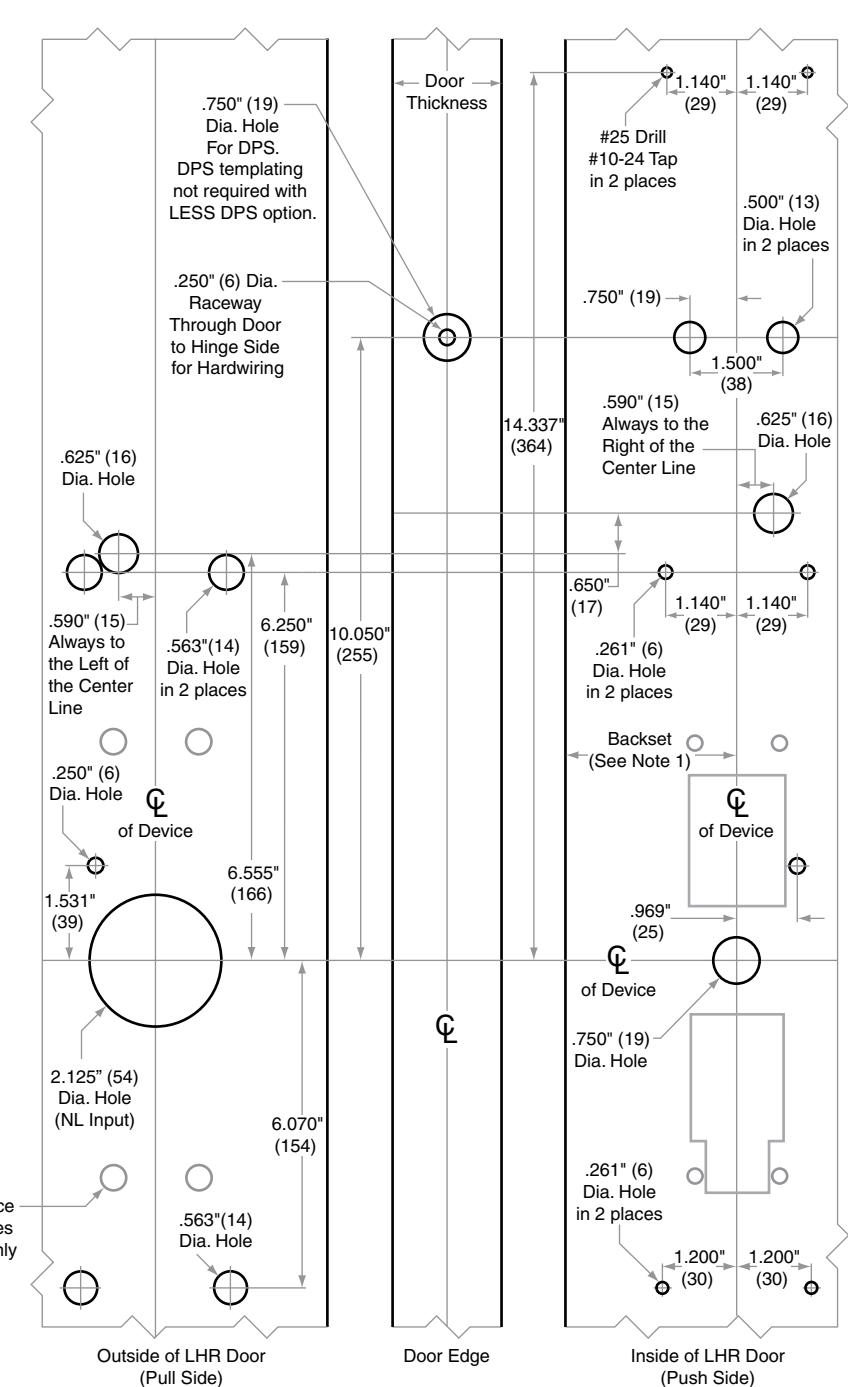

Models AD-200/250/300/400-993R/S
Door Type: Metal Exit Devices: Rim, Surface Vertical
Door Thickness: 1C\v" (44 mm) – 2C\v" (70 mm) Faceplate: None
Backsets: Various
CL Door Thickness 10.050" (255) 2.125" (54) Dia. Hole (NL Input) 1.500" (13) .650" (17) 6.555" (166) .625" (16) Dia. Hole .625" (16) Dia. Hole .750" (19) Dia. Hole For DPS. DPS templating not required with LESS DPS option. .250" (6) Dia. Raceway Through Door to Hinge Side for Hardwiring CL of Device CL of Device .500" (13) Dia. Hole in 2 places Backset (See Note 1) of Device CL .590" (15) Always to the Right of the Center Line .590" (15) Always to the Left of the Center Line 6.070" (154) 1.531" (39) .563" (14) Dia. Hole in 2 places .261" (6) Dia. Hole in 2 places .261" (6) Dia. Hole in 2 places .401" (10) Dia. Hole .969" (25) #25 Drill #10-24 Tap in 2 places 14.337" (364) 6.250" (159) 1.140" (29) 1.140" (29) 1.140" (29) 1.140" (29) 1.200" (30) 1.200" (30) .563" (14) Dia. Hole in 2 places Outside of LHR Door Inside of LHR Door (Push Side) Door Edge
Left Hand Reverse (LHR) Door Shown
Note 1: For Backset, See Applicable Von Duprin 98-R/99-R, 9827/9927, 22-R, or 2227 Series Exit Device Template.
98/99 Exit Device Holes in 4 places for Reference Only
(Pull Side)
Door preparation template
AD108
Dimensions shown in parentheses () are in millimeters.

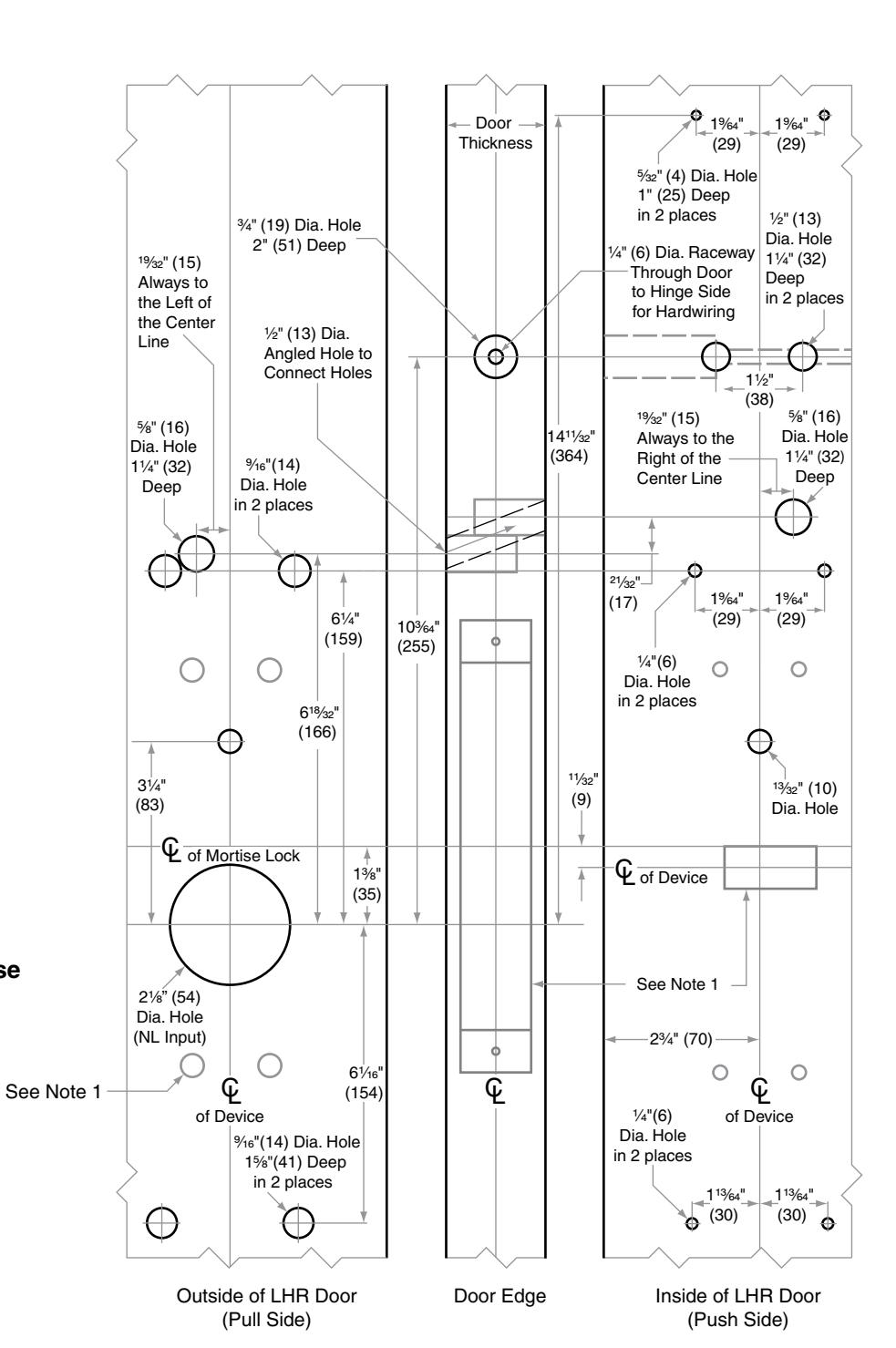

Models AD-200/250/300/400-993M
Door Type: Wood Exit Devices: Mortise Door Thickness: 1C\v" (44 mm) – 2C\v" (70 mm)
Faceplate: None Backsets: Various
Left Hand Reverse (LHR) Door Shown
Note 1:
For Mortise Lock and Mortise Exit Device Preparation See Von Duprin 98/9975 Series Templates
Dimensions shown in parentheses () are in millimeters.
ALLEGION"

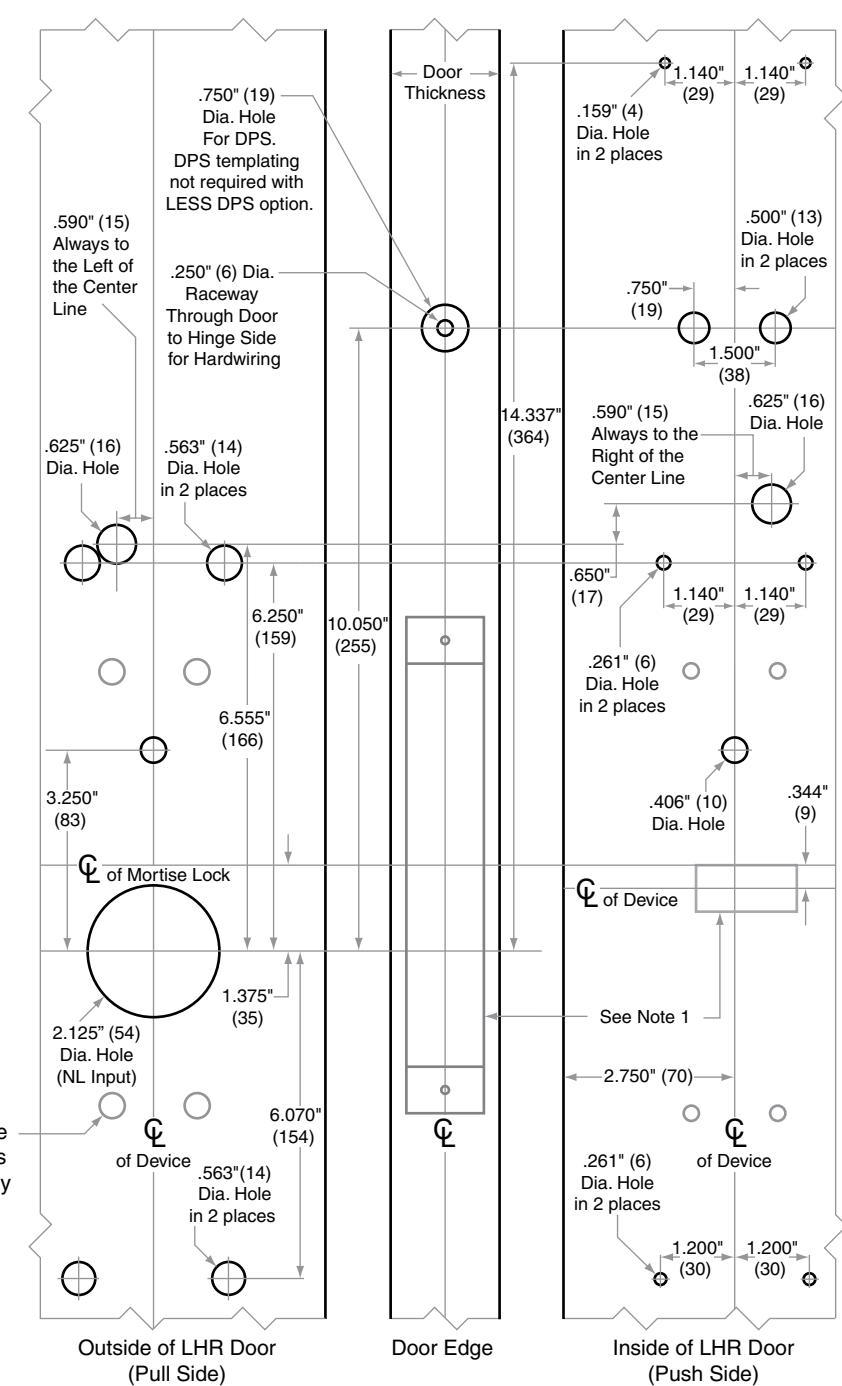

Models AD-200/250/300/400-993M
Door Type: Metal Exit Devices: Mortise Door Thickness: 1¾" (44 mm) – 2¾" (70 mm)
Faceplate: None Backsets: Various
Left Hand Reverse (LHR) Door Shown
Note 1: For Mortise Lock and Mortise Exit Device Preparation See Von Duprin 98/9975 Series Templates
98/99 Exit Device Holes in 4 places for Reference Only
Dimensions shown in parentheses () are in millimeters.
Models AD-200/250/300/400-993R
Door Type: Metal Exit Devices: Concealed Vertical
Door Thickness: 1C\v" (44 mm) – 2C\v" (70 mm)
Faceplate: None Backsets: Various
Left Hand Reverse (LHR) Door Shown
Note 1: For backset and exit device cutouts, see Von Duprin 9847/9947 series exit device templates.
98/99 Exit Device Holes in 4 places for Reference Only
Dimensions shown in parentheses () are in millimeters.
