Schlage_10-025_10-072_10-087_Strikes_Wood_Door_Jamb_Template_-_English_102412

Strikes

Models 10-025, 10-072, 10-087, 10-144, 10-145

Jamb Type: Wood

Style: ANSI Standard for 1 3/4" (44 mm) doors

Standard for: AL-Series (10-025) | D-Series Knobs (10-025) | ND-Series Lever (10-025) | L/LV9000-Series (10-072) |

L9000-Series HSLR (10-144, 10-145)

Optional for: A-Series | B250-Series | F-Series | S-Series

Dimensions shown in parentheses () are in millimeters.

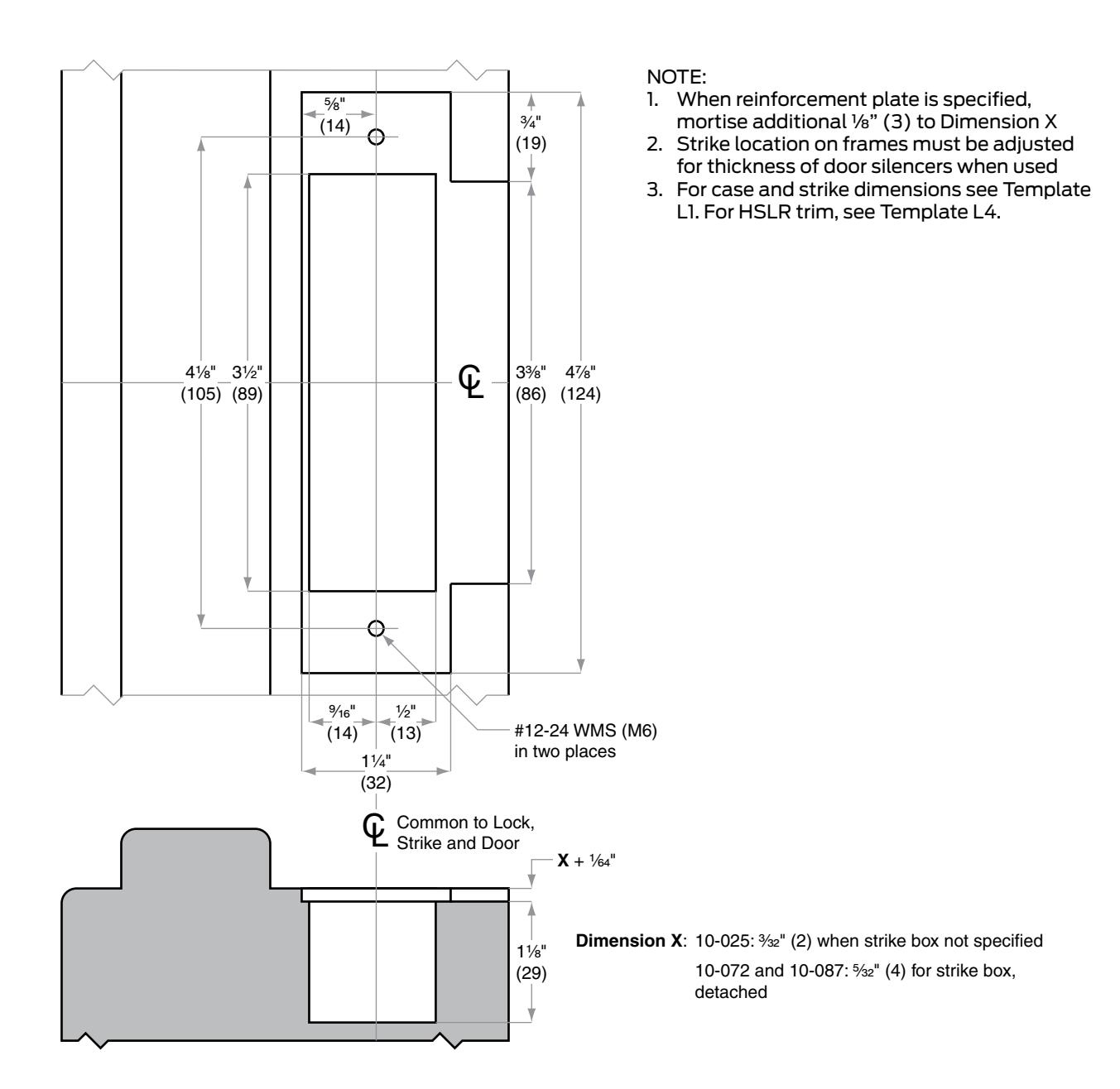

Door preparation template

J918
