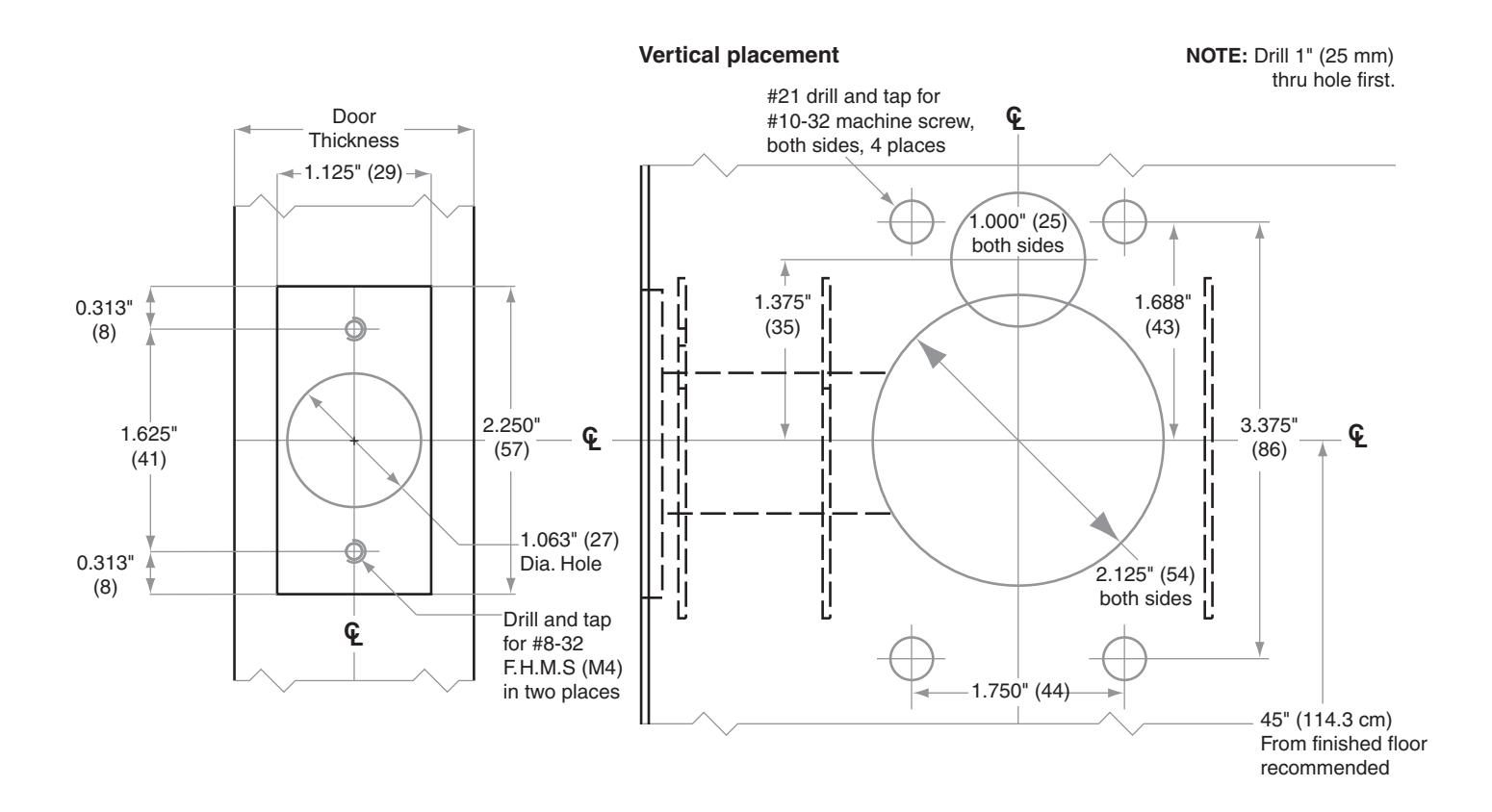

Schlage PL7-PL8 Vertical Placement Template For Metal Door

PL-Series Hospital Latch

Model PL7, PL8 Privacy

Door Type: Metal, Flat or Beveled

Door Thickness: 1C\v" (44 mm)

Faceplate: Square Corner, 1Z\," (29 mm) wide

Backset: 2 C\v " (70 mm), 3C\v" (95 mm), 5" (127 mm), 7" (178 mm)
