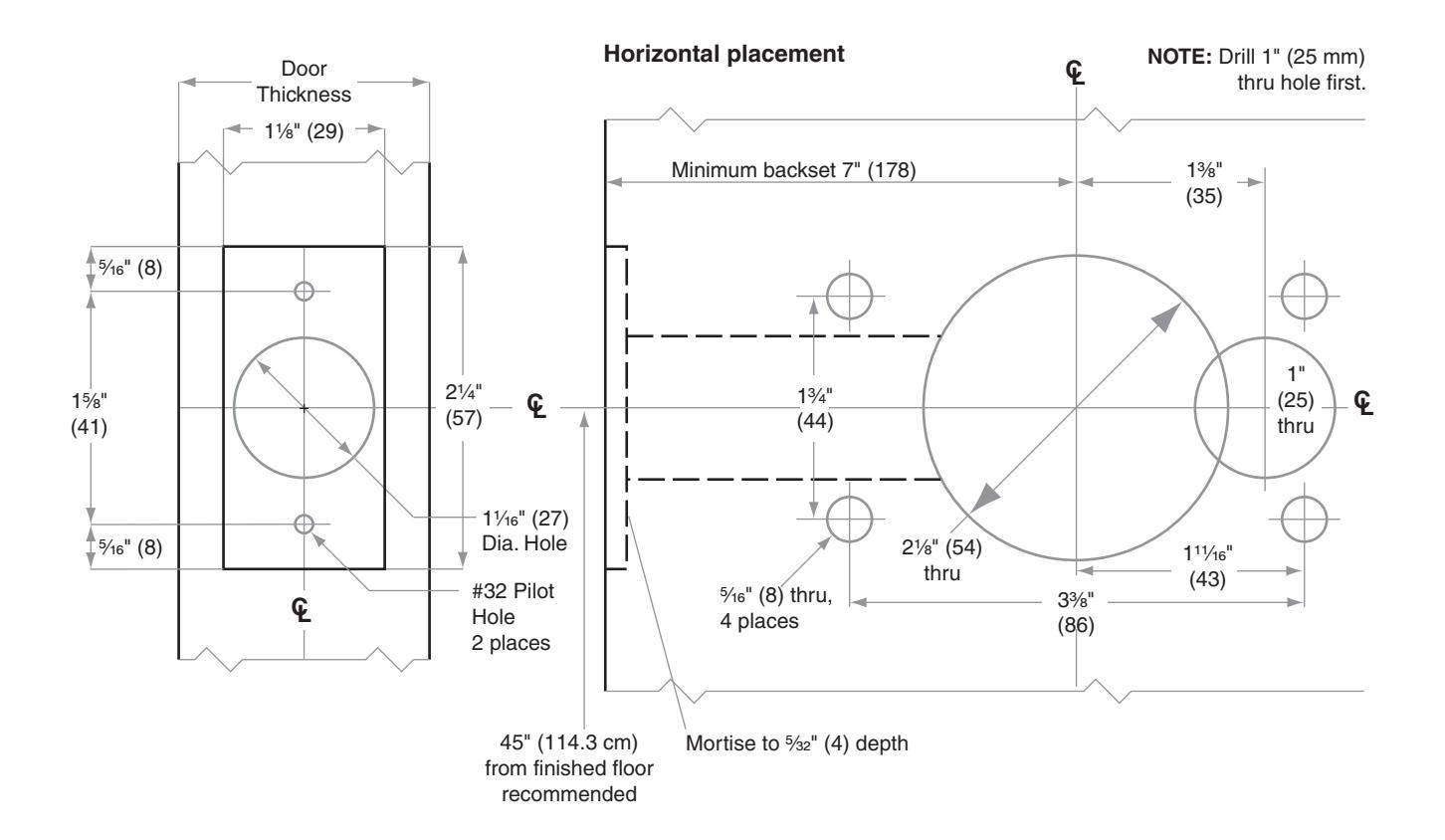

Schlage PL7-PL8 Horizontal Placement Template For Wood Door
Open the original PDF document
View PDF
PL-Series Hospital Latch
Model PL7, PL8 Privacy
Door Type: Wood or Composite, Flat or Beveled
Door Thickness: 13/4" (44 mm)
Faceplate: Square Corner, 11/8" (29 mm) wide
Backsets: 7" (178 mm)
