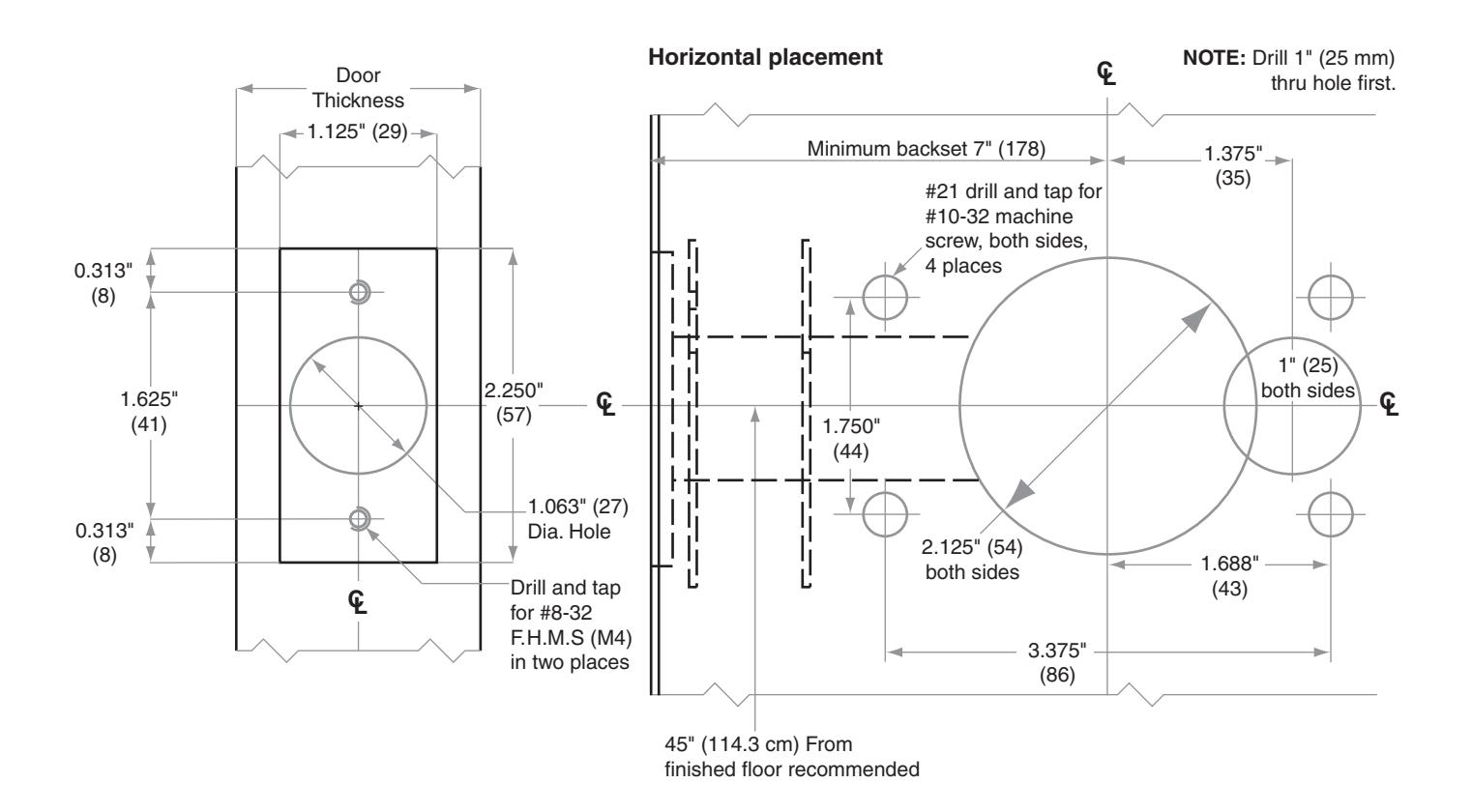

Schlage PL7-PL8 Horizontal Placement Template For Metal Door

Open the original PDF document

PL-Series Hospital Latch

Model PL7, PL8 Privacy

Door Type: Metal, Flat or Beveled

Door Thickness: 13/4" (44 mm)

Faceplate: Square Corner, 1%" (29 mm) wide

Backset: 7" (178 mm)
