ND Series
Grade 1 cylindrical lock
Grade 1 is just the beginning

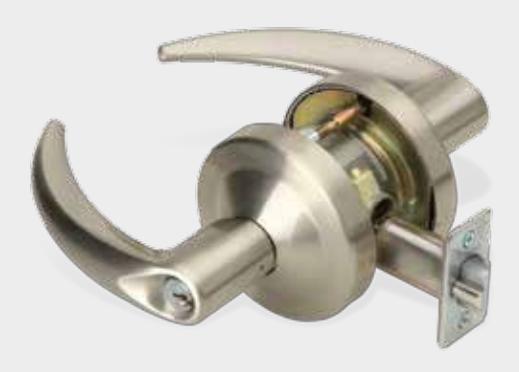

Schlage® is pleased to introduce the redesigned ND Series Grade 1 cylindrical lock. Already exceeding BHMA Grade 1 standards, the redesigned ND uses new springcages, levers and latches to take strength, performance and reliability to an all-new level.
Improved strength and security
- § No access with minimum 3,100 in-lbs of lever torque (2.6x BHMA, for general abuse)1
- § No access with minimum 1,600 lbs of offset lever pull (8x BHMA, for pry-bar attacks)1
- § No access with minimum 100 vertical impacts (20x BHMA, for sledgehammer attacks)1,2
Improved performance
- § Near-zero droop and wobble beyond 16 million cycles (after 16x BHMA) – without the use of set screws or O-rings1
- § Latch retraction with up to 200 pound preload (4x BHMA) for confident operation in warped and preloaded doors
Improved reliability
- § Cast steel spindle construction exceeding 16 million cycles
- § Withstood aggressive Schlage development testing including lever-snap and abusive cycling
- 202, 203) requirements for hurricanes 1 Beyond grade 1 performance for ND locks with Schlage cylinders only (standard, FSIC & SFIC). Performance with non-Schlage cylinders will exceed BHMA Grade 1 requirements but may be less than the performance of products with Schlage cylinders.
- 2 Vertical impact testing stopped after 100 blows with no failure or indication of stress.
Capabilities
Functionality
- § 31 mechanical functions
-
§ 6 wired functions with:
- − Autodetecting 12-24V DC input
- − Switch-selectable EL/EU operation
- − Modular request to exit (RX)
- − 0.230A max/0.010A holding current
- § Available in 10 finishes, 5 lever designs, and 2 rose designs
- § Multiple key systems available open, patented, restricted, geographic exclusive, UL437
- § Support for 10 non-Schlage cylinders including Best, Corbin Russwin, Medeco, Sargent and Yale
Certifications
- § Exceeds BHMA A156.2 requirements for grade 1 cylindrical locks
- § Exceeds BHMA A156.25 requirements for indoor electrified locks
- § UL10C listed for 3-hour fire doors up to 4'0" x 10'0"
- § Meets Florida Building Code (ASTM E330, E1886, E1996) and Miami Dade (TAS 201,
How to order - New locks
| ND Series locks | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Lock type |
Function +
cynlinder |
Outside lever | Outside finish | Inside lever | Inside finish | Latch | Strike |
Door
thickness |
Extension | Dimension | Options |
| Mechanical | ND53PD | ATH | 626 | ||||||||
| Electrified | ND80EUZD | RHO | 605 | SPA | 619 | 14-048 | 10-013 | 214 | EE | 118 | |
| Lock specifications | |||||||||||
| Function | See catalog or pricebook for full list of ND mechanical and wired electrified functions | ||||||||||
| Cylinder | P (Standard cylinder, patented Everest 29) | R (FSIC, patented Everest29) | G (SFIC, patented Everest29) | ||||||||
| L (Less cylinder) | J (FSIC, less core) | B (SFIC, less core) | |||||||||
| C (less cylinder, double cylinder functions) | T (FSIC, Construction Core) | H (SFIC, construction core) | |||||||||
| Z (7-pin standard cylinder, Everest SL) | BDC (SFIC, disposable core) | ||||||||||
| Non-Schlage cylinders: L-SAR (Sargent KIL); J-SAR (Sargent FSIC); L-CO6 (CR KIL); J-CO6 (CR FSIC); J-CO7 (CR FSIC | |||||||||||
| 7-pin); J-YA6 (Yale FSIC & Medeco 31); J-YA7 (Yale FSIC 7-pin); J-MED (Medeco 32) | |||||||||||
| Note: Non-Schlage cylinders available in ATH, RHO, SPA, TLR levers only, except CR and Yale FSIC 7-pin available in RHO lever only | |||||||||||
| Outside lever | ATH (Athens), OME (Omega), RHO (Rhodes), SPA (Sparta), TLR (Tubular) | ||||||||||
| Note: Specify tactile as 8AT (Athens), 8RO (Rhodes), 8SP (Sparta), 8TR (Tubular) | |||||||||||
| Outside finish | 605 Bright brass (US3) | 619 Satin nickel (US15 | 626 | Satin chrome (US26D) | |||||||
| 606 Satin brass (US4) | 622 Matte black (US19) | 626AM Satin chrome anti-microbial | |||||||||
| 612 Satin bronze (US10) | 625 Bright chrome (US26) | 643e | Aged bronze (US11) | ||||||||
| 613 Oil rubbed bronze (US10B) | |||||||||||
| Inside lever | Specify only if different from outside lever. Same options as outside lever. | ||||||||||
| Inside finish | Specify only if different from outside finish. Same options as outside finish. | ||||||||||
|
Latch
Specify only if different from standard latch. |
|||||||||||
| Strike | Specify only if different from standard strike. | ||||||||||
| Door thickness |
Specify only if outside standard door range (1 5⁄8"-2 1
⁄8"). Optional range from 1 3⁄8" - 6". |
||||||||||
| Extension |
Specify only for doors 2 1
⁄8" or greater. |
||||||||||
| Example: EE=Extended Equally, EI=Extended Inside, EO = Extended Outside, ED = Extended Differently | |||||||||||
| Dimension | Specify only for non-standard strike lip length. | ||||||||||
| Options | Specify any additional requirements or options. | ||||||||||
| Example: KA = Keyed Alike, KD = Keyed Different, 0bit, etc… | |||||||||||
Conversion kits
Conversion kits are available that allow prior versions of the ND lock to be upgraded to the new "beyond grade 1" status. Conversion kits consist of a springcage + lever, and may be ordered for either or both sides of the lock. Prior ND components will continue to be supported.
Allegion, the Allegion logo, Schlage, and the Schlage logo are trademarks of Allegion plc, its subsidiaries and/or affiliates in the UnitedStates and other countries. All other trademarks are the property of their respective owners.
| Conversion kit specifications - specify each of the following | |||||||
|---|---|---|---|---|---|---|---|
| Part number | 40-400 (outside trim), 40-600 (inside trim) | ||||||
| Function | See catalog or pricebook for full list of functions | ||||||
| Trim | ATH (Athens), OME (Omega), RHO (Rhodes), SPA (Sparta), TLR (Tubular) | ||||||
| Note: Specify tactile as 8AT (Athens), 8RO (Rhodes), 8SP (Sparta), 8TR (Tubular) | |||||||
| Finish | 605 Bright brass (US3) | 625 | Bright chrome (US26) | ||||
| 606 Satin brass (US4) | 626 | Satin chrome (US26D) | |||||
| 612 Satin bronze (US10) | 626AM Satin chrome anti-microbial | ||||||
| 613 Oil rubbed bronze (US10B) | 643e | Aged bronze (US11) | |||||
| 619 Satin nickel (US15) | |||||||
| Core | KIL (standard Schlage cylinder) | J-CO6 (Corbin Russwin FSIC) | |||||
| (cylinder trim only) | FSIC (Schlage FSIC) | J-YA6 (Yale and Medeco 31 FSIC) | |||||
| SFIC (SFIC) | J-SAR (Sargent FSIC) | ||||||
| L-SAR (Sargent KIL) | |||||||
| Example | ||||||||
|---|---|---|---|---|---|---|---|---|
| Part number | Function | Trim | Finish | Core (cylinder trim only) | ||||
| 40-400 | ND50 | RHO | 626 | KIL | ||||
About Allegion
Allegion (NYSE: ALLE) is a global pioneer in safety and security, with leading brands like CISA®, Interflex®, LCN®, Schlage®, SimonsVoss® and Von Duprin®. Focusing on security around the door and adjacent areas, Allegion produces a range of solutions for homes, businesses, schools and other institutions. Allegion is a $2 billion company, with products sold in almost 130 countries. For more, visit www.allegion.com.
