Schlage JD60 JD62 JD81 Door Manufacturer Template Wood or Composite Round Corner

JD-Series

Models JD60, JD62, JD81

Door Type: Wood or Composite, Flat or Beveled

Door Thickness: 1C\," (35 mm)–1C\v" (57 mm)

Faceplate: Round Corner, Z\v" (6 mm) Radius, 1" (25 mm) wide

Backsets: 23 / 8," (60 mm), 23 / 4" (70 mm)

Dimensions shown in parentheses () are in millimeters. Template is not to scale. Standard backset in bold.

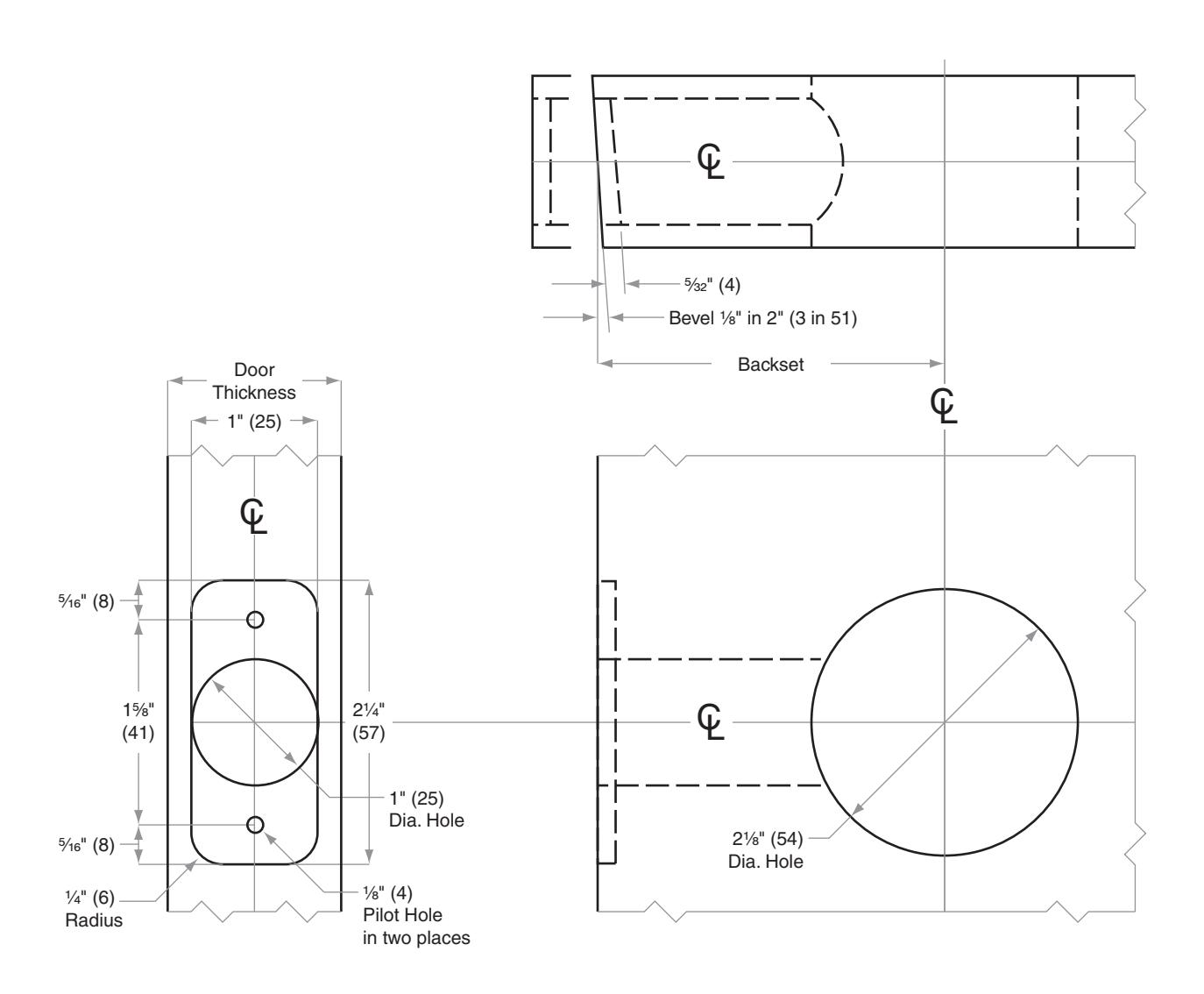

Door preparation template
