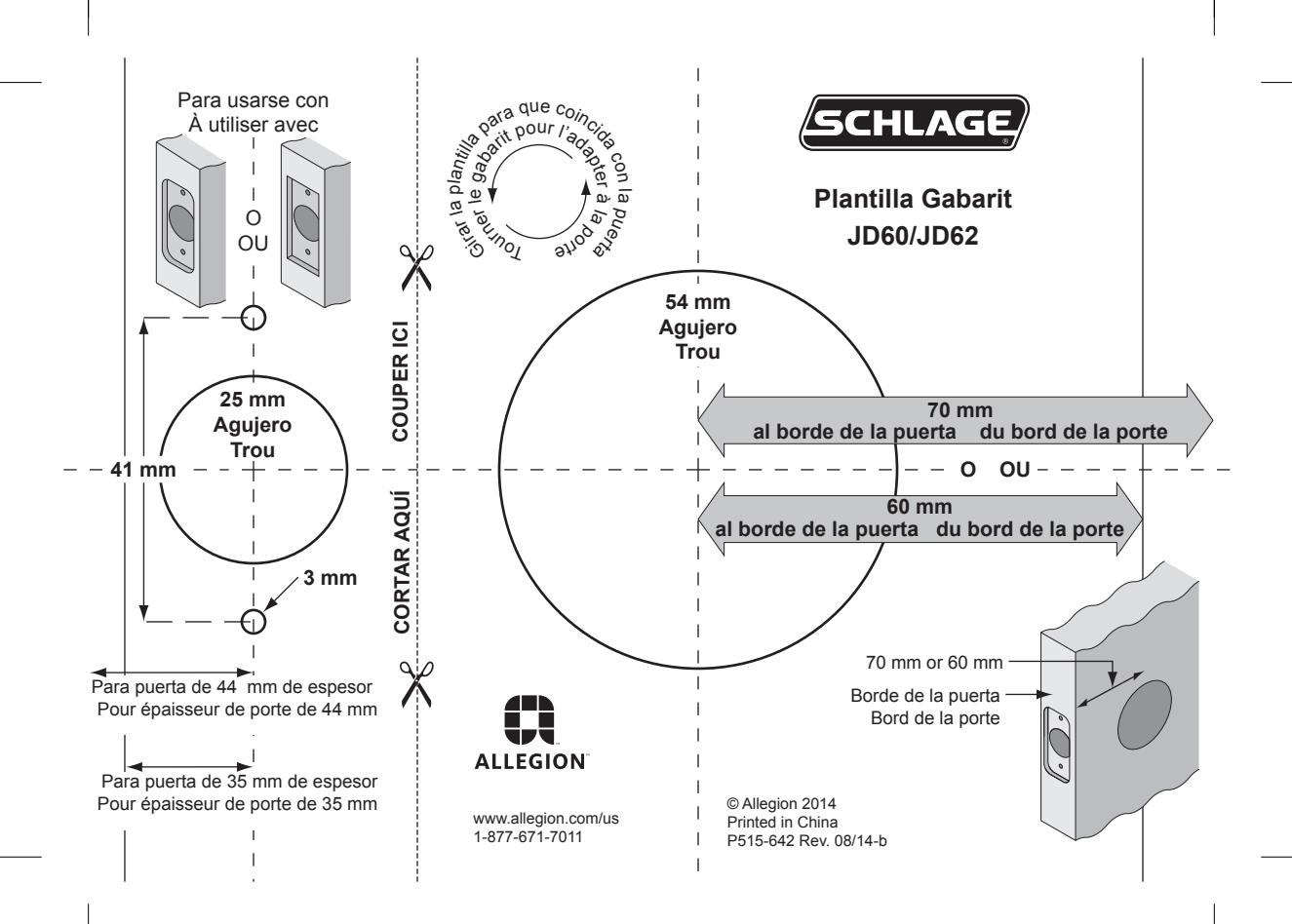

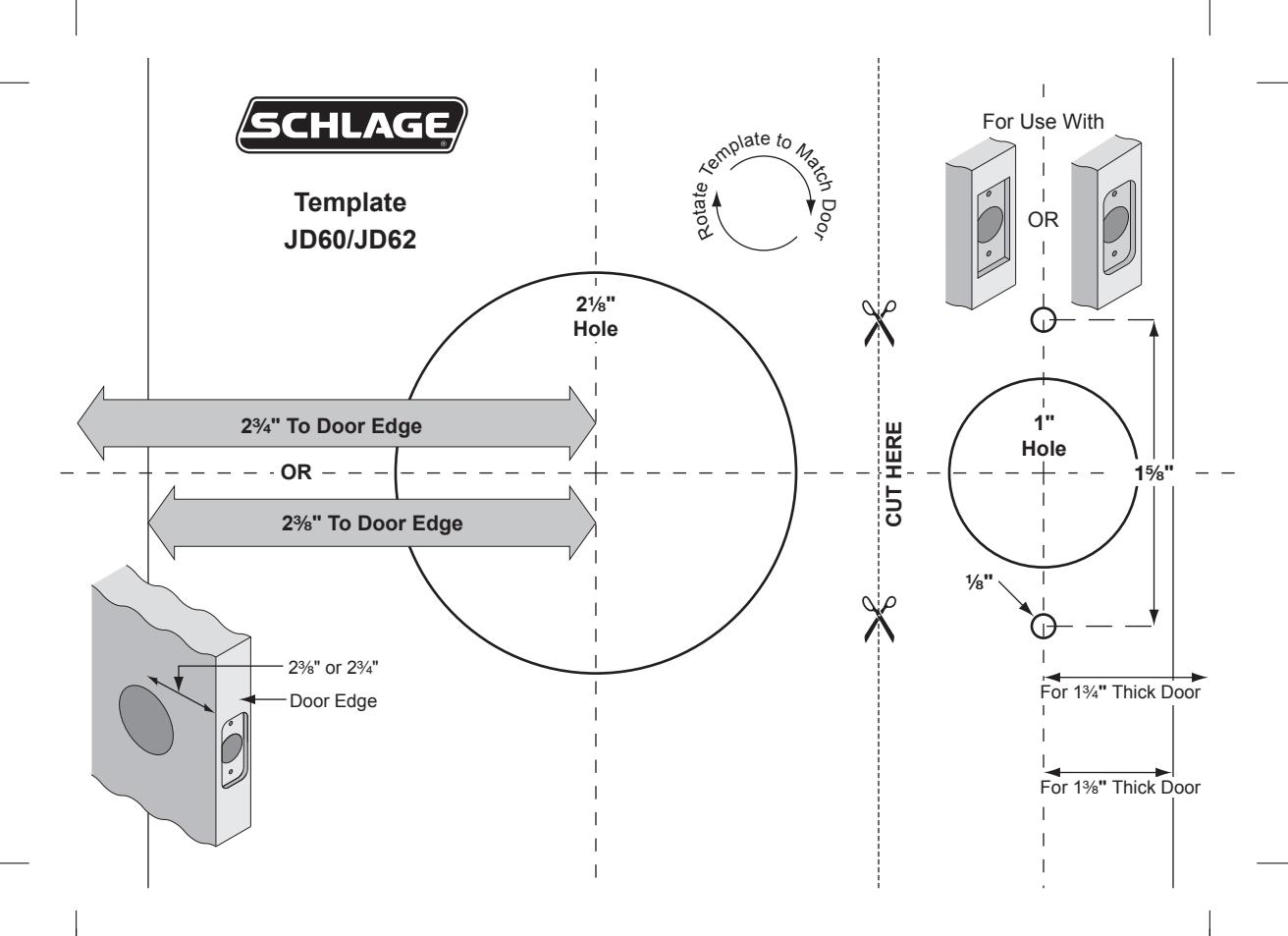

Schlage JD60 JD62 J Series Deadbolt Door Prep Template
Open the original PDF document
View PDF
BEGINNING SHEET FINAL SHEET
| Additional Notes: | |||||||
|---|---|---|---|---|---|---|---|
| Revision History | Revision Description: | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| А | В | С | D | Е | F | B > Revised artwork | ||||
| G | н | ı | ||||||||
| Material | Edited By | Approved By | EC Number | Release Date | ||||||
| White Paper | E. Kelso | L. Blocker | 03-14 | |||||||
| Notes | Notes | Title | ||||||||
| printed two sides printed black | Template JD60/62 | |||||||||
| 3. tolerance: ± .13 | Creation Date Number | Revision | ||||||||
|
01-31-07 | P515-642 | В | |||||||
| 3. printer | 3. printed in Country may vary |
Created By
E. Kelso |
Activity
3899 Hancock Expwy |
|||||||
| Software: InDesign CS6 | Security, CO 80911 | Allegion 2014 | ||||||||
