Schlage Hospital Latch Standard Strike Jamb Prep Metal Template_113707

Open the original PDF document

View PDF

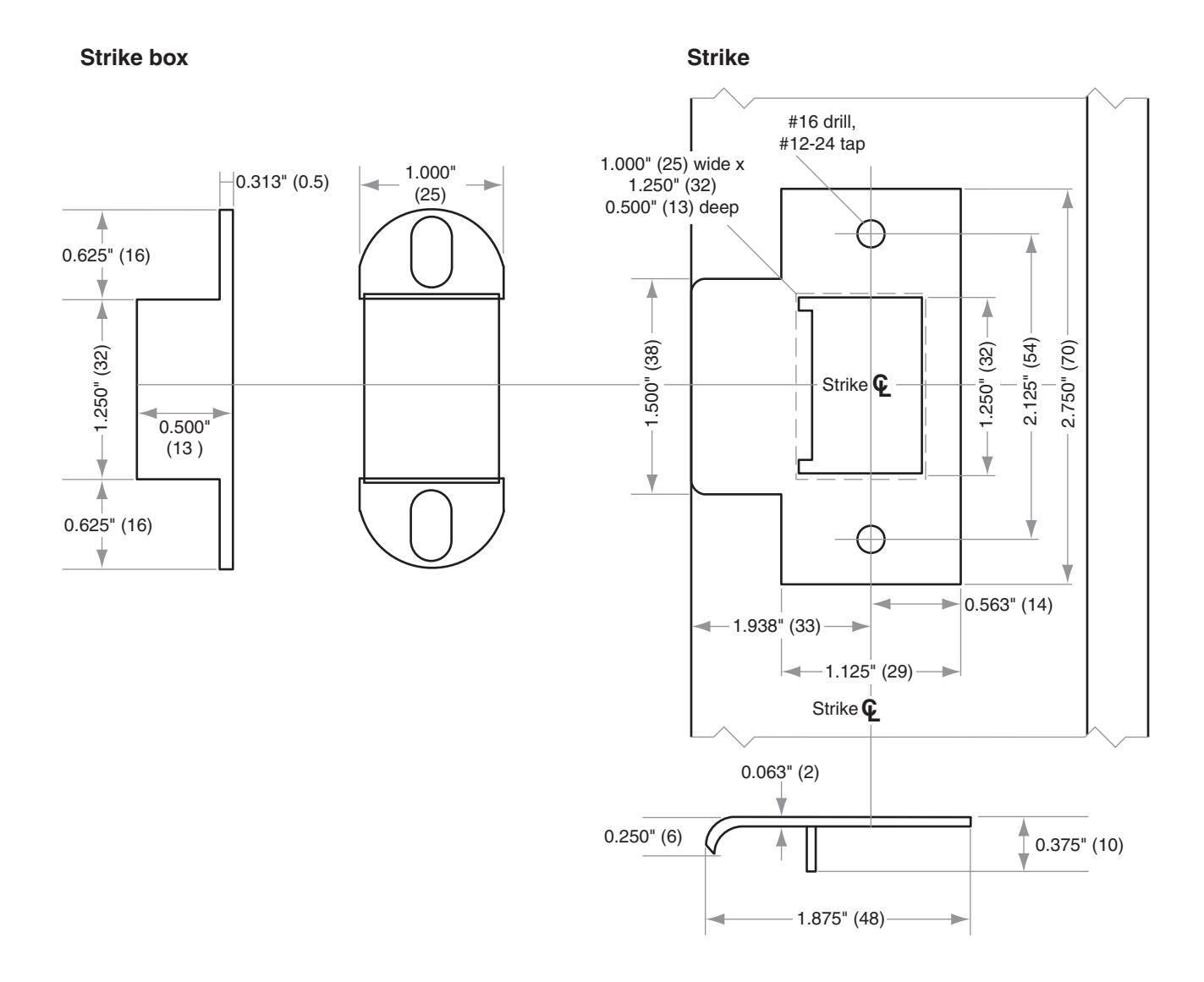

Strike

Jamb Type: Metal

Style: Standard 2 3/4" Square corner

Standard for: HL6 Passage latch, PL7 and PL8 Privacy latch
