Schlage Hospital Latch Mortise Strike Jamb Prep Metal Template_113709
Open the original PDF document
View PDF

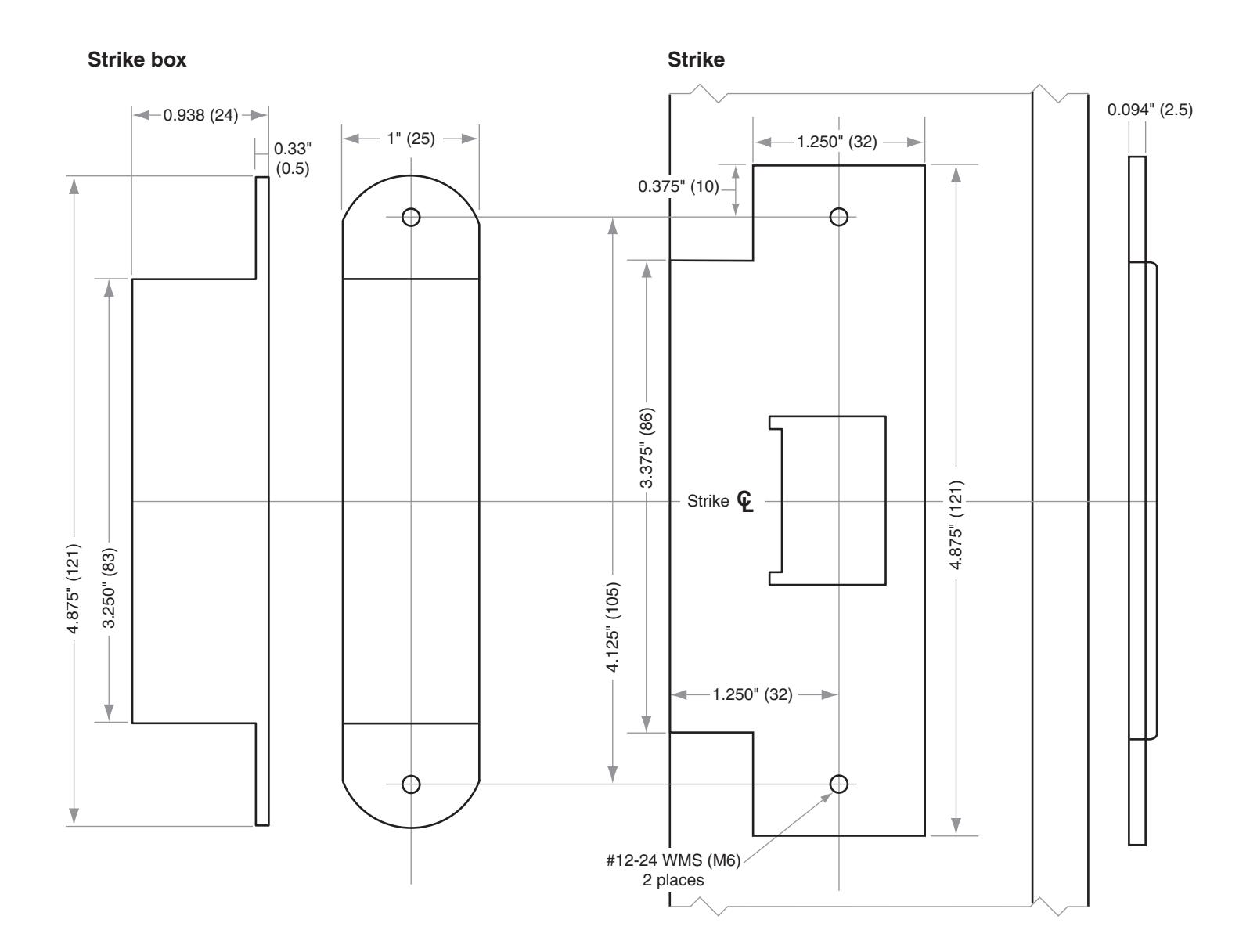

Strike
Jamb Type: Metal
Style: ASA 4 7/8" Square corner
Standard for: HL6-9000
Dimensions shown in parentheses () are in millimeters.
Door preparation template
