INSTALLATION INSTRUCTIONS

HL6T-7500 PULL LATCH

NOTE: DOOR AND FRAME SHOULD BE PREPPED FOR VON DUPRIN 7500 SERIES LOCK.

• A. INSTALL DOOR. 1

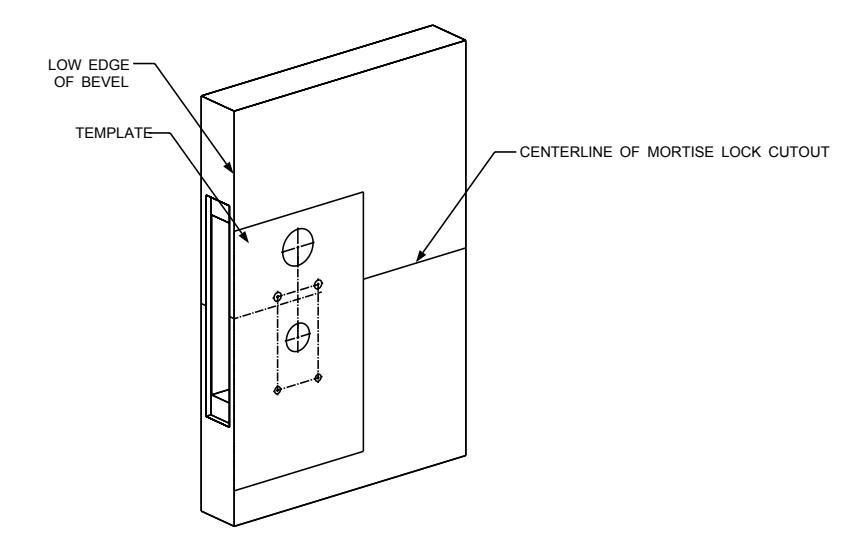

  • B. MARK HORIZONTAL CENTERLINE OF MORTISE LOCK CUTOUT ON FACE AND EDGE OF DOOR.
  • C. PREPARE DOOR AS INDICATED ON TEMPLATE.

• INSTALL 7500 SERIES STRIKE PER VON DUPRIN INSTALLATION INSTRUCTIONS. 2
• FOR WOOD DOORS ONLY, INSTALL STUD ASSEMBLY (EITHER THRU THE TOP 2 MOUNTING HOLES FOR VERTICAL PADDLE MOUNTING OR THRU THE FRONT 2 MOUNTING HOLES FOR HORIZONTAL PADDLE MOUNTING). 3
• INSTALL 7500 SERIES LOCK PER VON DUPRIN INSTALLATION INSTRUCTIONS. 4
• REMOVE COVER SCREWS AND REMOVE COVER FROM PULL HANDLE ASSEMBLY. CAM SHOULD BE POSITIONED AS SHOWN BELOW. 5

© Allegion 2018 Printed in U.S.A. 829363 Rev. 04/18-c

• INSTALL PULL HANDLE ASSEMBLY WITH LOCK SHAFT IN KNOB HUB. 6
• SECURE PULL HANDLE ASSEMBLY. FOR THE WOOD DOORS USE 4 OF THE #10-32 KEPS NUTS AND 2 OF THE #10-32 X 2 3/4" FPHMS. FOR METAL DOORS USE 4 OF THE #10-32 X 3/8" TRPHMS. 7
• INSTALL LOCK CYLINDERS AS NECESSARY AND SECURE. PADDLES ON KEY SIDE MUST BE MOUNTED IN DOWN OR HORIZONTAL POSITIONS. 8
• INSTALL COVER. 9

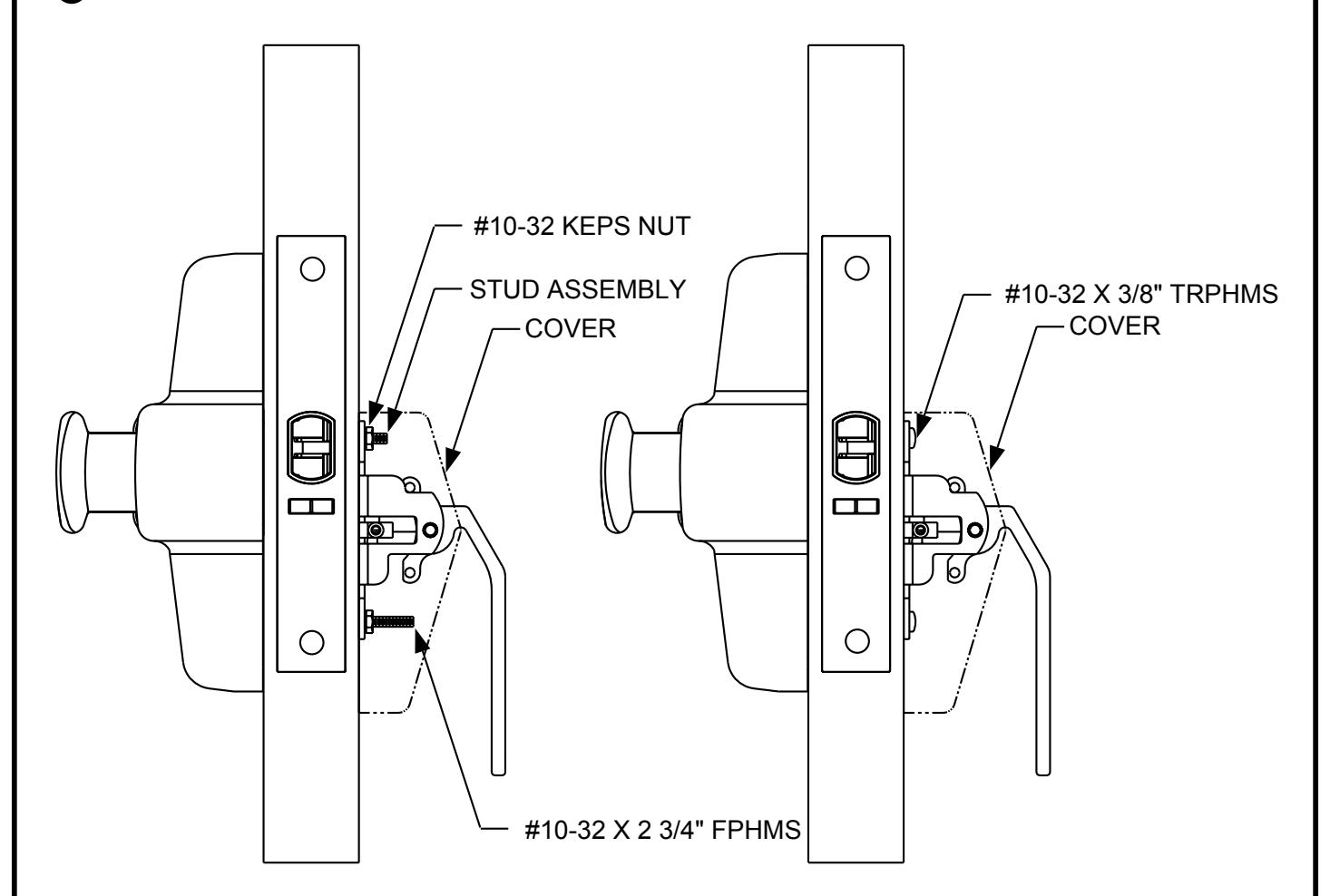

WOOD DOOR APPLICATION HOLLOW METAL DOOR APPLICATION

APPLICATION	QTY	FASTENER DETAIL
HANDLE ASSEMBLY	2	#10-32 X 2 3/4" FPHMS
HANDLE ASSEMBLY	2	#10-32 X 2 3/4 TRPHMS
HANDLE ASSEMBLY	4	#10-32 KEPS NUT
HANDLE ASSEMBLY	1	STUD ASSEMBLY
HANDLE ASSEMBLY	4	#10-32 X 3/8" TRPHMS
COVER	4	#6-32 X 3/8" UPHMS
