Schlage HL6 Passage Hospital Latch Door Prep Metal Template_113697

HL-Series Hospital Latch

Models HL6 Passage

Door Type: Metal, Flat or Beveled

Door Thickness: 1C\v" (44 mm)

Faceplate: Square Corner, 1Z\," (29 mm) wide

Backsets: 2 C\v " (70 mm), 3C\v" (95 mm), 5" (127 mm), 7" (178 mm)

Dimensions shown in parentheses () are in millimeters.

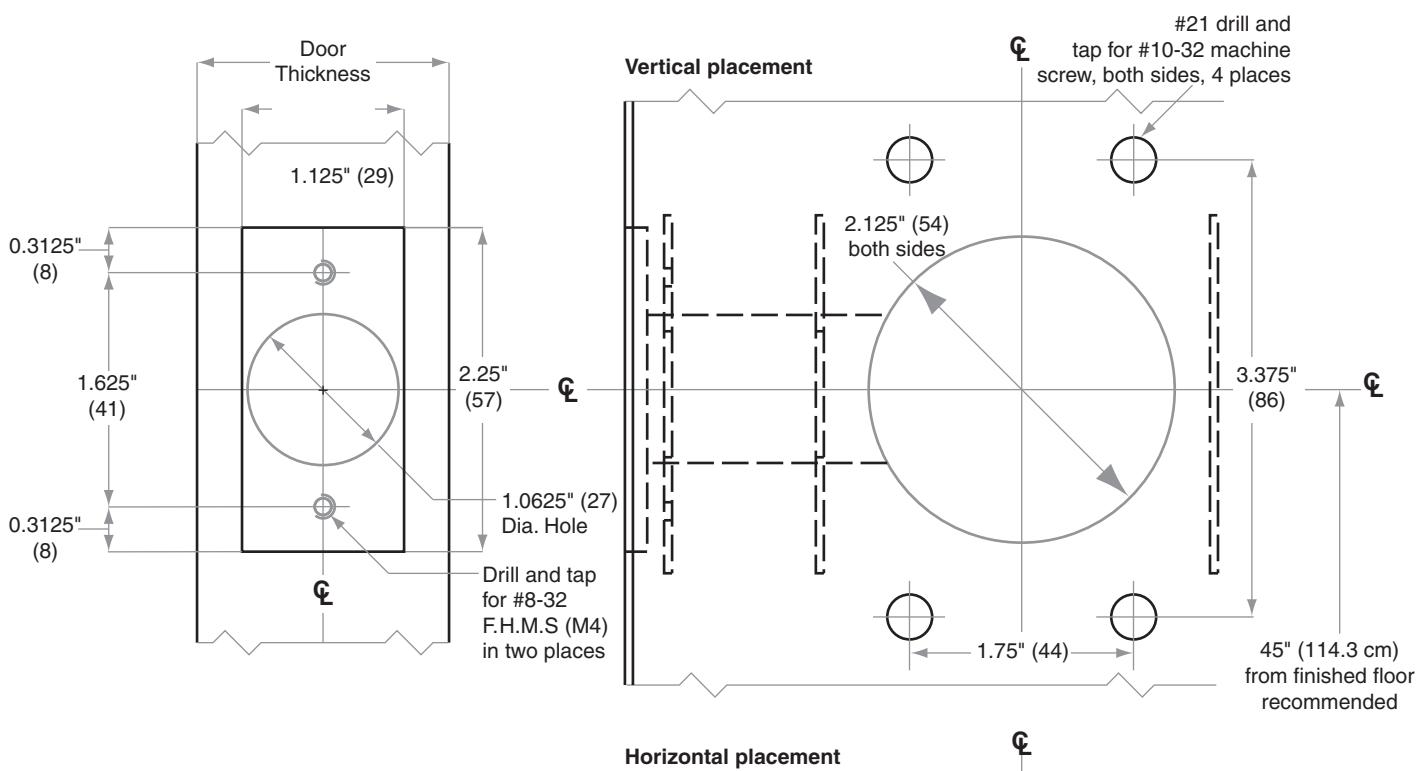

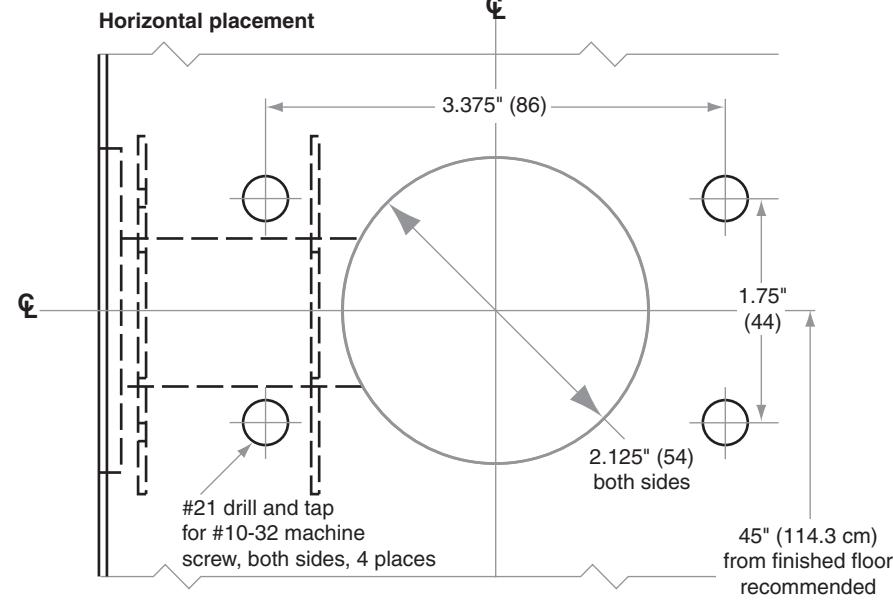

Door preparation template
