Schlage HL6 Mortise Hospital Latch Vertical Door Prep Metal Template_113699

HL-Series Hospital Latch

Models HL6-9000 Mortise

Door Type: Metal, Flat or Beveled

Door Thickness: 1¾" (44 mm) Faceplate: Square Corner, 11⁄8" (29 mm) wide

Backsets: 2¾" (70 mm)

Dimensions shown in parentheses () are in millimeters.

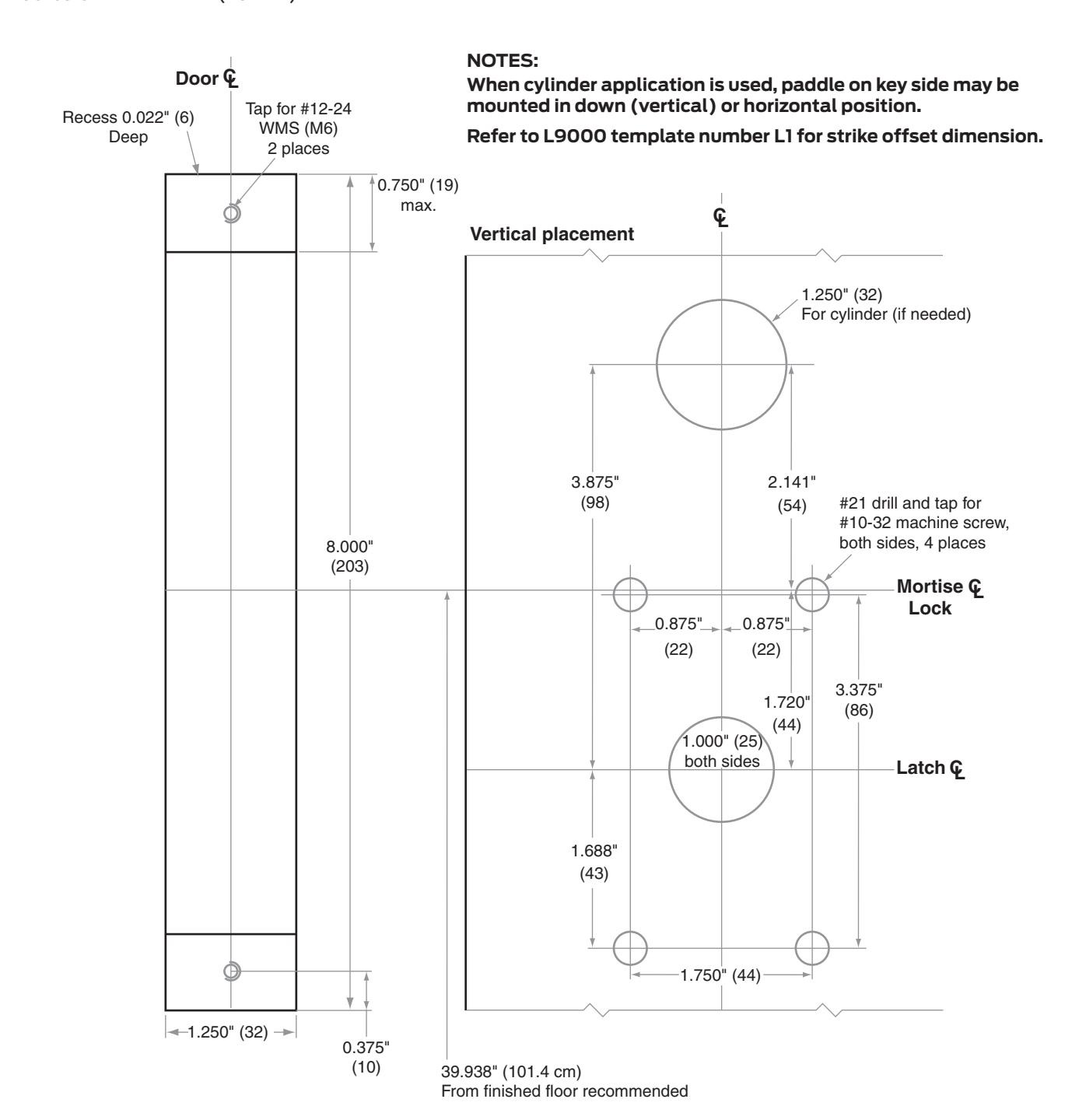

Door preparation template

HL104
