HL-Series Hospital Latch
Model HL6-9000 Mortise
Door Type: Metal, Flat or Beveled
Faceplate: Square Corner, 11⁄8" (29 mm) wide
Backsets: 2¾" (70 mm)
Door Thickness: 1¾" (44 mm)
Dimensions shown in parentheses () are in millimeters.

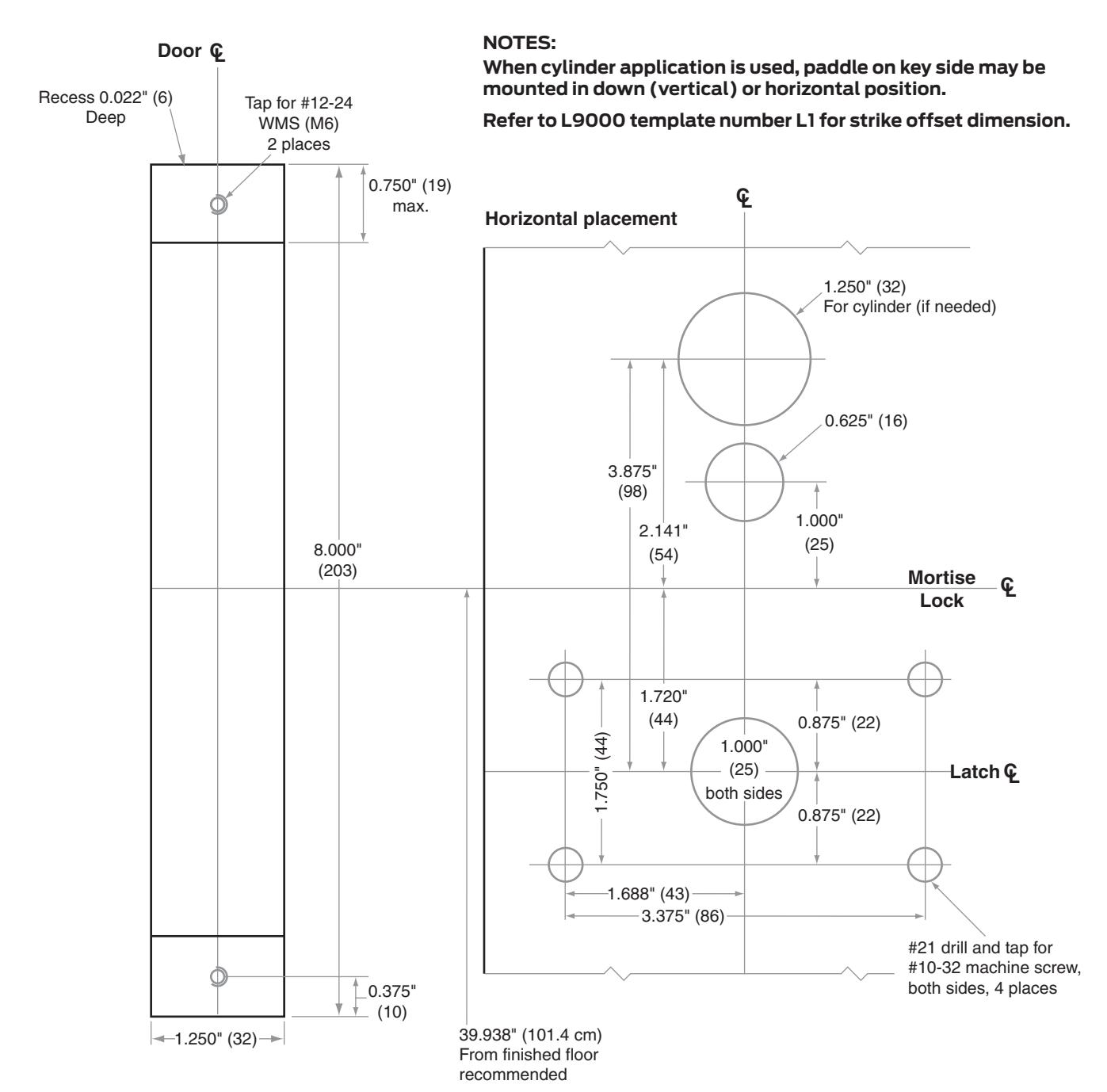

Door preparation template
