Schlage HL6 Mortise Bent Tab Strike Jamb Prep Metal Template_113713
Open the original PDF document
View PDF

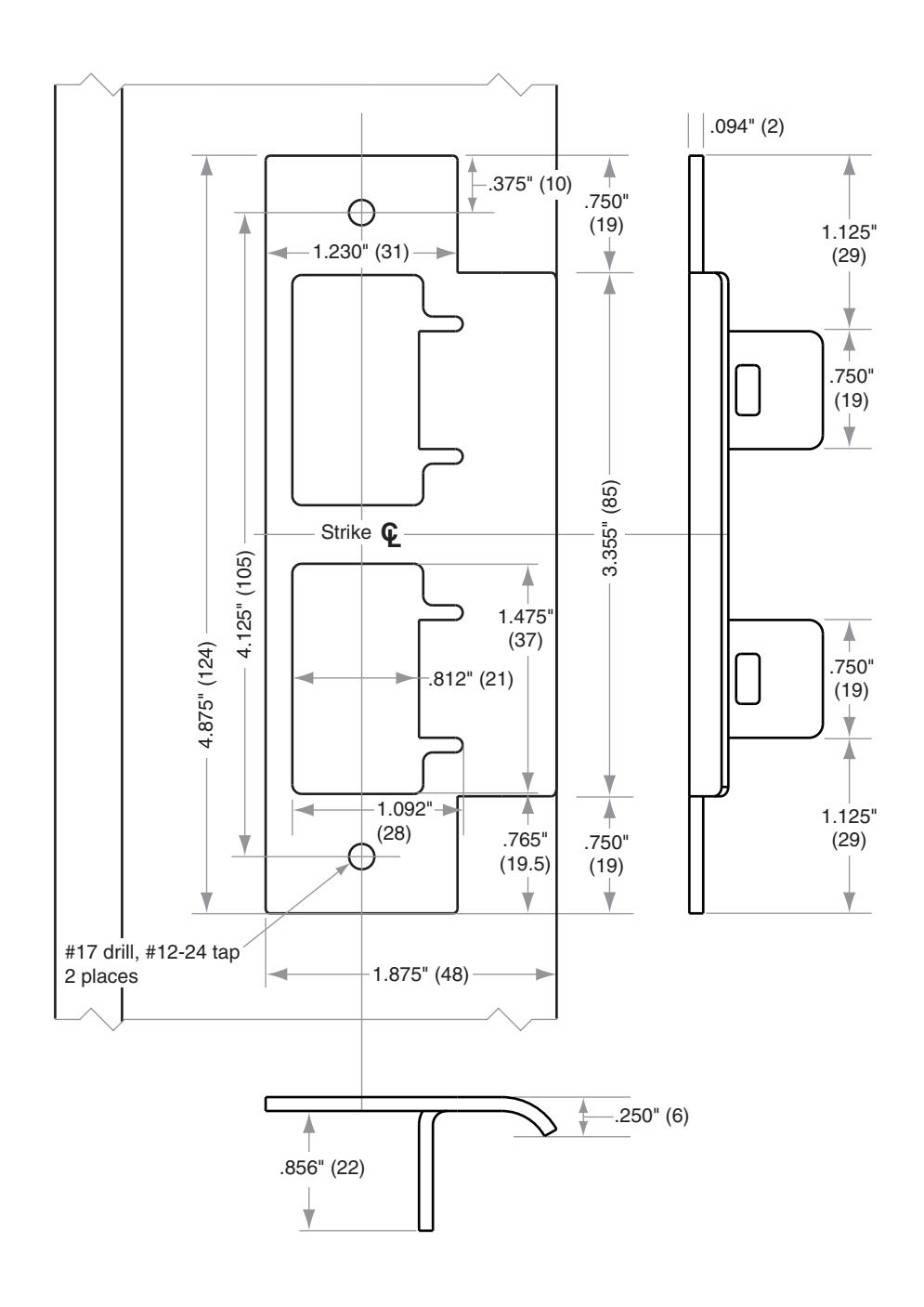

Strike
Jamb Type: Metal
Style: Bent Tab 4 7/8" Square corner
Optional for: HL6-9000
Dimensions shown in parentheses () are in millimeters.
Door preparation template
